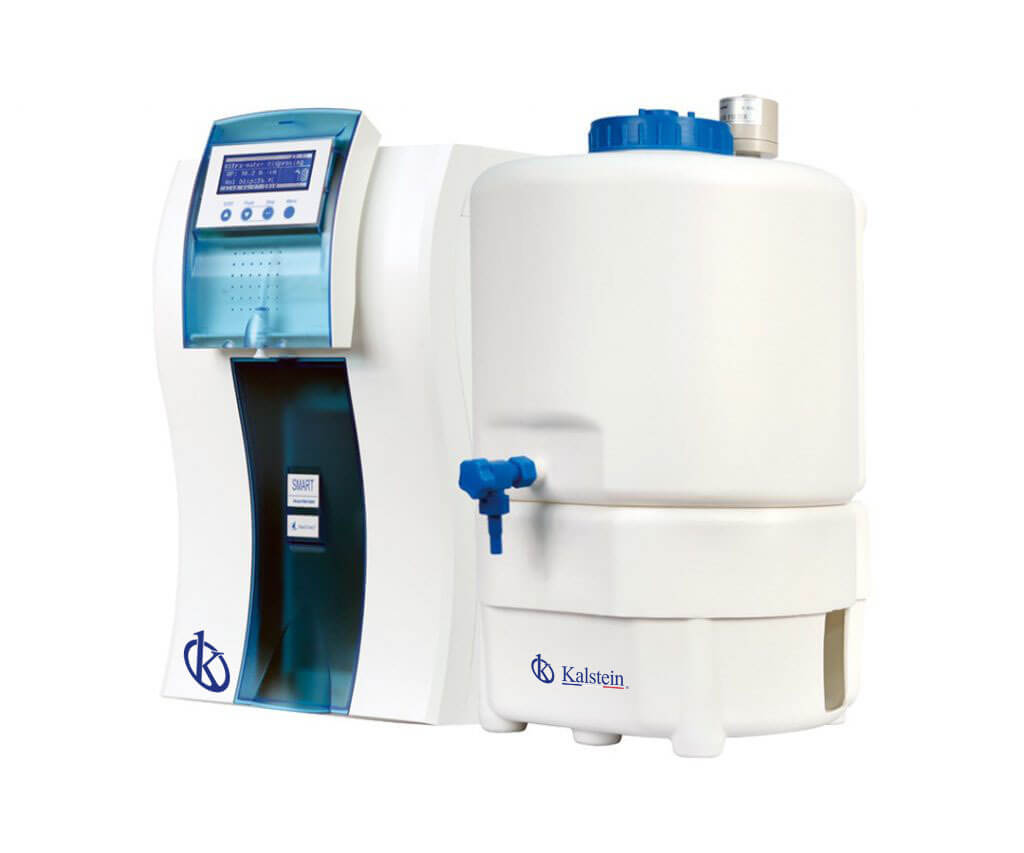

Common Errors and Troubleshooting by Symptoms for the YR53-1 Ultrapure Water System
The YR53-1 Ultrapure Water System is an essential tool for laboratories, providing high-quality water for various applications, including atomic absorption/emission spectroscopy, mass spectrometry, and environmental monitoring. However, like any complex system, it can encounter errors that may disrupt its functionality. This guide focuses on common errors associated with the YR53-1, categorized by symptoms, to help operators troubleshoot effectively.
Technical Specifications of the YR53-1
| Specification | Details |
|---|---|
| Model | YR53-1 |
| Input Water Source | Urban tap water, inlet pressure: 0.15-0.5MPa, water temperature 5-40°C |
| Water Flow Rate | 1.5-2L/min |
| Water Production Rate | 15 L/H |
| Water Outputs | RO water and UP water |
| RO Water Quality | Desalination rate as high as 95-99% (with new RO membrane) |
| UP Water Quality | Resistivity 18.25MΩ.cm@25°C, TOC: <3ppb |
| Power Supply | 220V/50Hz; 48-72W |
| Dimensions (mm) | L x W x H: 312 x 475 x 475 |
Common Symptoms and Troubleshooting
Power Issues: Equipment Does Not Turn On
If the YR53-1 does not power on, check the following:
- Ensure that the power supply is properly connected and functioning.
- Check for any blown fuses or tripped breakers in the electrical circuit.
- Inspect the power cord for any visible damage.
Error Code E-03: Water Quality Error
Error code E-03 indicates a problem with water quality measurement. To troubleshoot:
- Verify the calibration of the water quality sensor.
- Check if the filters are clogged or due for replacement.
- Ensure that the inlet water source meets the required parameters.
Inconsistent Readings from the TDS Pen
Inconsistent readings can be caused by:
- Improper calibration of the TDS pen.
- Faulty probes that need replacement.
- Environmental factors affecting sensor performance.
Symptom to Cause and Solution Matrix
| Symptom | Probable Cause | Recommended Solution |
|---|---|---|
| Equipment does not power on | Faulty power connection | Check connections and replace fuses if necessary |
| Error code E-03 | Clogged filter | Replace the filter and recalibrate |
| Inconsistent TDS readings | Faulty TDS pen | Calibrate or replace the TDS pen |
Frequently Asked Questions
What should I do if the YR53-1 displays an error code?
Refer to the troubleshooting section of your manual for a list of error codes and recommended actions. Common errors can often be resolved by checking power connections or calibrating sensors.
How often do I need to replace the filters in the YR53-1?
Filter replacement intervals can vary based on usage. Regular monitoring of water quality and system performance will guide you on when to replace. Generally, filters should be checked quarterly.
What is the ideal operating temperature for the YR53-1?
The ideal operating temperature for the YR53-1 is within the range of 5-40°C. Operating outside this range can affect the performance and reliability of the system.
How can I extend the lifespan of the YR53-1?
Proper maintenance, regular calibration, and timely replacement of consumables are key to extending the lifespan of the YR53-1. Follow the recommended service schedule outlined in the manual.
Can I connect the YR53-1 to a mobile app for remote monitoring?
Yes, the YR53-1 is equipped with an optional WIFI interface for remote monitoring via a mobile application, enhancing the user experience.
What are the safety features of the YR53-1?
The YR53-1 includes several safety features such as water pressure protection, alarms for system failures, and user password protection to ensure operational safety.
Conclusion
The YR53-1 Ultrapure Water System is a vital asset in any laboratory setting, and understanding how to troubleshoot common errors is essential for maintaining its functionality. By following the guidance provided in this article, operators can ensure optimal performance and minimize downtime.
