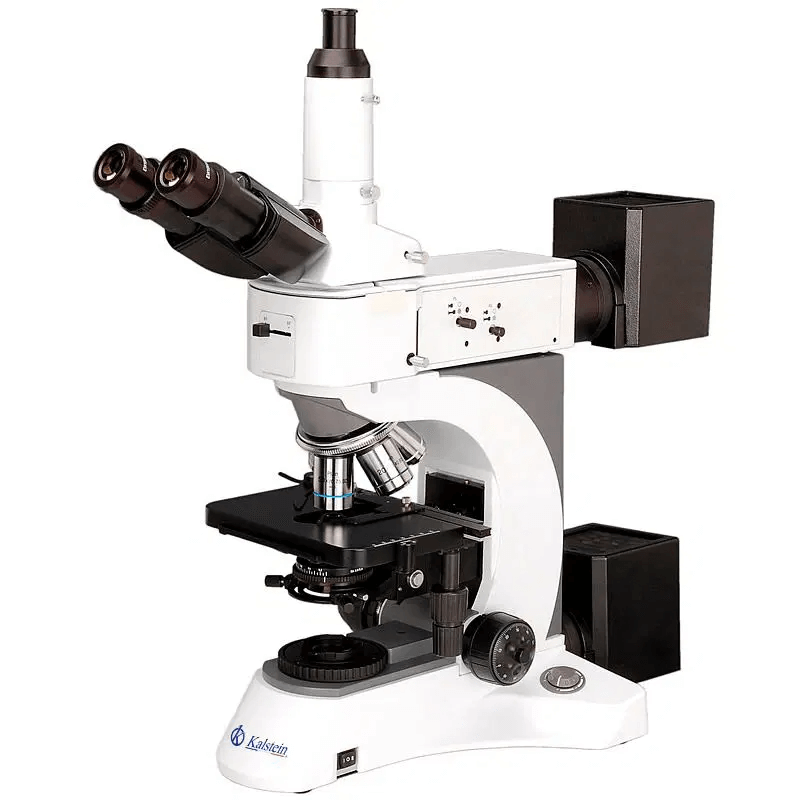

Customization and Optional Accessories for the YR0252 Microscope
The YR0252 microscope, known for its trinocular head and advanced optical system, offers significant opportunities for customization and enhancement through optional accessories. Understanding these options allows users to adapt the microscope to their specific needs, whether in clinical, educational, or industrial settings. This article explores the various accessories that can be integrated with the YR0252, focusing on how these customizations can optimize performance.
Technical Data Table for YR0252
| Specification | Details |
|---|---|
| Model | YR0252 |
| Optical System | Infinity optical system, bright field/dark field, polarization |
| Head | Seidentopf trinocular head, inclined at 30°, interpupillary distance 48-75 mm |
| Eyepiece | Extra wide field eyepiece EW10x/22 mm, 30 mm diameter eyepiece tube |
| Objective | Infinity Plan acromatic objectives from 5x to 100x |
| Illumination | 24 V 100 W halogen illumination, adjustable brightness |
Optional Accessories for the YR0252
The YR0252 model supports a variety of optional accessories that significantly enhance its functionality. These accessories cater to specific applications, providing users with the ability to conduct more specialized observations and analyses.
1. Acromatic Objectives
The optional infinity plan acromatic objectives include the following:
- 40x/0.6 (BF/DF) - YR0252-op1
- 50x/0.75 (BF/DF) - YR0252-op2
- 100x/1.25 (BF/DF) - YR0252-op3
These objectives enhance the YR0252’s imaging capabilities, allowing for high-resolution samples across various fields.
2. Polarizers and Analyzers
For users requiring polarized light microscopy, the YR0252 can be equipped with:
- Integrated polarizer and analyzer for reflective illumination - YR0252-op4
This accessory is essential for examining birefringent materials and conducting material stress analyses.
3. Neutral Density Filters
To control light intensity and reduce glare, users can opt for neutral density filters. Available options include:
- ND25 Filter - YR0252-op5
- ND6 Filter - YR0252-op6
These filters are particularly useful in bright field imaging and photomicrography.
4. Camera Adapters
For digital imaging and documentation, the YR0252 offers several camera adapters:
- Photo adapter for Nikon or Canon SLR - YR0252-op7
- C mount 1.0x - YR0252-op8
- C mount 0.5x - YR0252-op9
These adapters facilitate easy connection of cameras for capturing high-quality images of specimens.
5. Sample Holders
Sample holders ensure that specimens are stable during observation and can include:
- Sample pressing holder - YR0252-op10
This accessory is particularly useful when working with fragile or small samples.
Advanced Configurations for Enhanced Performance
When customizing the YR0252 microscope, it is important to consider how certain configurations can enhance its overall performance.
1. Modifying the Illumination System
The YR0252's illumination can be upgraded based on user needs. Options for illumination include:
- Köhler illumination: This provides even lighting across the field of view, which is ideal for both photomicrography and detailed specimen examination.
- LED illumination: Users can convert to LED systems for longer lifespan and lower heat output, making it safer for sensitive samples.
2. Focusing Mechanism Adjustments
Users can opt for fine adjustments in the focusing mechanism to achieve greater precision:
- Coaxial coarse and fine focusing can be calibrated for optimal use cases, especially in high magnification scenarios.
Frequently Asked Questions
What are the benefits of using optional objectives with the YR0252 microscope?
Using optional objectives with the YR0252 microscope allows for enhanced versatility in imaging and analysis. Different objectives provide various magnifications and resolutions, enabling users to tailor their observations to specific specimen types and examination needs. The infinity plan design also ensures improved image flatness and color correction.
How do I install the polarizer and analyzer on the YR0252?
To install the integrated polarizer and analyzer, first ensure that the microscope is turned off. Attach the polarizer to the light source and align the analyzer in the optical path. Adjust the positions as necessary to achieve the desired polarization effect. Detailed instructions can usually be found in the user manual.
Can the YR0252 be used for digital photomicrography?
Yes, the YR0252 is designed for digital photomicrography. Users can attach compatible camera adapters to integrate a digital camera. This allows for high-quality image capture, which is essential for documentation and presentations. Ensure to select the appropriate adapter based on your camera model.
What is the maximum sample height that the YR0252 can accommodate?
The YR0252 has a maximum sample height of 30 mm. It is important to consider this limitation when preparing specimens to ensure successful observation without obstruction.
How do I maintain the optional accessories for the YR0252?
Regular maintenance of optional accessories, such as lenses and filters, is essential for optimal performance. Clean optical components with appropriate lens cleaning solutions and microfiber cloths. Additionally, check for any mechanical wear on camera adapters or focusing mechanisms and replace as necessary to maintain precision and functionality.
What are the recommended operating conditions for the YR0252?
For the YR0252 microscope, it is essential to operate within a temperature range of 20°C to 25°C and maintain humidity levels between 40% and 60% to ensure optimal performance. Additionally, proper ventilation and vibration-free surfaces are critical to achieving accurate measurements and observations.
