Understanding the Environmental Conditions and Installation Requirements of the YR05323 Sterilizer

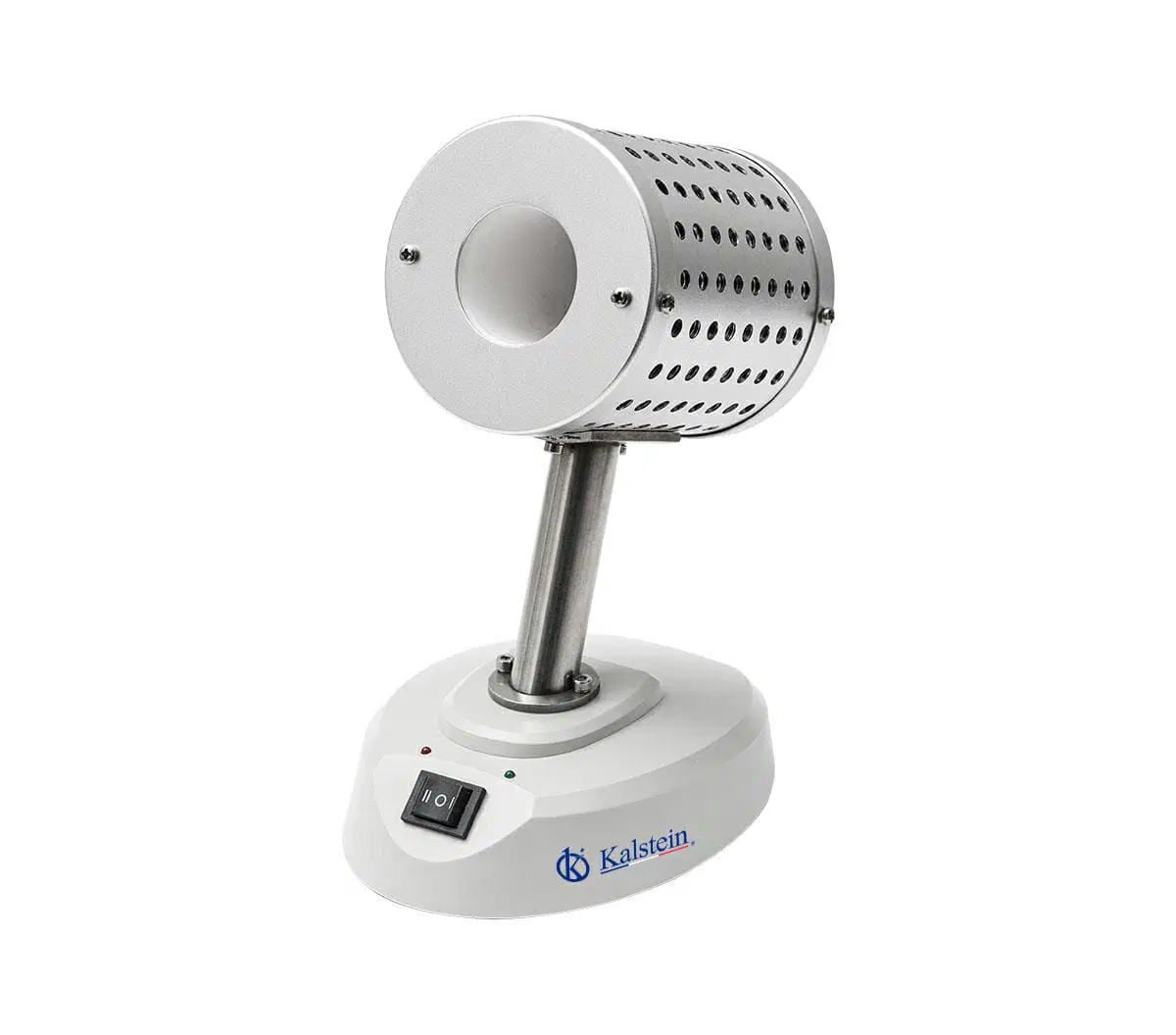

The Bacti-Cinerator Sterilizer YR05323 is a specialized device used for the incineration and disinfection of small tools and vessels such as inoculation loops, inoculating needles, laboratory tweezers, and pipette tips. Understanding the environmental conditions and site installation requirements is crucial for ensuring optimal performance and longevity of the sterilizer. In this article, we will delve into the specific conditions needed for the YR05323 to operate effectively.
Technical Specifications of the YR05323 Sterilizer
| Specification | Details |
|---|---|
| Model | YR05323 |
| High Central Temperature | 825℃±50℃ |
| Standby Temperature | 480℃ |
| Heater Head Angle | 21° |
| Max Sample Diameter | φ35mm |
| Heater Head Length | 100 mm |
| Power | 400W |
| Weight | 1.4kg |
| Dimensions (W×D×H) | 105×140×200(mm) |
Site Requirements for Optimal Operation
The YR05323 sterilizer requires specific environmental conditions for effective operation. Here are the key site requirements:
- Temperature Range: The sterilizer should be operated in an environment with a temperature range of 15℃ to 30℃. Extreme cold or heat can affect performance and safety.
- Humidity Levels: Maintain a humidity level between 30% and 70%. Excessive humidity can lead to rust and malfunction, while too little can impact sterilization efficiency.
- Power Supply: The unit requires a stable power supply of 220V ± 10% at 50Hz. Fluctuations in voltage can cause premature failure or inaccurate readings.
- Ventilation: Ensure adequate ventilation to prevent overheating. The unit should be placed in an area with good airflow.
- Clearance Space: Maintain a clearance of at least 15 cm on all sides of the sterilizer to ensure proper airflow and accessibility.
Installation Guidelines for the YR05323 Sterilizer
Proper installation is essential for the effective performance of the YR05323 sterilizer. The following steps outline best practices for installation:
- Unboxing: Carefully unbox the sterilizer and inspect for any shipping damage. Ensure that all components are included.
- Location Selection: Choose a stable and level surface for installation. Avoid locations near flammable materials or high-traffic areas.
- Power Connection: Connect the sterilizer to the power supply, ensuring that the voltage matches the specifications.
- Initial Calibration: Before use, run a calibration to ensure the temperature settings are accurate. This step is crucial for consistent performance.
- Test Run: Conduct a test run without any samples to verify operation and heating performance.
Common Installation Issues and Solutions
During installation, operators may encounter various issues. Here are some common problems and their solutions:
| Issue | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Power supply issue | Check power connection and confirm voltage levels. |
| Temperature not reaching specified levels | Calibration not completed | Perform calibration as per user manual. |
| Error codes displayed | Internal malfunction | Refer to troubleshooting guide for error code specifics. |
| Overheating | Insufficient ventilation | Ensure proper airflow around the unit. |
Environmental Sustainability Considerations
With growing concerns over environmental impacts, the use of the YR05323 sterilizer also needs to consider sustainability:
- Energy Efficiency: The sterilizer is designed to minimize energy consumption while maintaining optimal performance.
- Waste Management: Implement procedures for the safe disposal of ash and residues produced during sterilization.
- Material Durability: The construction of the YR05323 is aimed at longevity, reducing the need for replacements and thereby minimizing waste.
Frequently Asked Questions
What is the recommended operating temperature range for the YR05323 sterilizer?
The YR05323 sterilizer should operate within a temperature range of 15℃ to 30℃ to ensure optimal performance and safety.
How can I ensure proper ventilation for the YR05323?
Place the sterilizer in an area with good airflow and maintain a clearance of at least 15 cm on all sides to prevent overheating.
What power supply is required for the YR05323 sterilizer?
The YR05323 requires a stable power supply of 220V ± 10% at 50Hz. Fluctuations in power can affect performance.
What should I do if the sterilizer displays an error code?
Refer to the troubleshooting guide specific to the error code and follow the recommended steps to resolve the issue.
How often should the YR05323 be calibrated?
Calibration should be performed before the first use and periodically thereafter, especially after maintenance or repairs.
What environmental considerations should be taken into account when using the YR05323 sterilizer?
Consider energy efficiency, waste management practices for ash disposal, and the durability of materials to minimize environmental impact.
