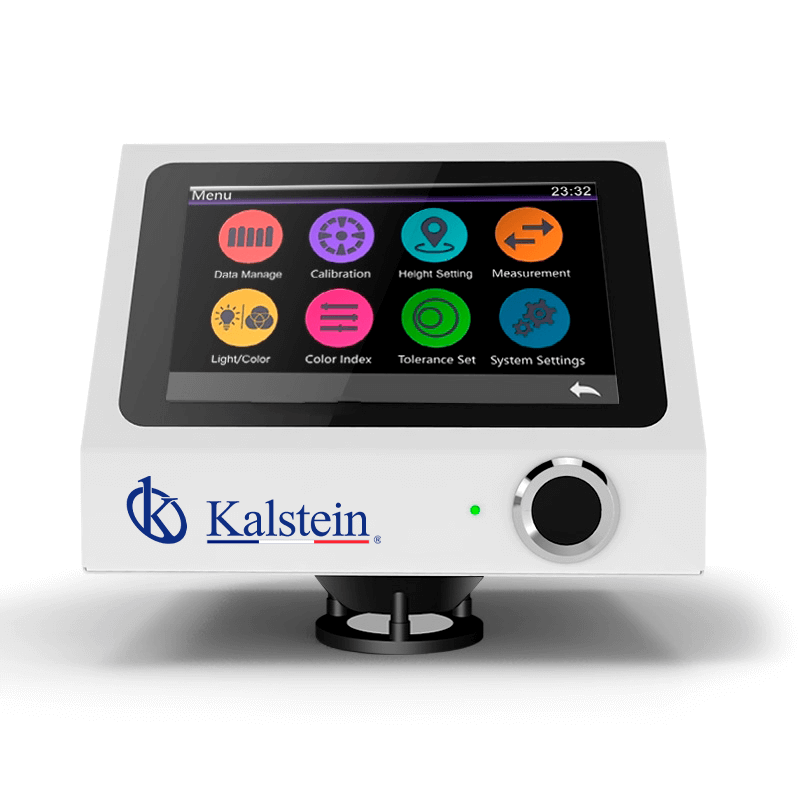

Environmental Conditions and Installation Requirements for the YR05480 Spectrophotometer
The YR05480 Spectrophotometer is designed to provide precise color measurement through a contactless operation, ideal for various applications in laboratory settings. This article delves into the essential environmental conditions and installation requirements for the YR05480, ensuring users maintain optimal performance and accuracy.
Understanding the YR05480 Spectrophotometer
The YR05480 is a state-of-the-art contactless desktop spectrophotometer incorporating advanced technology to deliver reliable and accurate color measurements. With its D/8 geometry and high-resolution CMOS sensor, it is crucial to adhere to specific environmental and installation standards to maximize its capabilities.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | YR05480 |
| Geometric Optical Arrangement | D/8 (Diffuse illumination, 8° reception) |
| Sensor | 256-pixel dual matrix CMOS image sensor |
| Wavelength Range | 400-700 nm, with 10 nm output |
| Measured Reflectance Range | 0-200% |
| Measurement Distance | 3.0 mm (±0.2 mm) |
| Operating Environment | 0-40 °C, 0-85% RH (non-condensing) |
| Storage Environment | -20 to 50 °C, 0-85% RH (non-condensing) |
Installation Requirements
Proper installation is critical for the YR05480 Spectrophotometer to function correctly. Here are the main installation requirements:
- Location: Place the spectrophotometer on a stable surface, avoiding areas with excessive vibration or movements.
- Ventilation: Ensure adequate airflow around the device to prevent overheating during operation.
- Power Supply: Use an AC 24V power supply with a current rating of 3A. Ensure the power outlet is grounded.
- Clearance: Maintain a minimum clearance of 30 cm around the spectrophotometer for easy access and to optimize ventilation.
- Temperature and Humidity Control: Keep the operational area within the specified range of 0-40 °C and 0-85% RH.
Environmental Conditions for Optimal Performance
The YR05480 performs best under specific environmental conditions. Here are some critical factors to consider:
- Temperature: The device operates effectively in a temperature range of 0 to 40 °C. Extreme temperatures can affect the sensor's performance and accuracy.
- Humidity: The relative humidity should be maintained between 0% to 85% without condensation. High humidity can lead to electrical malfunctions.
- Altitude: The spectrophotometer is designed to operate at altitudes below 2000 meters. Higher altitudes may affect readings due to reduced atmospheric pressure.
Common Setup Mistakes to Avoid
Common errors during the installation or setup of the YR05480 can lead to performance issues. Here are several mistakes to avoid:
- Improper Location: Placing the spectrophotometer in areas with excessive vibration or direct sunlight can adversely affect measurements.
- Inadequate Power Supply: Using an ungrounded or unstable power supply can lead to equipment malfunctions or damage.
- Ignoring Calibration: Failing to perform the initial calibration can result in inaccurate readings. Always calibrate before first use.
Site-Preparation Checklist
| Preparation Step | Details |
|---|---|
| Evaluate Location | Confirm stability, absence of vibrations, and avoidance of direct sunlight. |
| Check Power Supply | Ensure a grounded AC 24V, 3A power outlet is available. |
| Temperature and Humidity | Verify that the installation area meets the operational temperature and humidity specifications. |
| Clearances | Ensure at least 30 cm clearance around the spectrophotometer. |
| Calibration Setup | Prepare for initial calibration with standard calibration plates. |
Frequently Asked Questions
What environmental conditions are necessary for the optimal performance of the YR05480?
The YR05480 performs best in environments with temperatures between 0-40 °C and relative humidity levels of 0-85% without condensation. Altitude should be below 2000 meters for accurate readings.
How do I properly install the YR05480 Spectrophotometer?
To install the YR05480, select a stable surface away from vibrations or direct sunlight, ensure a grounded power source, maintain necessary clearances, and verify that temperature and humidity conditions are within specifications.
What common mistakes should I avoid when setting up the YR05480?
Common mistakes include placing the spectrophotometer in a location with vibrations or sunlight, using an inadequate power supply, and neglecting initial calibration. Ensure each step of the installation process is carefully followed.
How can I ensure accurate calibration of the YR05480?
Accurate calibration of the YR05480 involves using standard calibration plates and performing the calibration procedure as outlined in the user manual. It is essential to perform this before the first use.
What maintenance is required for the YR05480?
Regular maintenance involves ensuring the cleanliness of the sensor, checking for software updates, and performing periodic recalibration based on the usage frequency to ensure continued accuracy.
Can the YR05480 be used in extreme environments?
No, the YR05480 is not designed for extreme environments. Operating outside the specified temperature and humidity ranges can lead to inaccurate measurements and potential damage to the device.
Where can I request a quote for the YR05480?
You can request a quote for the YR05480 by contacting our sales department through the official channels.
