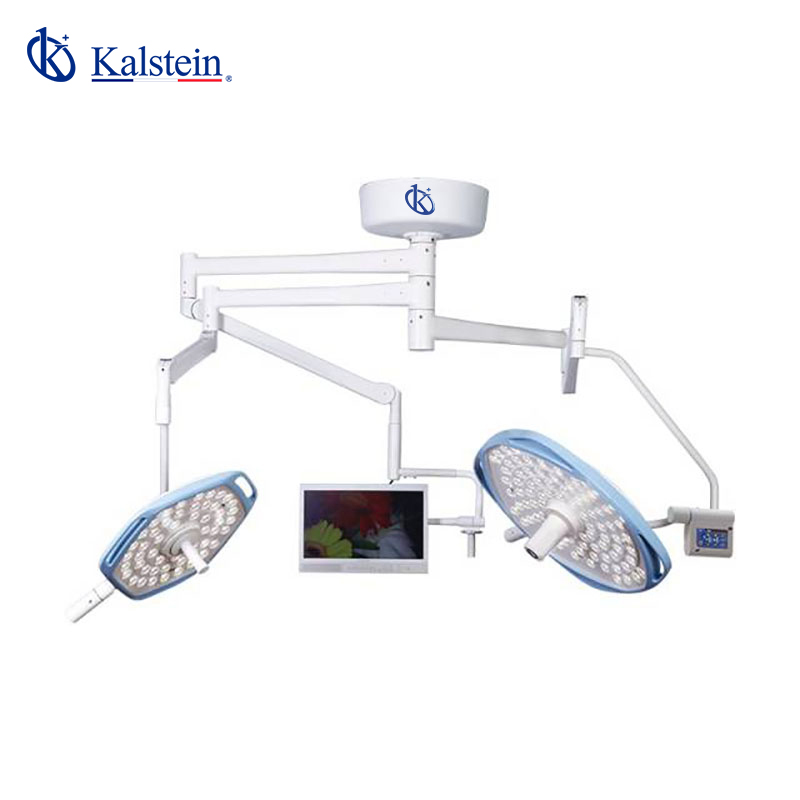

Installation and Commissioning Guide for the YR02113 LED Surgical Light
The YR02113 LED Surgical Light is an advanced lighting solution specifically designed for surgical environments, offering exceptional illumination and flexibility. This guide provides a thorough overview of the installation and commissioning process for the YR02113, ensuring optimal performance and reliability.
Overview of the YR02113 LED Surgical Light
The YR02113 model incorporates state-of-the-art Osram LED bulbs that promise a lifespan exceeding 50,000 hours. It features a sterile handle for light control, a maximum illumination button, and adjustable color temperature options. This versatility makes it ideal for various surgical applications.
Technical Specifications of the YR02113
| Specification | Value |
|---|---|
| Model | YR02113 |
| Intensity at 1m (Lux) | 160000/160000 |
| Color Temperature (K) | 4500±500 |
| Color Rendering Index (Ra) | ≥97 |
| Field Diameter (mm) | 180-300 |
| Illumination Depth (L1+L2) (mm) | >1000 |
| Intensity Control | 10%-100% |
| Type of Intensity Control | Control Panel |
| Type of Field Focusing Control | Sterilizable Handle |
| Number of LEDs | 176 |
| Lamp Lifetime (h) | 50000h |
| Bulb Rated Power | 3.2V/1W |
| Voltage Supply | AC110-240V 50/60Hz |
| Minimum Installation Height (mm) | 2600 |
Unboxing and Initial Setup
Upon receiving your YR02113 surgical light, begin with an unboxing checklist to ensure all components are present. The package should include the light unit, mounting hardware, user manual, and any additional accessories.
To set up the light:
- Identify the installation location, ensuring it meets the minimum height requirement of 2600 mm.
- Gather tools such as a drill, level, and screwdriver for assembly.
- Follow the mounting instructions to secure the light fixture to the ceiling or wall.
Power-Up Sequence and Calibration
After installation, proceed with the power-up sequence. Connect the power supply to AC110-240V and ensure the connections are secure. Turn on the light using the control panel, and observe the following steps for calibration:
- Set the intensity to the maximum level and adjust the color temperature as per the requirements of the surgical environment.
- Perform a light field adjustment to ensure it provides the necessary illumination depth.
Common Setup Mistakes and Troubleshooting
While installing the YR02113, users may encounter several common mistakes:
- Incorrect Mounting Height: Ensure the light is mounted at the correct height of 2600 mm for optimal performance.
- Improper Power Connection: Verify that the power supply is compatible and securely connected.
- Neglecting Calibration: Always calibrate the light after installation to ensure accuracy.
Symptom Diagnosis Table
| Symptom | Possible Cause | Solution |
|---|---|---|
| Light Does Not Power On | No power supply | Check power connections and source. |
| Flickering Light | Fluctuating voltage | Use a voltage stabilizer. |
| Insufficient Brightness | Improper intensity setting | Adjust the intensity settings on the control panel. |
Frequently Asked Questions
What is the lifespan of the YR02113 LED bulbs?
The YR02113 LED bulbs have an impressive lifespan of over 50,000 hours, ensuring long-term reliability and minimal replacement.
How can I adjust the color temperature on the YR02113?
The YR02113 features an optional adjustable color temperature setting that can be modified through the control panel to suit specific surgical needs.
What type of maintenance does the YR02113 require?
Routine maintenance includes checking electrical connections, cleaning the light fixture, and ensuring the intensity settings are functioning correctly.
Can the YR02113 be used in different surgical environments?
Yes, the YR02113 is versatile and can be adapted for use in various surgical environments, from hospitals to outpatient surgery centers.
What installation height is recommended for the YR02113?
The recommended minimum installation height for the YR02113 is 2600 mm to ensure proper light coverage during surgical procedures.
Is additional training required to operate the YR02113?
While basic operation is straightforward, staff may benefit from additional training to maximize the features of the YR02113.
Conclusion
Proper installation and commissioning of the YR02113 LED Surgical Light are essential for achieving optimal performance in surgical settings. By following this guide, users can ensure that the surgical light operates efficiently and effectively, enhancing the overall surgical experience.
