Installation and Commissioning Guide for the YR02194 Infant Bilirubin Phototherapy Unit
The YR02194 Infant Bilirubin Phototherapy Unit is a highly efficient device designed for the treatment of neonatal jaundice. This guide provides a thorough overview of the installation and commissioning process, ensuring optimal use and functionality of the unit.
Understanding the YR02194 Model

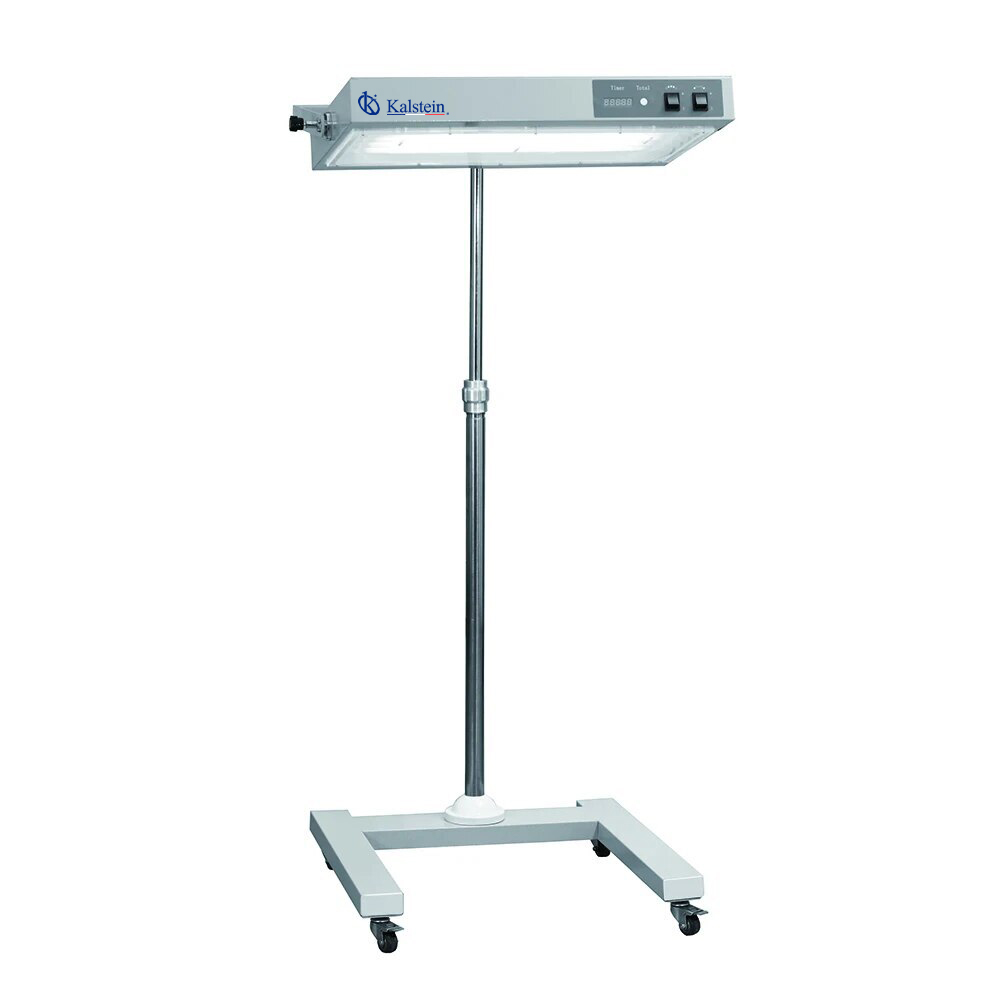

The YR02194 model is mobile and utilizes four blue fluorescent tube bulbs. It features a digital LED timer that displays the therapy duration and total time, making it user-friendly and efficient for clinical settings.
Technical Specifications
| Specification | Detail |
|---|---|
| Model | YR02194 |
| Input Power | <150VA |
| Light Source | Blue Tube |
| Light Source Effective Life | 1000 hours |
| Wavelength | 400-550 nm |
| Irradiance Treatment Distance | 10~500px |
| Effective Area | 1125px×600px |
| Infrared Radiation in Effective Area | ≤10mW/cm2 (760nm<λ≤1400nm) |
| Ultraviolet Radiation in Effective Area | ≤1.0×10-5mW/cm2 (180nm<λ≤400nm) |
| Operating Noise | ≤55 dB(A) (ambient noise is lower than 40dB(A)) |
| Basic Performance | the equipment total irradiance (Ebi) ≥500μW/cm2 |
| Adjust Angle | 30°, 60°, 90° |
| Adjust Height | 1100mm~1500mm |
Unboxing and Inspection Checklist
Before installation, ensure that the following items are included in the package:
- YR02194 Phototherapy Unit
- Four Blue Fluorescent Tubes
- User Manual
- Power Cable
- Safety Instruction Sheet
Inspect the unit for any visible damage during shipping. If any parts are missing or damaged, contact your supplier immediately.
Installation Steps
To install the YR02194, follow these steps:
- Placement: Choose a location that is clean, dry, and well-ventilated. Ensure there is adequate space for adjusting the height and angle of the unit.
- Assembly: Assemble the phototherapy unit according to the user manual. Make sure that all screws are tightened properly.
- Bulb Installation: Install the four blue fluorescent bulbs securely in their respective sockets.
- Leveling: Use a level tool to ensure the unit is perfectly upright.
- Power Connection: Connect the power cable to the unit and plug it into a suitable electrical outlet.
Power-Up Sequence and First Calibration
Once the installation is complete, follow these steps for the power-up sequence:
- Press the power button to turn on the unit.
- Observe the LED display for any start-up error messages.
- Set the therapy duration using the digital timer.
- Verify the brightness of the bulbs and adjust as necessary.
- Perform a test run to ensure the unit is functioning properly.
Common Setup Mistakes and How to Avoid Them
During the installation and commissioning of the YR02194, some common mistakes can occur:
- Not leveling the unit can lead to uneven light distribution.
- Forgetting to securely install the bulbs can cause functionality issues.
- Neglecting to follow the power-up sequence may result in errors or malfunctions.
To avoid these pitfalls, carefully follow the installation manual and perform regular checks during setup.
Frequently Asked Questions
What is the effective life of the light source in the YR02194?
The effective life of the light source in the YR02194 is approximately 1000 hours. Regularly check and replace the bulbs as needed to maintain optimal performance.
How far should the unit be from the infant during treatment?
The irradiance treatment distance for the YR02194 is between 10 to 500 pixels, depending on the specific treatment requirements. Adjust the height accordingly during setup.
What should I do if the unit does not power on?
If the YR02194 does not power on, check that the power cable is securely connected and that the outlet is functional. Ensure there are no error messages displayed on the LED screen.
How do I adjust the angle and height of the YR02194?
The angle can be adjusted to 30°, 60°, or 90°, and the height can be adjusted between 1100mm and 1500mm. Use the adjustment knobs located on the unit to make these changes.
Are there any specific environmental conditions required for the YR02194?
The YR02194 should be operated in a clean, dry environment with proper ventilation. Avoid exposure to extreme temperatures and humidity levels that exceed standard conditions.
What maintenance does the YR02194 require?
Routine maintenance includes ensuring the bulbs are replaced after their effective life, cleaning the exterior surfaces, and checking the electrical connections regularly for any signs of wear.
Can the YR02194 be used in different clinical settings?
Yes, the YR02194 model is versatile and can be effectively used in various clinical settings, including neonatal units, pediatric clinics, and hospitals specializing in infant care.
