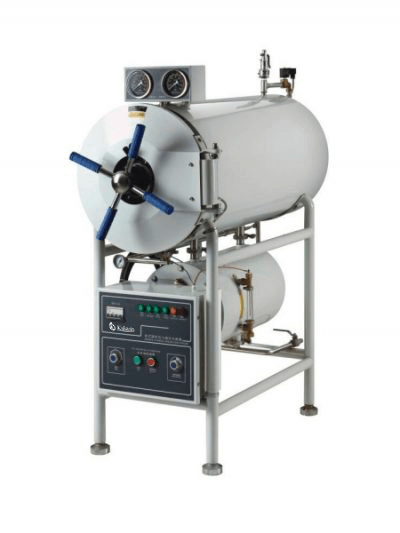

Installation and Commissioning Guide for the YR05635 Horizontal Cylindrical Pressure Steam Autoclave
The YR05635 Horizontal Cylindrical Pressure Steam Autoclave is a state-of-the-art device designed for reliable sterilization processes in various laboratory settings. Understanding its installation and commissioning is crucial for ensuring optimal performance and longevity of the equipment. This guide provides step-by-step instructions, technical specifications, and troubleshooting tips tailored specifically for the YR05635.
Understanding the YR05635 Autoclave
The YR05635 operates through a microprocessor-controlled system that automates water addition, heating, sterilization, drying, and exhaust processes. Its automatic drying function is particularly useful for drying dressings and other materials. Safety features include automatic shutdown during low water levels, pressure limit mechanisms, and a robust stainless steel construction that guarantees durability.
Technical Specifications of the YR05635
| Model | Working Pressure | Working Temperature | Temperature Range | Sterilization Time | Drying Time | Average Heat | Chamber Size | External Size | Power |
|---|---|---|---|---|---|---|---|---|---|
| YR05635 | 0.22Mpa | 134℃ | 105-134 ℃ | 0 – 60 minutes | 0 – 60 minutes | ≤± 1℃ | 150L / Ø440 × 1000 | 1400 × 600 × 1300 mm | 9kw |
Unboxing and Initial Setup
Upon receiving the YR05635, carefully unbox the equipment and ensure that all components are intact. The box should include the autoclave unit, power cable, user manual, and any optional accessories. It is essential to inspect for any damages that may have occurred during shipping.
Follow these steps for the initial setup:
- Place the autoclave on a stable, level surface to ensure proper operation.
- Ensure sufficient clearance around the unit for ventilation and maintenance access.
- Connect the power cable to a suitable power supply, ensuring compliance with local electrical standards.
- Fill the water tank of the autoclave before powering it on to prevent damage.
Power-Up Sequence and Calibration
After ensuring that the unit is properly installed, follow the power-up sequence as outlined in the user manual. This typically includes:
- Power on the autoclave using the main switch.
- Wait for the system to perform self-check diagnostics.
- Set the desired sterilization parameters through the control panel.
- Initiate a test run to verify that the system calibrates correctly.
During the first calibration, monitor the internal temperature and pressure closely, ensuring they reach the set points within the specified time frame.
Common Installation Mistakes
New users may encounter common pitfalls during installation and commissioning. Here are some mistakes to avoid:
- Inadequate Ventilation: Ensure there are no obstructions that could restrict airflow around the autoclave.
- Improper Water Levels: Always fill the water tank to the required level before initiating cycles.
- Ignoring Safety Features: Familiarize yourself with safety alarms and automatic shutdown mechanisms to prevent accidents.
Testing and Validation of First Measurements
Once the autoclave is powered on and calibrated, you should run a validation test using appropriate biological indicators. This process ensures that sterilization is effective. Follow these steps:
- Place biological indicators in the autoclave load.
- Run a complete sterilization cycle according to the set parameters.
- Post-cycle, incubate indicators as per the manufacturer's instructions to check for microbial growth.
Safety Features and Operation
The YR05635 is equipped with multiple safety features designed to protect the user and ensure effective sterilization:
- Low Water Protection: The system automatically shuts down if water levels fall below safe limits.
- Pressure Safety Valve: This valve activates to release excess pressure, preventing overpressure conditions.
- Door Interlock System: The door cannot be opened until pressure has safely dropped to zero, ensuring safe operation.
Always familiarize yourself with the safety features and operational guidelines to maximize safety.
Frequently Asked Questions
How do I troubleshoot if the YR05635 does not power on?
If the YR05635 does not power on, check the following: ensure that it is plugged in correctly, verify the power source, and check for any blown fuses. If issues persist, contact technical support for further assistance.
What should I do if I encounter error code E-03?
Error code E-03 indicates a low water level. Check the water tank and refill it to the required level. After refilling, the system should reset itself. If the error continues, consult the user manual for additional troubleshooting steps.
How can I ensure consistent sterilization results with the YR05635?
To achieve consistent results, ensure proper loading of the autoclave, regularly check calibration settings, and perform routine maintenance as recommended. It is also essential to use validated biological indicators to test the effectiveness of the sterilization cycles.
What are the recommended maintenance practices for the YR05635?
Regular maintenance should include cleaning the water tank, inspecting seals and gaskets, and verifying that safety features are functioning correctly. Consult the user manual for a detailed maintenance schedule and procedure.
Can the YR05635 be used for different types of sterilization loads?
Yes, the YR05635 is versatile and can accommodate various loads, including liquids, instruments, and wrapped items. However, it is crucial to configure the cycle parameters according to the type of materials being sterilized.
What should I do if the drying function does not operate correctly?
If the drying function is not working as expected, ensure that the air ventilation system is clear of obstructions. Check that the drying cycle parameters are correctly set, and consult the user manual for any specific troubleshooting steps related to the drying mechanism.
How can I request a quote for the YR05635?
You can request a quote for the YR05635 by contacting the sales department or visiting the relevant section of our online platform for quick and efficient service.
