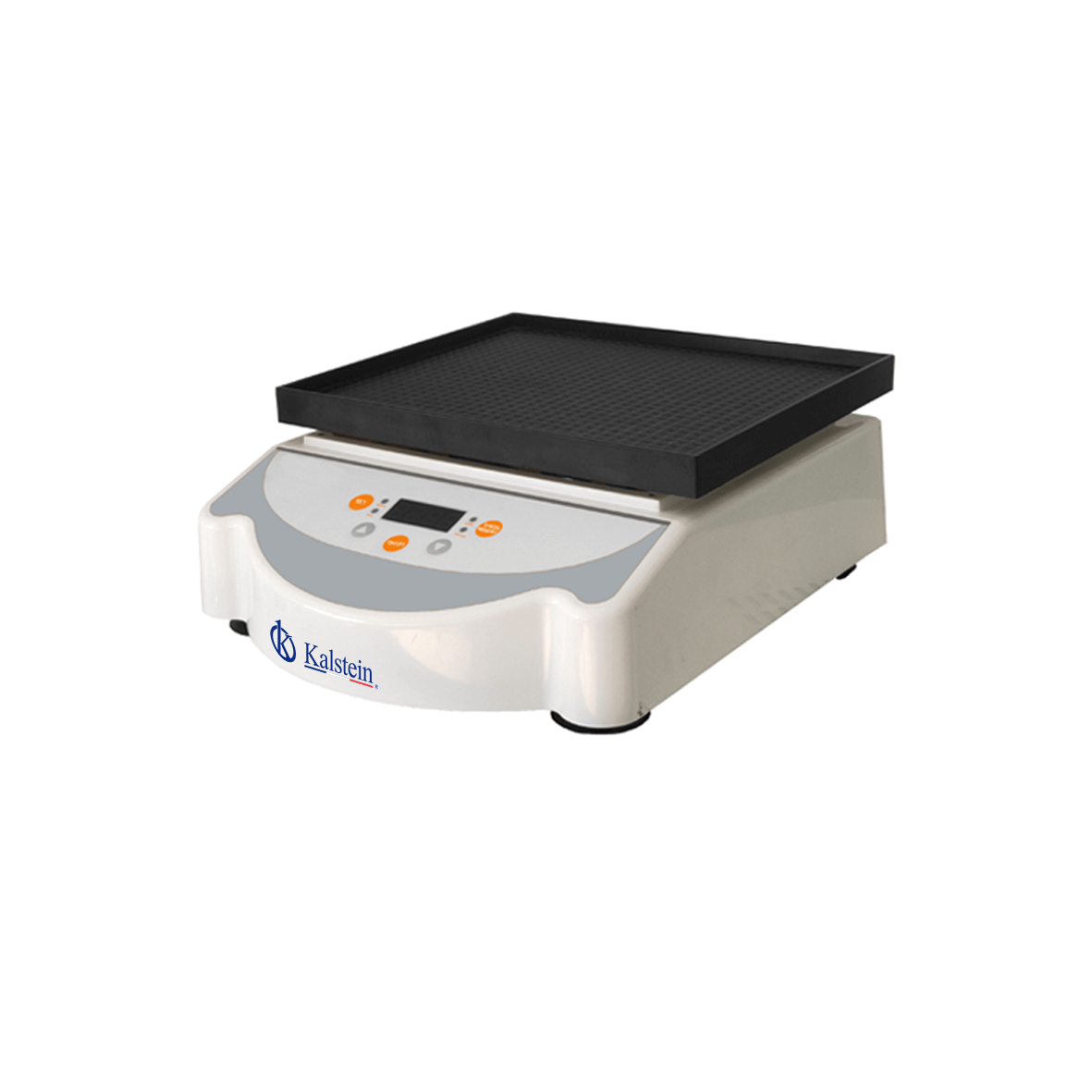

Installation and Commissioning Guide for the YR05766 Orbital Shaker
The YR05766 Orbital Shaker is an advanced laboratory device designed for efficient sample agitation and mixing. Understanding the process of installation and commissioning is crucial for maximizing the efficiency of this equipment. This guide provides detailed steps to ensure the YR05766 is set up correctly and operates reliably, making your laboratory tasks easier and more effective.
Overview of the YR05766 Orbital Shaker
The YR05766 Orbital Shaker employs uniaxial transmission shaking technology, ensuring smooth operation with minimal noise. It is equipped with a brushless DC motor that offers a long service life and requires no maintenance. The shaker features several protective functions, including an overcurrent protection mechanism that automatically shuts off power without affecting other devices.
Technical Specifications of the YR05766
| Specification | Details |
|---|---|
| Model | YR05766 |
| Shaking Mode | Orbital/Convolution |
| Control | PID Microcomputer Control |
| Monitor | LED Digital Display |
| Amplitude | Ø30 mm |
| Frequency (rpm/min) | 15-240 |
| Sensitivity (rpm) | ±2 |
| Timer | 0-99 hours 59 minutes |
| Tray Size (mm) | 320×265 |
| Number of Trays | 1 |
| Overall Size (mm) | 330x480x160 |
| Power | 30W |
| Power Supply | AC 90-260V, 50-60Hz |
| Ambient Temperature | -10 °C to 65 °C |
Unboxing and Initial Setup
Before operating the YR05766, it is essential to perform an unboxing checklist:
- Check the package contents against the provided list.
- Inspect the device for any physical damages occurred during shipping.
- Ensure all included accessories are present, such as the power cord and tray.
Positioning and Leveling
Proper installation begins with the correct positioning of the YR05766. Here are the steps to effectively position and level the device:
- Choose a stable, level surface that can support the weight of the shaker (approximately 11 kg).
- Use a spirit level to ensure the shaker is perfectly level; this is crucial for accurate operation.
- Leave sufficient clearance around the device for ventilation, maintenance, and operation.
Power Connection and Initial Calibration
Once positioned correctly, proceed with the power-up sequence:
- Connect the power cord to a suitable outlet with the correct voltage and frequency.
- Turn on the YR05766 and observe the LED display for any initial error messages.
- Perform a first-run calibration by setting the desired speed and amplitude, ensuring they align with your experimental needs.
Common Setup Mistakes to Avoid
To ensure a smooth operational experience with the YR05766, be aware of these common setup mistakes:
- Improper leveling can lead to inaccurate shaking and potential damage. Always use a level.
- Connecting the device to an incorrect power supply can cause operational failure. Verify the specifications before powering up.
- Failing to check for tight connections on the power cord can lead to intermittent power issues.
Frequently Asked Questions
What is the maximum load capacity of the YR05766 Orbital Shaker?
The YR05766 is designed to handle a maximum load of approximately 5 kg on the tray, ensuring stable and efficient operation throughout your experiments.
How can I troubleshoot if the YR05766 does not power on?
If the YR05766 does not power on, check the power connection, ensure that the outlet is functioning, and ensure that the device is properly leveled. If the problem persists, inspect the power cord for damages.
What settings should I use for different types of samples?
For liquids, a shaking speed between 100-240 rpm is ideal, while for solid samples, a lower speed may be sufficient. Always refer to the specific requirements of your samples for optimal results.
How often should I perform maintenance on the YR05766 Orbital Shaker?
The YR05766 requires minimal maintenance due to its brushless motor. However, it is recommended to clean the device regularly and check all components for signs of wear every six months.
Is there a warranty on the YR05766 Orbital Shaker?
The YR05766 typically comes with a one-year warranty covering manufacturing defects. Always refer to the warranty terms provided with your purchase for specific details.
Can I use the YR05766 in a cold room or incubator?
The YR05766 operates effectively within a temperature range of -10 °C to 65 °C, making it suitable for use in cold rooms or incubators, provided the environmental conditions are stable.
What accessories are available for the YR05766 Orbital Shaker?
Compatible accessories for the YR05766 include additional trays, various shaking containers, and safety covers, which enhance the versatility and functionality of the shaker in different laboratory settings.
