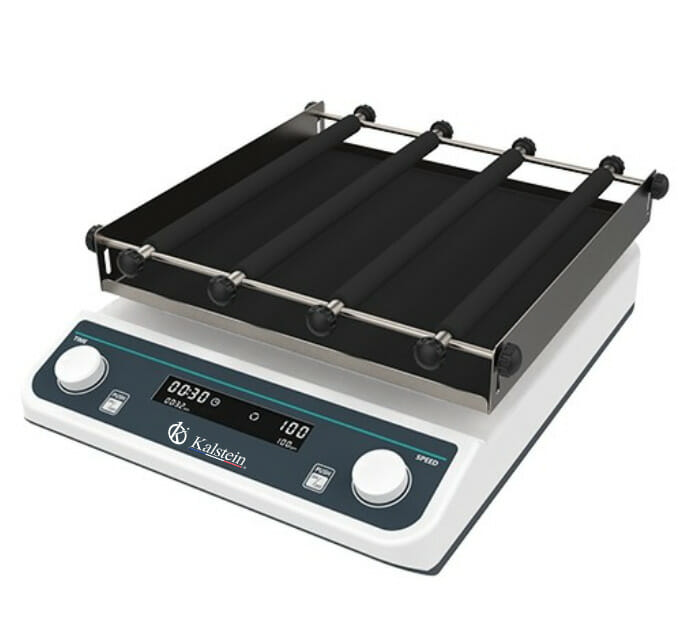

Installation and Commissioning Guide for the YR06055 Orbital Shaker
The YR06055 Orbital Shaker is a vital tool in laboratory settings, known for its precision and reliability. This guide aims to provide a detailed approach to the installation and commissioning of the YR06055, ensuring optimal performance and longevity.
Understanding the YR06055 Orbital Shaker
The YR06055 Orbital Shaker is designed to facilitate a variety of laboratory applications by providing consistent and reliable shaking. With a speed range of 40-200 rpm and a maximum load capacity of 2 kg, it is suitable for sample homogenization, cell cultures, and various agitation tasks. The unit features a brushless motor for quiet operation and reduced maintenance.
Technical Specifications of YR06055
| Specification | Details |
|---|---|
| Model | YR06055 |
| Motor Type | Brushless motor |
| Plate Size | 250*250mm |
| Operation Mode | Circular |
| Max Load | 2 kg |
| Speed Range | 40 - 200 rpm |
| Timing Range | 1 min - 23 h 59 min |
| Display | LED display |
| Power | 30W |
| Voltage | 100-240V, 50/60Hz |
| Size | 260*355*135mm |
Unboxing and Initial Setup
Upon receiving the YR06055 Orbital Shaker, follow these steps to ensure proper installation:
- Open the packaging carefully and check for any visible damage to the unit.
- Verify that all components, including the power cord, are included in the box.
- Remove protective films and packaging materials from the shaker.
Site Requirements for Optimal Performance
Before installing the YR06055, ensure the following environmental conditions are met:
- Temperature: 10°C to 30°C
- Humidity: 20% to 80% RH
- Power supply: Stable voltage between 100-240V
Leveling and Anchoring the YR06055
To achieve accurate performance, it is crucial to level the unit:
- Place the shaker on a stable surface free from vibrations.
- Use a spirit level to ensure the unit is even.
- If needed, utilize leveling feet to adjust the height.
Power-Up Sequence and Calibration
Follow these steps to power up and calibrate the YR06055:
- Connect the power cord to the unit and a power outlet.
- Turn on the power switch located at the back of the device.
- Allow the unit to initialize before starting any operation.
- Set the desired speed and timer using the digital control panel.
Common Setup Mistakes
To avoid issues during the installation and commissioning of the YR06055, be aware of the following common mistakes:
- Not ensuring the unit is level, which can affect performance.
- Overloading the shaker beyond its 2 kg limit.
- Using improper voltage settings that may damage the unit.
Troubleshooting and Maintenance Tips
In case of operational issues, refer to the following troubleshooting table:
| Symptom | Possible Cause | Solution |
|---|---|---|
| Unit does not power on | Power supply issue | Check power cord and outlet |
| Error code E-03 | Overload condition | Reduce load to 2 kg |
| Inconsistent shaking | Improper leveling | Relevel the shaker |
Frequently Asked Questions
What is the maximum loading capacity for the YR06055?
The maximum loading capacity for the YR06055 is 2 kg, which is ideal for various laboratory applications.
What are the key features of the YR06055 Orbital Shaker?
The YR06055 features a speed range of 40-200 rpm, an LED display for clear visibility, and a brushless motor for quiet operation.
How do I perform routine maintenance on the YR06055?
Routine maintenance includes cleaning the surface, checking electrical connections, and ensuring that the unit is free from dust and debris.
Can the speed of the YR06055 be adjusted during operation?
Yes, the speed of the YR06055 can be adjusted during operation using the control panel, allowing for flexibility based on your experimental needs.
What should I do if I encounter an error code?
If you encounter an error code, refer to the troubleshooting guide provided in the manual to determine the cause and resolution.
Is the YR06055 suitable for long-term continuous use?
Yes, the YR06055 is designed for continuous operation, with a timing range from 1 minute to 23 hours and 59 minutes.
How can I request a quote for the YR06055?
You can request a quote through the available channels on our website or contact our sales team for assistance.
