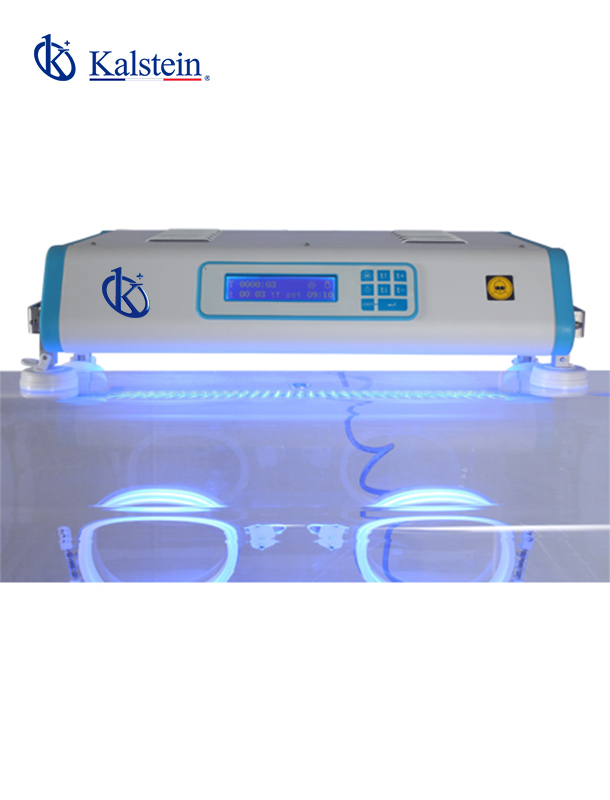

Installation and Commissioning Guide for the YR06218 Infant Phototherapy Unit
The YR06218 Infant Phototherapy Unit is a specialized device designed for the phototherapy treatment of neonatal jaundice. Proper installation and commissioning are crucial for ensuring optimal performance and patient safety. This guide will provide detailed instructions on how to effectively install and set up the YR06218 in a clinical environment.
Overview of the YR06218 Phototherapy Unit
The YR06218 is engineered with advanced features such as an LCD screen to display accumulated operating time and current hour, white LED lights for examination purposes, and a ceiling mount design. Its programmable controller allows for adjustable lighting intensities based on the time of day, making it a versatile choice for various clinical settings.
Technical Specifications of the YR06218
| Specification | Details |
|---|---|
| Model | YR06218 |
| Bilirubin Radiancy (40cm) | 3750 μw/cm² (62.5 μw/cm²/nm) |
| Bilirubin Radiancy (50cm) | 3200 μw/cm² (53 μw/cm²/nm) |
| Lighting Intensity | 33%, 67%, 100% |
| White Light | Yes |
| Power | ≤ 60VA |
| Wave Length | 400nm ~ 550nm |
| Radiant Space | 400 × 250 mm |
| Radiant Uniformity | > 0.4 |
| Therapy Time Set | 0-99h59m |
| Life Time | 5000 h |
Unboxing and Initial Setup
Upon receiving the YR06218, carefully unbox the unit and verify that all components are included as per the packing list. Check for any visible damage and report it immediately if found.
Next, locate the mounting hardware and ensure you have the necessary tools for installation. The YR06218 is designed for ceiling mounting, so it is imperative to choose a suitable location that meets the required specifications for installation.
Installation Steps
- Select the Mounting Location: Ensure your selected location allows for proper clearance and access for maintenance.
- Install the Mounting Bracket: Secure the mounting bracket to the ceiling using appropriate anchors and screws.
- Attach the Unit: Carefully lift the YR06218 onto the bracket and secure it according to the manufacturer’s instructions.
- Connect Power Supply: Ensure the unit is connected to a power source that complies with the power specifications outlined in the technical specifications.
First Power-Up and Calibration
Once installed, power up the unit by turning on the main switch. The LCD screen should light up, indicating that the device is operational. Follow the on-screen prompts to set the current time and date.
After powering up, perform a calibration of the lighting intensity settings. This may involve adjusting the settings according to the specific requirements of the clinical environment and the treatment protocol.
Common Setup Mistakes to Avoid
- Failure to verify mounting stability, which could lead to accidents.
- Inadequate clearance around the unit for maintenance and operation.
- Incorrect power supply connections that do not meet the specified voltage requirements.
- Ignoring initial calibration steps that ensure optimal performance.
Frequently Asked Questions
What are the key features of the YR06218 Infant Phototherapy Unit?
The YR06218 features an LCD display for operational time tracking, adjustable white LED lighting for examination, a ceiling mount design, and a programmable system controller for varying light intensities based on the time of day.
How should I maintain the YR06218 unit?
Regular maintenance should include checking the LED lights for functionality, ensuring the unit is free from dust and debris, and periodically testing the calibration settings to maintain optimal performance.
What is the expected lifespan of the YR06218?
The YR06218 has a rated lifespan of approximately 5000 hours, after which it should be evaluated for performance and potential replacement.
Can the lighting intensity be adjusted during patient treatment?
Yes, the YR06218 allows for programmable adjustments to the lighting intensity during treatment, providing flexibility based on clinical needs.
What should I do if the unit displays an error code?
Refer to the user manual for a list of error codes and their meanings. Common error codes will provide diagnostic steps to troubleshoot the issue effectively.
Is the YR06218 suitable for use in various clinical settings?
Yes, the YR06218 is designed to be versatile and can be utilized in hospital nurseries, pediatric wards, and outpatient settings where neonatal jaundice treatment is required.
How can I request a quote for the YR06218?
You can request a quote through our purchasing portal, where detailed information about pricing and availability can be provided.
