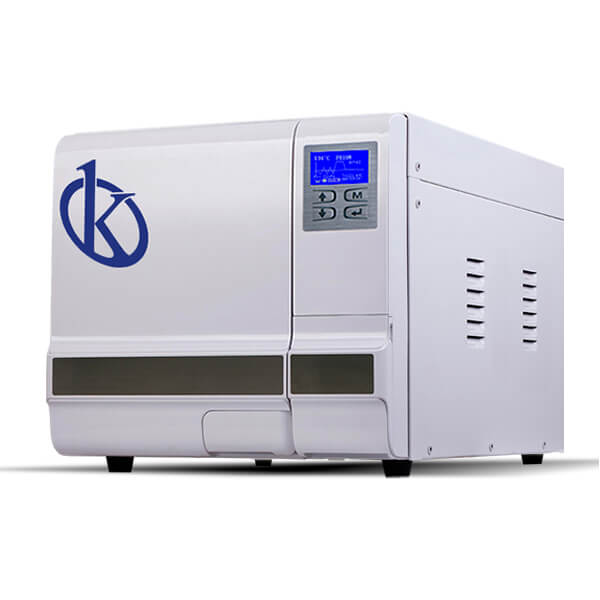

Installation and Setup Guide for the YR03392 N-Class Desktop Autoclave
The YR03392 N-Class Desktop Autoclave is an advanced sterilization device designed to streamline the sterilization process in various laboratory settings. This guide provides a detailed overview of the installation and initial setup process, ensuring optimal performance and safety for operators.
Understanding the YR03392 Autoclave
The YR03392 is a fully automatic desktop autoclave that utilizes a dynamic air extraction method to ensure a uniform distribution of steam and consistent sterilization temperatures. It is equipped with a rapid independent steam generator, which facilitates faster sterilization cycles, making it ideal for clinical laboratories and other settings that require quick turnaround times.
Technical Specifications of the YR03392
| Specification | Detail |
|---|---|
| Model | YR03392 |
| Order Code | YR03392 |
| Chamber Dimensions | Ø200×360mm |
| Chamber Volume | 12L |
| Number of Trays | 2 (max. 3) |
| Tray Size | 156×295mm |
| Voltage, Frequency | 220/110 V, 50/60 Hz |
| Power | 1900w |
| Overall Dimensions | 420x370x595mm |
| Weight | 38 kg |
Installation Checklist for the YR03392 Autoclave
Before proceeding with the installation of the YR03392, ensure that the following checklist is completed:
- Unbox the autoclave and inspect for any visible damage.
- Verify the contents against the packing list, which should include the autoclave, trays, and user manual.
- Choose a suitable location that meets the environmental conditions required for operation.
- Ensure all necessary utilities (water supply, electricity) are readily available and accessible.
- Prepare the area for proper ventilation and drainage.
Setting Up the YR03392 Autoclave
The setup process for the YR03392 includes the following steps:
1. Positioning the Autoclave
Place the YR03392 on a stable, level surface. Use a leveling tool to confirm that the autoclave is even. The surface should be capable of supporting the weight of the autoclave.
2. Connecting Water Supply
Connect the water supply to the autoclave. Ensure the connection is secure and leak-free. The autoclave requires both a fresh water supply and a drainage outlet for used water.
3. Power Connection
Connect the power cable to a suitable electrical outlet, ensuring that it matches the voltage specifications of the YR03392 (220/110 V, 50/60 Hz). Check that the outlet is properly grounded.
4. Initial Calibration
After power-up, the autoclave will automatically initialize and may require calibration. Follow the on-screen prompts to complete the calibration process according to the manufacturer's recommendations.
Common Setup Mistakes to Avoid
- Not leveling the autoclave properly, which can affect performance.
- Forgetting to connect the drainage outlet, leading to water accumulation.
- Using an incompatible power source that could damage the unit.
- Ignoring the need for proper ventilation, which could lead to overheating.
Understanding Safety Features of the YR03392 Autoclave
The YR03392 is equipped with multiple safety systems to protect users and ensure efficient operation:
- The double safety protection system prevents the cycle from starting if the door is not securely locked.
- A pressure safety valve ensures that the chamber does not exceed safe pressure levels.
- Automatic power cut-off protects against electrical faults or short circuits.
- Error detection systems communicate issues directly to the operator, facilitating quick troubleshooting.
Frequently Asked Questions
What are the key features of the YR03392 autoclave?
The YR03392 features an independent rapid steam generator, automatic operation with preset programs, LCD display for monitoring, and a robust safety system to ensure safe and efficient sterilization.
How do I maintain the YR03392 autoclave?
Regular maintenance includes checking water levels, cleaning the chamber, and inspecting the drainage system. The autoclave will also provide automatic maintenance alerts when necessary.
Can I use the YR03392 autoclave for different types of loads?
Yes, the YR03392 is designed to handle solid, liquid, and wrapped loads, making it versatile for various laboratory applications.
What is the maximum volume the YR03392 can handle?
The YR03392 has a chamber volume of 12 liters, allowing it to accommodate multiple instruments and materials for sterilization.
What should I do if the autoclave shows an error code?
Refer to the user manual for an explanation of the error code displayed. Common errors can often be resolved by following the troubleshooting guidelines provided in the manual.
Is there a warranty for the YR03392 autoclave?
Yes, the YR03392 comes with a warranty that covers manufacturing defects. Please check the warranty terms in the user manual for specific details.
Where can I request a quote for the YR03392?
You can request a quote for the YR03392 through our dedicated sales team or online inquiry form.
