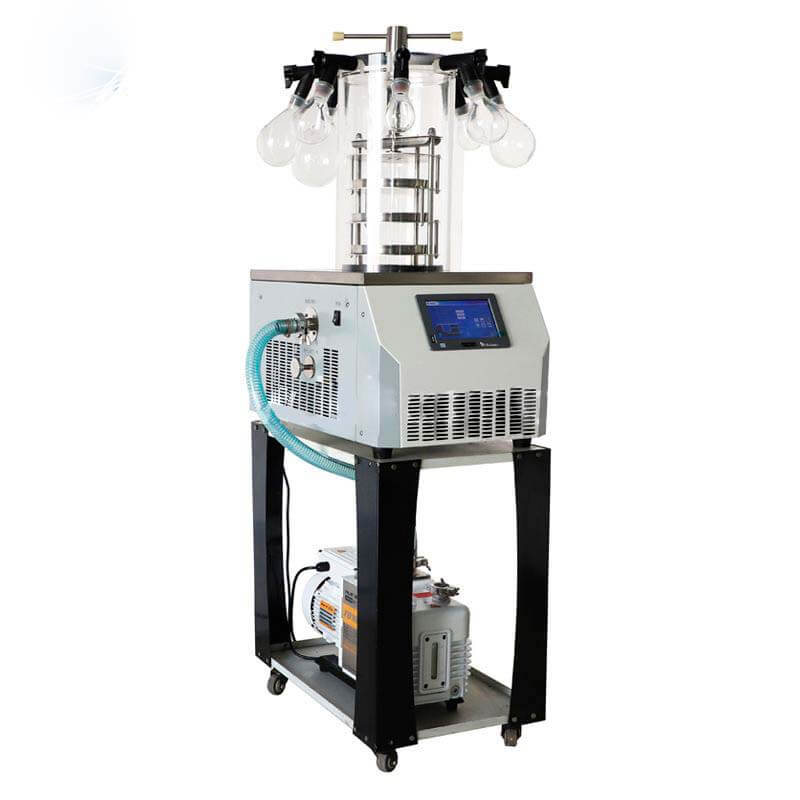

Installation and Setup Guide for the YR05189 Freeze Dryer
The YR05189 Freeze Dryer is a sophisticated benchtop laboratory instrument designed for efficient freeze-drying processes. This guide aims to provide a thorough walkthrough of the installation and initial setup procedures necessary to achieve optimal operation of the YR05189. Proper installation is crucial for the functionality and longevity of the device, and following these detailed steps will ensure that users can maximize its capabilities in various laboratory settings.
Unboxing the YR05189 Freeze Dryer
Upon receiving the YR05189 Freeze Dryer, the first step is to unbox the equipment carefully. Here is what to check during the unboxing process:
- Inspect the exterior packaging for any signs of damage.
- Remove protective materials and ensure all components are accounted for:
- YR05189 Freeze Dryer unit
- Power cord
- User manual
- Condensing unit
- Make sure accessories such as trays and racks are included.
Site Requirements and Environmental Conditions
Prior to installation, ensure that the installation site meets the necessary environmental conditions. Key requirements include:
- Operating temperature range: Maintain between 15°C and 30°C.
- Humidity levels: Ideal is below 60% relative humidity.
- Ventilation: Ensure adequate air circulation around the unit for optimal cooling.
- Power supply: Confirm the voltage rating of 220 V, 50 Hz or 110 V, 50/60 Hz is available.
Site-Prep Checklist
| Requirement | Specification |
|---|---|
| Temperature | 15°C to 30°C |
| Humidity | Below 60% RH |
| Power Supply | 220 V, 50 Hz or 110 V, 50/60 Hz |
| Ventilation | Adequate air circulation required |
Installing the YR05189 Freeze Dryer
Once the site is prepared, proceed with the installation of the YR05189:
- Positioning: Place the freeze dryer on a sturdy, flat surface to ensure stability.
- Leveling: Use a bubble level to check the alignment of the unit and adjust the feet if necessary.
- Electrical Connection: Plug the power cord into a suitable electrical outlet.
Power-Up Sequence and Calibration
After installation, execute the power-up sequence to initiate the unit:
- Turn on the main power switch located on the back of the unit.
- Wait for the system to boot up and display the home screen.
- Perform the initial calibration by following the calibration steps outlined in the user manual.
Common Installation Mistakes to Avoid
While setting up the YR05189, be aware of the following common installation errors:
- Not leveling the unit properly, leading to operational issues.
- Connecting to an incorrect voltage supply, which may damage the equipment.
- Ignoring ventilation requirements, causing overheating.
Technical Specifications of the YR05189
| Parameter | Specification |
|---|---|
| Model | YR05189 |
| Freeze Drying Area | 0.08 m² |
| Condenser Capacity | 3-4 L/24h |
| Condenser Temperature | -55 °C (-80 °C optional) |
| Vacuum Degree | < 10 Pa |
| Tray Material | ¢180mm, 3 layers |
| Bulk Capacity | 0.8 L, 10 mm thick |
| Vial Capacity Φ12mm | 560 pieces |
| Vial Capacity Φ16mm | 285 pieces |
| Vial Capacity Φ22mm | 165 pieces |
| Press Style | Manual |
| Collector | With 8 ports |
| Flask Capacity | 1000 ml, 500 ml, 250 ml, 100 ml |
| Cooling | Air, ambient temperature ≤25 °C |
| Voltage | 220 V, 50 Hz; 110 V, 50 Hz; 110 V, 60 Hz |
| Power | 700 W |
| Host Dimensions | 460*625*(370+465) mm |
| Host Weight | 41 kg |
Frequently Asked Questions
What are the best practices for maintaining the YR05189 Freeze Dryer?
Regular maintenance includes cleaning the condenser and internal components, checking seals for wear, and ensuring electrical connections are secure. Always refer to the user manual for specific maintenance guidelines.
How do I troubleshoot error codes on the YR05189?
Refer to the user manual for a list of error codes and their corresponding troubleshooting steps. Common errors might involve power failure, vacuum leaks, or temperature inconsistencies.
Can the YR05189 be used in a high-humidity environment?
It is recommended to operate the YR05189 in an environment with humidity levels below 60% to ensure optimal performance and prevent operational issues.
What types of samples can I freeze-dry using the YR05189?
The YR05189 is suitable for various sample types, including pharmaceuticals, biological samples, food products, and laboratory materials. Consult the user manual for specific guidelines on sample preparation.
Is it necessary to calibrate the YR05189 regularly?
Yes, periodic calibration is essential to maintain accuracy in the freeze-drying process. Follow the calibration schedule outlined in the user manual to ensure consistent results.
What accessories are available for the YR05189 Freeze Dryer?
Optional accessories may include additional trays, nitrogen valves, and communication interfaces. Check the product specifications for compatibility and configurations.
