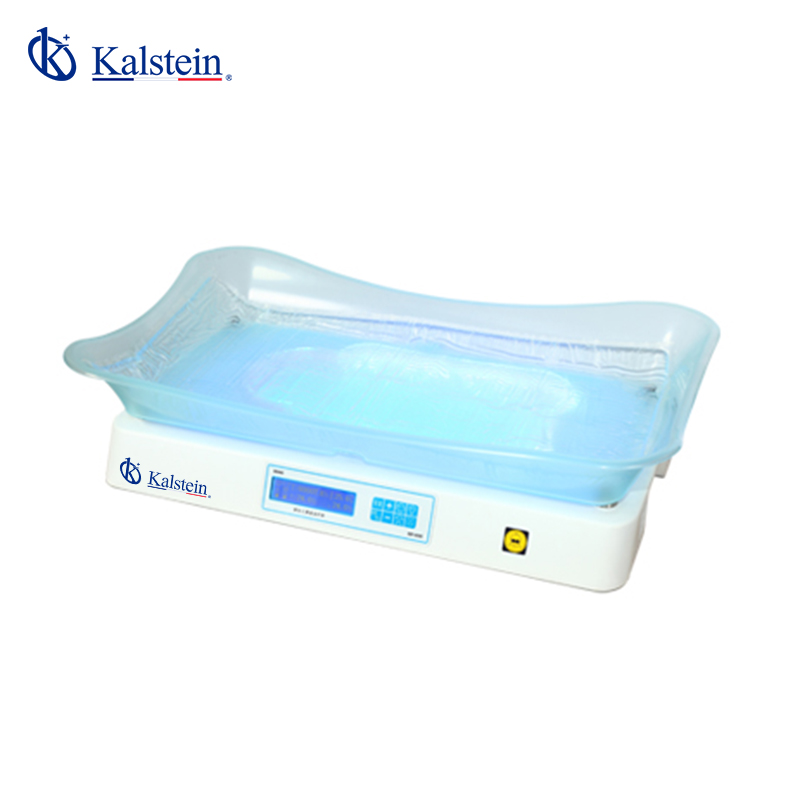

Installation and Setup Guide for the YR06222 Infant Phototherapy Unit
The YR06222 Infant Phototherapy Unit is designed to provide effective treatment for neonatal jaundice through phototherapy. In this guide, we will walk you through the installation and initial setup processes to ensure optimal performance and safety for both the infant and healthcare professionals.
Unboxing and Initial Checklist
Before starting the installation, ensure you have all components included in the packaging. The unboxing checklist includes:
- YR06222 Unit
- Power Cable
- User Manual
- Warranty Card
- Calibration Tool (if applicable)
Inspect for any damages during shipping. If any parts are missing or damaged, contact your supplier immediately.
Installation Steps for YR06222
Follow these steps for a proper installation of the YR06222:
- Select Location: Choose a well-ventilated area that meets the environmental requirements for the YR06222.
- Leveling: Ensure the unit is placed on a flat surface. Use a leveling tool to confirm.
- Power Connection: Plug the power cable into an appropriate electrical outlet. Ensure the voltage matches the YR06222 specifications (≤ 100VA).
- Power-On Sequence: Press the power button to turn on the device. Allow it to initialize.
- Calibration: Perform any necessary calibration using the provided calibration tool if applicable. Refer to the user manual for detailed instructions.
- Testing: Conduct a test run to confirm that the unit is functioning properly before introducing it into clinical use.
Technical Specifications of YR06222
| Specification | Details |
|---|---|
| Model | YR06222 |
| Bilirubin Radiancy (4cm) | 3600μw/cm2 (60μw/cm2/nm) |
| Lighting Intensity | 33%, 67%, 100% |
| White Light | Yes |
| Radiant Space | 360 × 210 (mm × mm) |
| Power | ≤ 100VA |
| Wave Length | 400nm ~ 550nm |
| Radiant Uniformity | 0.4 |
| Therapy Time Set | 0-99h59m |
| Temperature Monitor Range | 30 - 40°C |
Common Setup Mistakes
Here are some common mistakes to avoid during the setup process:
- Not checking the voltage compatibility.
- Ignoring the importance of ventilation.
- Failing to perform initial calibration.
- Overlooking the significance of leveling the unit.
Frequently Asked Questions
What are the environmental requirements for the YR06222 unit?
The YR06222 unit should be installed in a well-ventilated area with stable temperature and humidity levels to ensure optimal performance during phototherapy treatment.
How do I calibrate the YR06222 for initial use?
The calibration process involves using the calibration tool provided in the package. You must follow the specific instructions detailed in the user manual to ensure accurate settings.
What should I do if the unit does not power on?
First, check the power connection and ensure the outlet is functioning. If the problem persists, refer to the troubleshooting section of the user manual or contact customer service.
How can I adjust the lighting intensity on the YR06222?
The lighting intensity can be adjusted using the system controller on the unit. You can select from three different intensity levels: 33%, 67%, and 100%.
What is the maximum therapy time set on the YR06222?
The YR06222 allows for a maximum therapy time setting of up to 99 hours and 59 minutes, which can be adjusted according to treatment protocols.
Is there a support service available for troubleshooting?
Yes, technical support is available through the manufacturer. You can contact customer service for assistance with any issues or questions regarding the YR06222 unit.
How can I request a quote for the YR06222?
You can request a quote on Kalstein Plus to get more information and pricing for the YR06222 Infant Phototherapy Unit.
