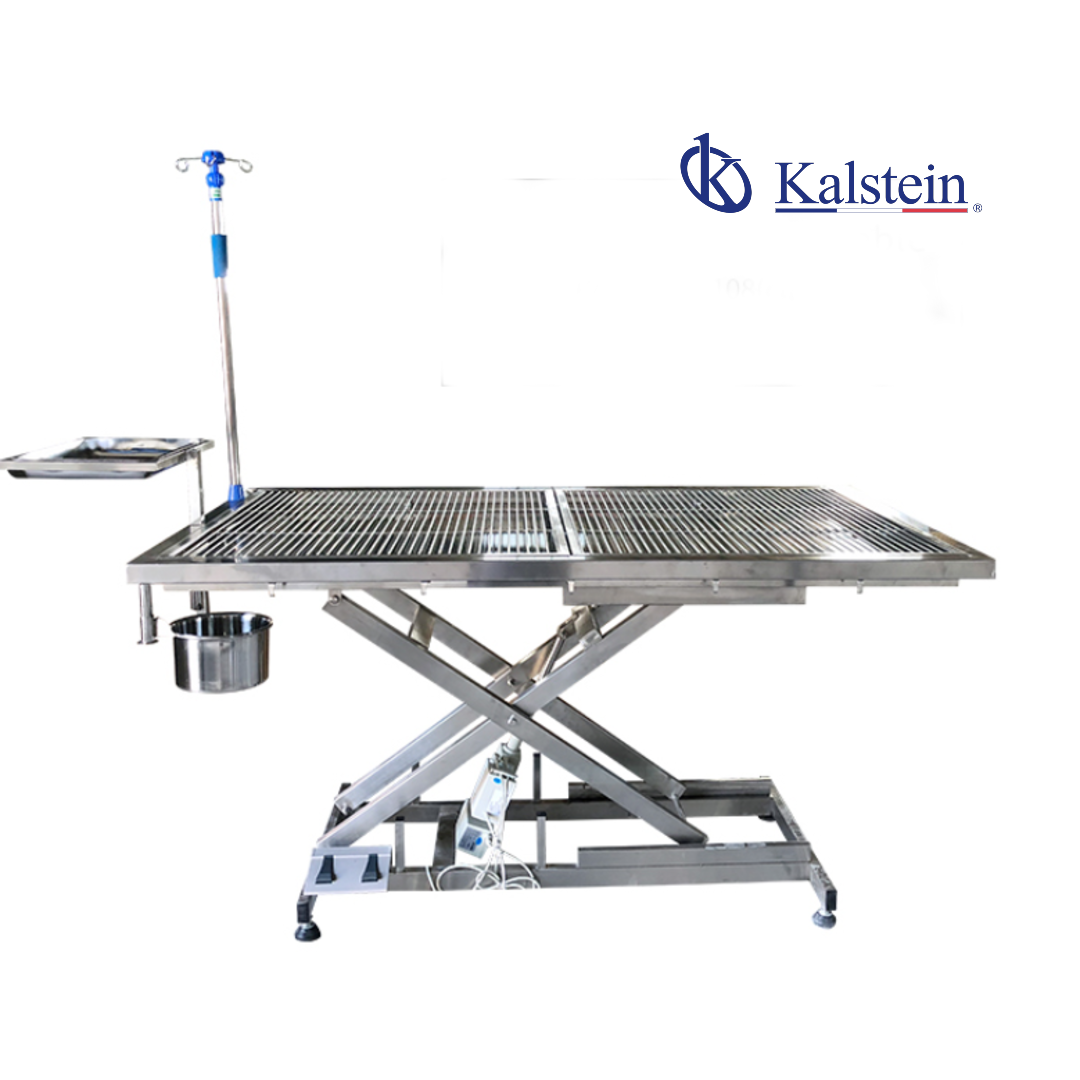

Comprehensive Installation and Setup Guide for the YR06597 Electric Veterinary Operating Table
The YR06597 electric veterinary operating table is designed to meet the high demands of veterinary surgery with its robust stainless steel construction and powerful electric lift system. This guide aims to provide a detailed installation and setup process to ensure you are fully prepared for its operation.
Key Features Overview
The YR06597 table features a working surface made of 304 stainless steel that includes a grid or mesh design for efficient fluid drainage. It is built with a steel frame coated with epoxy resin, providing scratch resistance and corrosion protection. The electric lift mechanism allows for seamless height adjustments, improving ergonomic operations for veterinary professionals.
Technical Specifications
| Feature | YR06597 |
|---|---|
| External Dimensions (cm) | 120(L) x 60(W) x 65(H) |
| Package Dimensions (cm) | 141 x 75 x 57 |
| Package Weight (kg) | 85 kg |
| Surface Material | 304 Stainless Steel (with filter mesh) |
| Support Material | Steel frame with epoxy resin coating |
| Lift Mechanism | Electric, pedal-controlled |
| Height Adjustment Range | 36 cm to 108 cm |
| Standard Accessories | IV support, utensil tray, stainless steel waste bucket |
| Stability | Adjustable wheels and fixed feet |
Unboxing and Initial Setup
Upon receiving the YR06597, it's essential to conduct an unboxing checklist to ensure all components are included. Unbox the table carefully, and inspect for any visible damages. The package should include the operating table, pedal control, and necessary assembly hardware.
Anchoring and Leveling the Table
After unboxing, position the table in a suitable location in your veterinary facility. Ensure that the surface is level and stable. Use the adjustable wheels to position the table, and once placed, lock them to prevent any movement during surgery. This step is crucial for ensuring the safety and comfort of both the patient and the veterinary staff.
Power-Up Sequence
Once the table is in position, connect the power supply. Ensure that the electrical outlet meets the required voltage specifications for the YR06597. Once plugged in, test the electrical functionality of the pedal control to make sure the lift mechanism responds correctly.
First-Run Calibration
Before using the YR06597 for actual procedures, perform a first-run calibration. Adjust the height to its maximum and minimum settings several times to ensure smooth operation. Observe any irregularities in the function and consult the troubleshooting section if necessary.
Common Setup Mistakes
Common mistakes during setup include not leveling the table properly, failing to secure the wheels, or connecting to an incorrect power source. Double-check all connections and ensure that the table is stable before commencing any surgical procedures.
Frequently Asked Questions
What materials are used in the construction of the YR06597?
The YR06597 is primarily constructed with 304 stainless steel for the working surface and features an epoxy-coated steel frame, ensuring durability and resistance to corrosion.
How do you adjust the height of the YR06597?
The height of the YR06597 can be adjusted effortlessly using a pedal-controlled electric lift mechanism, allowing for optimal ergonomics during surgery.
What is the maximum height of the table?
The YR06597 can be adjusted to a maximum height of 108 cm, accommodating various surgical needs and operator heights.
How do I maintain the YR06597?
To maintain the YR06597, clean the stainless steel surface immediately after use to prevent corrosion. Regular checks on the electrical components and ensuring the mobility features function correctly are also essential.
Is the table suitable for all veterinary procedures?
Yes, the YR06597 is designed for various veterinary procedures, from routine check-ups to complex surgeries, thanks to its adjustable height and optional accessories.
What are the weight specifications of the YR06597?
The YR06597 has a package weight of 85 kg, making it robust enough to handle significant weight during surgical procedures with stability.
Where can I find replacement parts for the YR06597?
Replacement parts and compatible accessories for the YR06597 can typically be requested directly from the supplier, ensuring you receive genuine parts for optimal performance.
