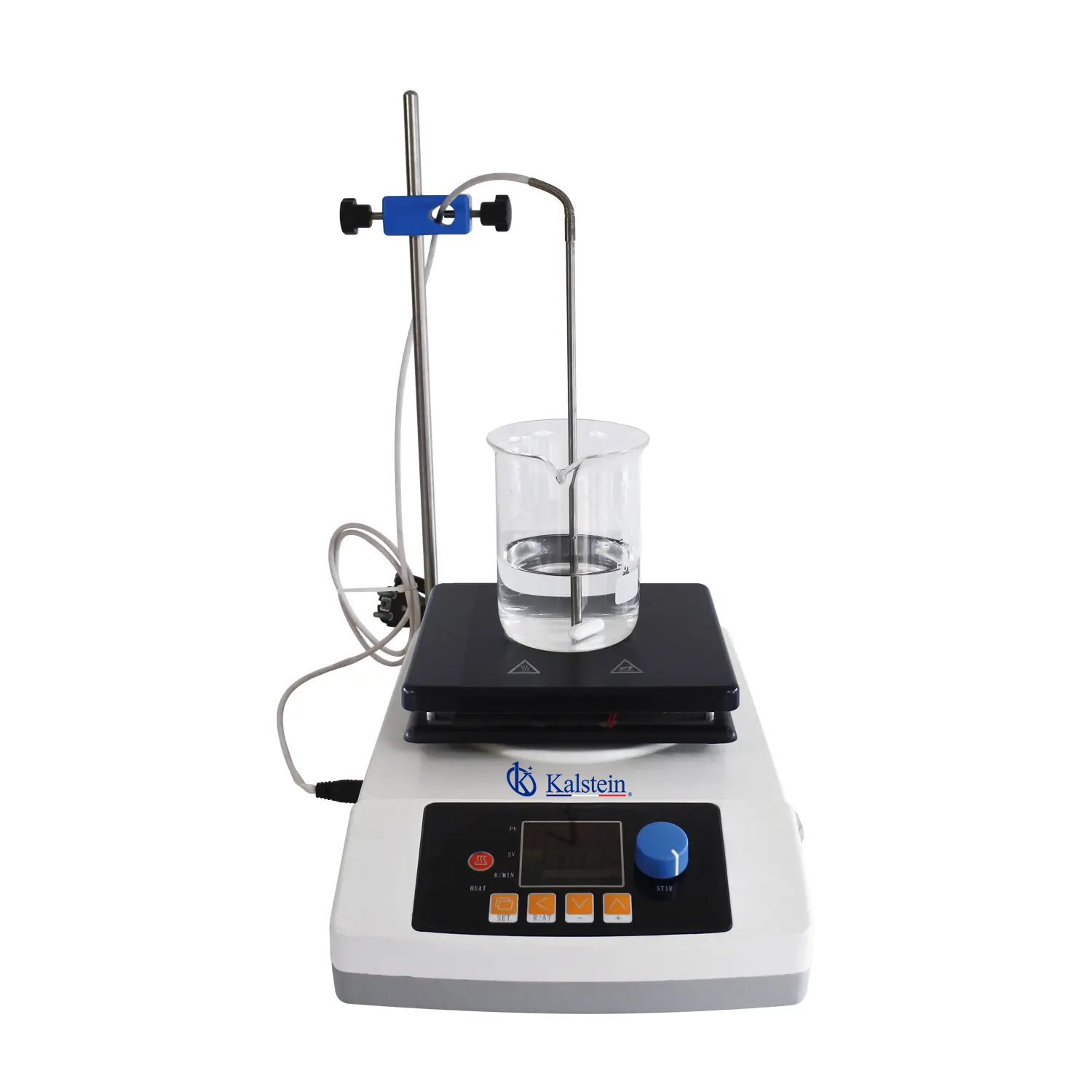

Installation and Startup Guide for the YR02939 Intelligent Digital Display Ceramic Top Hotplate Stirrer
The YR02939 Intelligent Digital Display Ceramic Top Hotplate Stirrer is a state-of-the-art laboratory device designed for efficient mixing and heating of samples. This guide provides detailed instructions on the installation and initial setup of the YR02939 to ensure you achieve optimal performance and longevity from your equipment.
Unboxing and Initial Inspection
Before starting the installation, carefully unbox the YR02939 and perform an initial inspection:
- Check the contents: Ensure all components, including the hotplate stirrer, power cord, and user manual, are present.
- Inspect for damage: Look for any signs of damage during shipping, such as dents or scratches on the unit.
- Verify model: Confirm that the model code matches YR02939 to avoid any confusion with other devices.
Site Preparation Requirements
Before installation, ensure that the location meets the following environmental conditions:
- Temperature range: The device operates effectively within a temperature range of room temperature to 40 °C.
- Humidity: Keep humidity levels below 80% to prevent damage to electronic components.
- Ventilation: Ensure adequate ventilation to avoid overheating.
- Clearances: Allow sufficient space around the unit for air circulation and ease of access.
Installation Steps
1. Choosing the Right Location
Select a flat, stable surface to place the YR02939. Ensure that it is away from direct sunlight and sources of heat.
2. Leveling the Unit
Use a spirit level to verify that the hotplate stirrer is perfectly level. Adjust the feet if necessary to ensure stability.
3. Connecting Power Supply
Plug the power cord into a suitable power outlet. The YR02939 can operate on both 110V and 220V, depending on your configuration.
Power-Up Sequence
Once the unit is installed, follow these steps to power up:
- Press the power button located on the front panel.
- Wait for the display to illuminate, indicating that the unit is powered on.
- Set the desired temperature and stirring speed using the digital interface.
First-Run Calibration
Calibration is crucial for accurate measurements. Follow these steps to calibrate the YR02939:
- Place a calibrated thermometer in the center of the hotplate.
- Set the hotplate to a specific temperature (e.g., 100 °C) and allow it to stabilize.
- Compare the temperature reading on the thermometer with the display. Adjust as necessary.
Common Setup Mistakes
Be aware of these common mistakes to ensure smooth operation:
- Failing to level the unit can cause inaccurate stirring and heating.
- Not calibrating before the first use may result in erroneous temperature readings.
- Connecting to an incorrect voltage can damage the unit.
Technical Specifications of the YR02939
| Specification | Details |
|---|---|
| Model | YR02939 |
| Heating Plate Dimensions (mm) | 230 x 230 |
| Heating Power (W) | 750 |
| Temperature Range | Room to 380 °C |
| Mixing Speed Range | 100-1800 RPM |
| Temperature Control | Automatic PID Control |
| Display Type | Digital LCD Display |
| Temperature Accuracy | +/- 1 °C |
| Voltage | 220V / 110V optional |
| Dimensions (mm) | 500 x 400 x 350 |
| Weight (Kg) | 7.5 |
Frequently Asked Questions
What are the initial steps to set up the YR02939 hotplate stirrer?
To set up the YR02939, start by unboxing and inspecting the unit for damage. Choose a suitable, stable surface for installation, ensure the location is within the specified operating conditions, and connect the power supply.
How do I calibrate the YR02939 for accurate temperature readings?
To calibrate, place a calibrated thermometer in the center of the hotplate, set the unit to a specific temperature, and compare the thermometer's reading with the display. Adjust as necessary for accuracy.
What should I do if the YR02939 does not power on?
If the device does not power on, check the power supply connection, verify that the outlet is functional, and ensure the device is set to the correct voltage.
Can I use the YR02939 in a fume hood?
Yes, the YR02939 can be used in a fume hood. Ensure that adequate ventilation is provided and that the device is placed securely to avoid accidents.
What is the maximum temperature the YR02939 can reach?
The YR02939 can reach a maximum temperature of 380 °C, making it suitable for a variety of heating applications in a laboratory setting.
How do I ensure the longevity of the YR02939 hotplate stirrer?
To ensure longevity, perform regular maintenance, avoid exposure to harsh chemicals, and ensure the unit is calibrated periodically for accurate performance.
Where can I find replacement parts for the YR02939?
Replacement parts can be obtained through authorized distributors or directly from the manufacturer. It’s recommended to use only compatible parts for maintenance.
