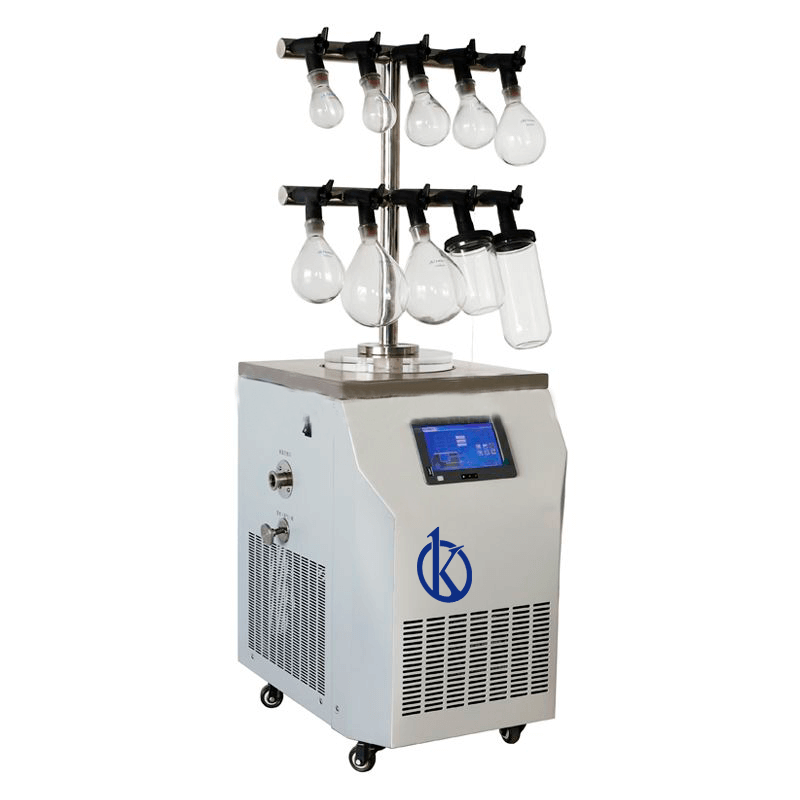

Installation and Startup Guide for the YR05193-1 Vertical Laboratory Freeze Dryer
The YR05193-1 Vertical Laboratory Freeze Dryer is a state-of-the-art device designed for efficient freeze-drying processes in medical, pharmaceutical, biological research, and chemical industries. This guide aims to provide comprehensive installation and startup instructions for users, ensuring optimal performance and longevity of the equipment.
Unboxing and Initial Setup
Before proceeding with the installation of the YR05193-1, it is essential to carefully unbox the device and check for any visible damage. The unboxing checklist includes:
- Verify the model number as YR05193-1.
- Inspect all components, including the main unit, condensers, shelves, and accessories.
- Ensure that all necessary manuals and documentation are included.
- Check for any optional accessories that may have been ordered.
Once verified, proceed to place the unit in a designated area, ensuring adequate spacing for ventilation and maintenance access.
Anchoring and Leveling
For optimal performance, the YR05193-1 must be installed on a level surface. Begin by using a spirit level to check the surface's flatness. Adjust the feet of the unit accordingly to achieve a level position. It is important to anchor the device securely to prevent movement during operation, especially in environments susceptible to vibrations.
Power-Up Sequence
After leveling the unit, connect the power supply according to the specifications provided in the manual. The YR05193-1 operates on 220V and 50Hz. Follow these steps for powering up:
- Ensure all switches are in the OFF position.
- Connect the power cable to the designated outlet.
- Turn on the main power switch.
- Monitor the display for any error codes during startup.
First-Run Calibration
Calibration is crucial for ensuring accurate and reliable operation. The initial calibration should include:
- Setting the desired temperature and vacuum parameters.
- Running an empty cycle to establish baseline performance metrics.
- Documenting the calibrations for future reference and adjustments.
Common Setup Mistakes
While setting up the YR05193-1, operators may encounter common mistakes that could hinder performance. Here are some errors to avoid:
- Failing to level the unit properly, which can affect operational efficiency.
- Incorrectly connecting the power supply, leading to potential damage.
- Not performing the first-run calibration, resulting in inaccurate readings.
Technical Data Overview
| Model | YR05193-1 |
|---|---|
| Condenser Capacity | 3 kg / 24h |
| Condenser Temperature | -55℃ (-80℃ optional) |
| Vacuum Degree | < 10 Pa |
| Cooling Type | Air |
| Power Supply | 220V, 50Hz |
| Power Consumption | 750 W |
| Dimensions | 560×460×(720+440) mm |
| Weight | 62 kg |
Frequently Asked Questions
What are the main applications of the YR05193-1 freeze dryer?
The YR05193-1 freeze dryer is widely used in various sectors, including pharmaceuticals, biotechnology, and food processing. It is ideal for the preservation of sensitive samples by ensuring minimal degradation during the drying process.
How can I ensure proper maintenance of the YR05193-1?
Regular maintenance involves cleaning the condenser and shelves, checking for leaks, and ensuring the vacuum system is functioning properly. Refer to the user manual for detailed maintenance schedules and procedures.
What should I do if the freeze dryer displays an error code?
Consult the user manual to identify the error code. Most error codes are accompanied by troubleshooting steps to help diagnose and rectify the problem efficiently.
Is the YR05193-1 compatible with additional accessories?
Yes, the YR05193-1 can be equipped with various optional accessories such as nitrogen valves, eutectic point test devices, and communication interfaces to enhance its functionality.
What environmental conditions are required for the YR05193-1?
The freeze dryer should be operated in a clean, dry environment with controlled temperature and humidity levels. Ensure adequate ventilation and avoid exposure to extreme temperatures.
How do I troubleshoot vacuum issues with the YR05193-1?
Check the seals and gaskets for integrity, verify that the vacuum pump is operating correctly, and ensure there are no obstructions in the vacuum lines. Refer to the troubleshooting section of the manual for detailed guidance.
Can the YR05193-1 be used in a laboratory with limited space?
Yes, the YR05193-1 is designed for easy operation and can fit into smaller laboratory setups, provided there is adequate clearance for airflow and maintenance access.
Request a quote to explore more about the YR05193-1 and its capabilities.
