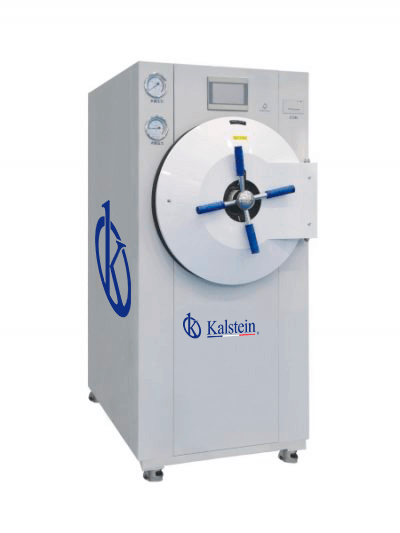

Installation and Startup Guide for the YR05644-1 Horizontal Pulsating Vacuum Autoclave
The YR05644-1 Horizontal Pulsating Vacuum Autoclave represents a significant advancement in sterilization technology, ideal for various applications within laboratory environments. This guide aims to provide detailed instructions for the installation and initial setup of the YR05644-1, ensuring operators achieve optimal functionality from day one.
Unboxing and Initial Inspection
Upon receiving the YR05644-1, it is crucial to perform an initial inspection to ensure all components are intact and functional. The unboxing checklist includes:
- Verify the presence of the autoclave unit.
- Check for all accessories, including the user manual, power cable, and any additional components.
- Inspect the unit for any physical damage during transportation.
Document any discrepancies or damages immediately and contact your supplier for resolution.
Site Requirements and Preparation
Before installation, ensure that the site meets the specific requirements for the YR05644-1. A prepared environment enhances reliability and performance. Key considerations include:
- Temperature and Humidity: Maintain a temperature range of 10°C to 40°C and relative humidity not exceeding 80%.
- Voltage and Frequency: Confirm that the power supply matches the YR05644-1 specifications (380V, 50/60Hz).
- Ventilation: Ensure adequate airflow around the autoclave to prevent overheating.
- Clearances: Maintain a minimum clearance of 15 cm around the unit for maintenance access.
Installation Steps
Follow these steps to properly install the YR05644-1:
- Level the Autoclave: Ensure the autoclave is placed on a stable, level surface to prevent operational issues.
- Connect the Water Supply: Attach the water inlet to a clean water source and ensure good drainage for the waste outlet.
- Power Connection: Connect the autoclave to a dedicated power supply, ensuring compliance with electrical safety standards.
- Initial Calibration: Before powering on, check water levels and ensure that all safety features are functional.
Power-Up and First-Run Calibration
Once installed, perform the following steps to power up the YR05644-1:
- Switch on the main power supply.
- Access the control interface via the 7-inch color LCD touchscreen.
- Run a self-diagnostic check on the PLC+HMI system to ensure all components are operational.
- Set the desired sterilization parameters based on the items being processed.
- Run a test cycle without any load to validate the calibration settings.
Common Setup Mistakes to Avoid
To ensure a smooth installation and startup process, be aware of common pitfalls:
- Inadequate leveling of the unit can lead to incorrect operation.
- Using incorrect voltage may damage the system.
- Failure to clear the space around the autoclave can affect ventilation.
- Not conducting a test run before actual use may result in unforeseen errors.
Technical Specifications of the YR05644-1
| Model | YR05644-1 |
|---|---|
| Design Pressure | -0.1/0.25Mpa |
| Design Temperature | 139℃ |
| Doors | Double Door |
| Working Temperature Range | 105℃-136℃ |
| Maximum Working Pressure | 0.23Mpa |
| Sterilization Time Range | 0-99 minutes |
| Drying Time Range | 0-99 minutes |
| Vacuum Rate | -0.081Mpa |
| Temperature Accuracy | 0.1℃ |
| Chamber Size (mm) | 200L / Ø515*1000 |
| External Size (mm) | 1400*760*1750 |
| Packaging Size (mm) | 1560*910*1880 |
| GW / NW | 680/580kg |
| Power | 12kw |
Troubleshooting Common Symptoms
While operating the YR05644-1, users may encounter various issues. Below is a symptom-solving matrix:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment does not power on | Power supply issue | Check power connections and fuses |
| Error code E-03 | Water supply low | Refill water reservoir and restart |
| Inconsistent readings | Calibration issue | Re-calibrate the unit |
Frequently Asked Questions
What is the ideal operating environment for the YR05644-1?
The ideal operating environment for the YR05644-1 requires a stable temperature between 10°C to 40°C and a relative humidity below 80%. Adequate ventilation is essential to avoid overheating.
How do I maintain the YR05644-1 autoclave?
Regular maintenance includes checking water levels, cleaning the chamber, and inspecting the seals and gaskets for wear. It is recommended to follow a preventive maintenance schedule every six months.
What should I do if the autoclave shows an error code?
Refer to the user manual for the specific error code, as it will provide guidance on troubleshooting steps. Common solutions involve checking the water supply or recalibrating settings.
Can the YR05644-1 be used for different sterilization protocols?
Yes, the YR05644-1 can be programmed for various sterilization protocols, making it versatile for clinical, industrial, and educational applications.
What accessories are compatible with the YR05644-1?
The YR05644-1 supports a range of accessories including sterilization trays, filters, and additional safety devices. Always ensure compatibility before purchase.
How often should I perform a calibration check?
Calibration checks should be performed before the first run after installation and periodically afterward, typically every three months or as needed based on usage frequency.
Where can I request a quote for the YR05644-1?
To request a quote for the YR05644-1, please visit the appropriate sales channel and provide your requirements for a swift response.
