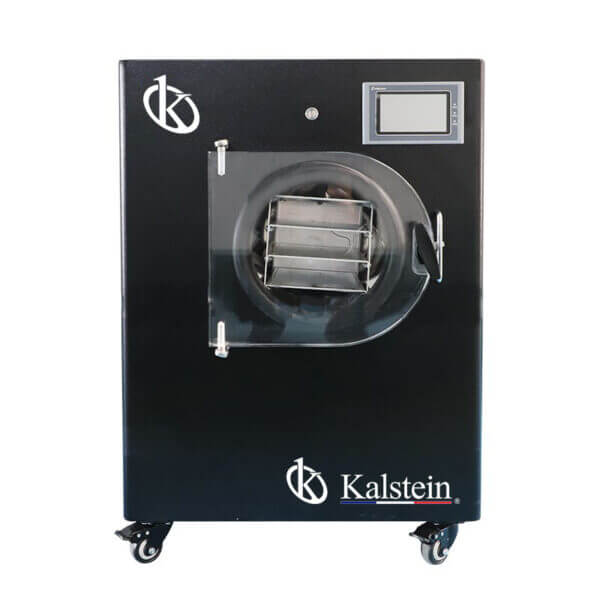

Installation and Startup Guide for the YR05983 Home Use Freeze Dryer for Food
The YR05983 Home Use Freeze Dryer is a powerful tool designed for food preservation through a process known as freeze-drying. This guide will cover everything you need to know about installing and starting up your YR05983, ensuring optimal performance right from the first use.
Understanding the Freeze-Drying Process
Freeze-drying is a complex process that removes moisture from food after it has been frozen and placed under vacuum. This allows ice to transition directly from a solid to vapor without passing through a liquid phase. It consists of three main stages: freezing, primary drying (sublimation), and secondary drying (desorption).
This technology is essential for retaining the nutritional value and flavor of food while ensuring a long shelf life. Understanding this process will help users appreciate the importance of each step during installation and operation.
Installation Requirements for the YR05983
Before you proceed with the installation of the YR05983, ensure that you have a suitable location that meets the following criteria:
- Temperature range: 10°C to 30°C
- Humidity levels: below 70%
- Power supply: 220V 50Hz
- Proper ventilation to allow for heat dissipation
- Stable and level surface capable of supporting the unit's weight (approximately 80 kg)
Unboxing Your YR05983 Freeze Dryer
Upon receiving your YR05983, carefully unbox it. Check the contents against the provided checklist:
- YR05983 Freeze Dryer Unit
- Power Cord
- Food Trays (3 pieces)
- User Manual
- Warranty Registration Card
Inspect for any damage during transit and ensure all parts are included. If anything is missing or damaged, contact customer service immediately.
Setting Up the YR05983
Follow these steps to set up your YR05983:
- Choose a Location: Select a flat, stable surface away from direct sunlight and moisture.
- Connect to Power: Plug the power cord into a suitable outlet.
- Level the Unit: Use a level tool to ensure the unit is perfectly horizontal. Adjust the feet if necessary.
- Initial Setup: Press the power button to start the unit. The display will guide you through the initial configuration.
- Calibration: Follow the manual instructions for the first-run calibration.
Power-Up Sequence for the YR05983
To power up your YR05983 for the first time:
- Ensure the unit is plugged in and the power switch is turned on.
- The display will light up, indicating the system is ready for operation.
- Set the desired drying parameters based on the type of food you are processing.
- Press the start button to initiate the freeze-drying cycle.
Common Startup Issues and Solutions
During the startup, you might encounter certain issues. Below is a table summarizing common symptoms and their solutions:
| Symptom | Probable Cause | Solution |
|---|---|---|
| Unit does not power on | Check power connection | Ensure the unit is plugged into a functional outlet |
| Error code E-03 | Temperature out of range | Check ambient temperature settings |
| Inconsistent drying results | Incorrect settings for food type | Refer to the manual for appropriate settings |
Technical Specifications of the YR05983
| Specification | Details |
|---|---|
| Model | YR05983 |
| Overall Size (WxDxH) | 400x550x700mm |
| Power Consumption | 1100w |
| Power Supply | 220V 50HZ |
| Tray Area | 0.1m2 |
| Single Batch Capacity | 1-2kg |
| Tray Size | 140*278mm |
| Number of Trays | 3pcs |
| Weight | 80kg |
| Condenser Temperature | ≤-50°C |
| Drying Temperature | -25°C ~ +60°C |
| Vacuum | <15Pa |
Frequently Asked Questions
What should I do if my YR05983 freeze dryer is not powering on?
Check the power connection to ensure that the unit is plugged into a functional outlet. Confirm that the power switch is turned on and inspect for any visible damage to the power cord.
How do I know the right settings for different food items in the YR05983?
Refer to the user manual that comes with the YR05983 for guidelines on the appropriate settings for different types of food. This includes parameters such as temperature and drying time based on food variety.
Can I use the YR05983 for commercial purposes?
While the YR05983 is designed for home use, it can also be used for small-scale commercial applications. However, for larger volumes, industrial-grade freeze dryers may be more suitable.
Is there a warranty included with the YR05983 freeze dryer?
Yes, the YR05983 comes with a standard warranty. For specific details regarding warranty terms, refer to the warranty registration card included in the package or check the user manual.
How do I properly maintain my YR05983 freeze dryer?
Regular maintenance includes cleaning the trays after each use, checking the vacuum seals, and ensuring the condenser is free from debris. Follow the maintenance section in the user manual for detailed instructions.
What types of food can be processed with the YR05983?
The YR05983 can effectively process a wide variety of foods, including fruits, vegetables, meats, and prepared meals. Ensure to follow the recommended guidelines for each food type for optimal results.
