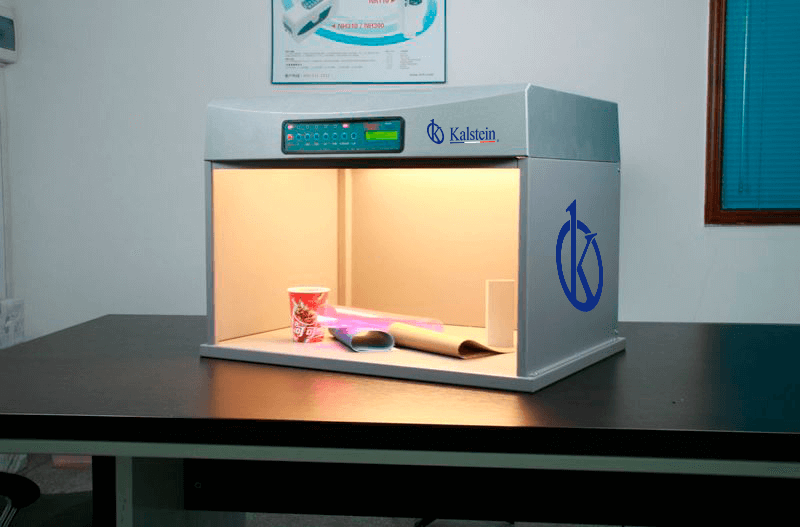

How to Interpret Results and Read Measurements Using the YR05523 Color Light Box
The YR05523 Color Light Box is a vital tool in industries that rely on accurate color evaluation and measurement. Understanding how to interpret results and read measurements effectively is essential for making informed decisions in various applications including textiles, photography, and printing. This article aims to provide a comprehensive guide on utilizing the YR05523 to achieve reliable color assessments.
Understanding the Role of the YR05523 Color Light Box
The YR05523 is designed to facilitate precise color comparison and evaluation under controlled lighting conditions. It accommodates up to six different light sources, ensuring that users can assess color in a manner that simulates various environments. The importance of consistent lighting cannot be overstated, as it directly influences the perception of color and the accuracy of measurements.
Technical Specifications of the YR05523
| Model | YR05523 | ||||
| Light Source | D65, TL84, CWF, TL83, UV | ||||
| Dimensions (W x D x H) | 695 x 552 x 502 mm | ||||
| Voltage | 220V/50Hz – 110V/60Hz | ||||
| Weight | 28.9 kg | ||||
Interpreting Color Measurements
When utilizing the YR05523, operators must be aware of standard color measurement units such as LAB, RGB, and Hex. Each of these units serves a specific purpose and is suitable for different applications. For example, LAB is frequently used in color science due to its perceptual uniformity. Understanding these units allows users to effectively interpret data produced by the YR05523.
Moreover, normal ranges for color measurements can vary based on industry standards and specific applications. Familiarizing oneself with these ranges is crucial to accurately assess whether the measured colors fall within acceptable parameters.
Common Misinterpretations in Color Evaluation
One of the frequent challenges faced by operators is misinterpretation of color results due to external factors, such as ambient lighting conditions or observer bias. It is vital to standardize viewing conditions when using the YR05523. This means ensuring consistent lighting and using calibrated monitors for additional assessments.
To aid in avoiding common errors, operators should develop a systematic approach when interpreting results. This includes documenting all relevant variables, running tests under controlled settings, and utilizing reference samples for comparison.
Practical Examples of Using the YR05523
Consider a scenario in a textile facility where fabric color matching is critical. Utilizing the YR05523, operators can assess the color of a newly dyed fabric against a standard sample under various light sources. By documenting the LAB values obtained from the YR05523, operators can ensure that the new dye meets established standards.
Another application could be in the printing industry, where color consistency is paramount. The YR05523 can be used during the printing process to evaluate proofs against desired outcomes, ensuring that the final product adheres to color specifications.
Setting Up the YR05523 for Accurate Measurements
An essential part of using the YR05523 effectively is the initial setup. Operators should follow a checklist that includes the following:
- Unboxing and inspecting the unit for any damage
- Positioning the light box in a controlled environment, free from excessive light interference
- Powering up the unit and calibrating light sources
- Running a test measurement with a known reference sample
By adhering to these steps, users can minimize setup errors that could lead to inaccurate measurements.
Frequently Asked Questions
What are the key light sources used in the YR05523 Color Light Box?
The YR05523 Color Light Box features six key light sources: D65, TL84, CWF, TL83, UV, and F. Each light source serves a unique function in simulating different lighting conditions for color evaluation.
How can I ensure accuracy in color measurements with the YR05523?
To ensure accurate color measurements, operate the YR05523 in a controlled environment, use calibrated reference samples, and regularly maintain the light sources to prevent discrepancies in readings.
What industries can benefit from using the YR05523 Color Light Box?
Industries such as textiles, photography, printing, automotive, and ceramics can greatly benefit from the YR05523 for reliable color assessments and quality control processes.
How do I read the color measurement results from the YR05523?
Results from the YR05523 can be read in various formats, including LAB or RGB values. Understanding these formats is essential to accurately interpret the color data provided by the equipment.
What maintenance is required for the YR05523 Color Light Box?
Regular maintenance of the YR05523 includes replacing light sources as needed, cleaning the unit, and performing calibration checks to ensure ongoing accuracy in measurements.
Can the YR05523 Color Light Box be customized for specific applications?
Yes, the YR05523 can be customized in terms of dimensions and additional accessories to better suit specific applications across various industries.
What should I do if I encounter inconsistent readings with the YR05523?
If inconsistent readings are observed, check for proper calibration, ensure that light sources are functioning correctly, and verify that the unit is being operated under standardized conditions.
