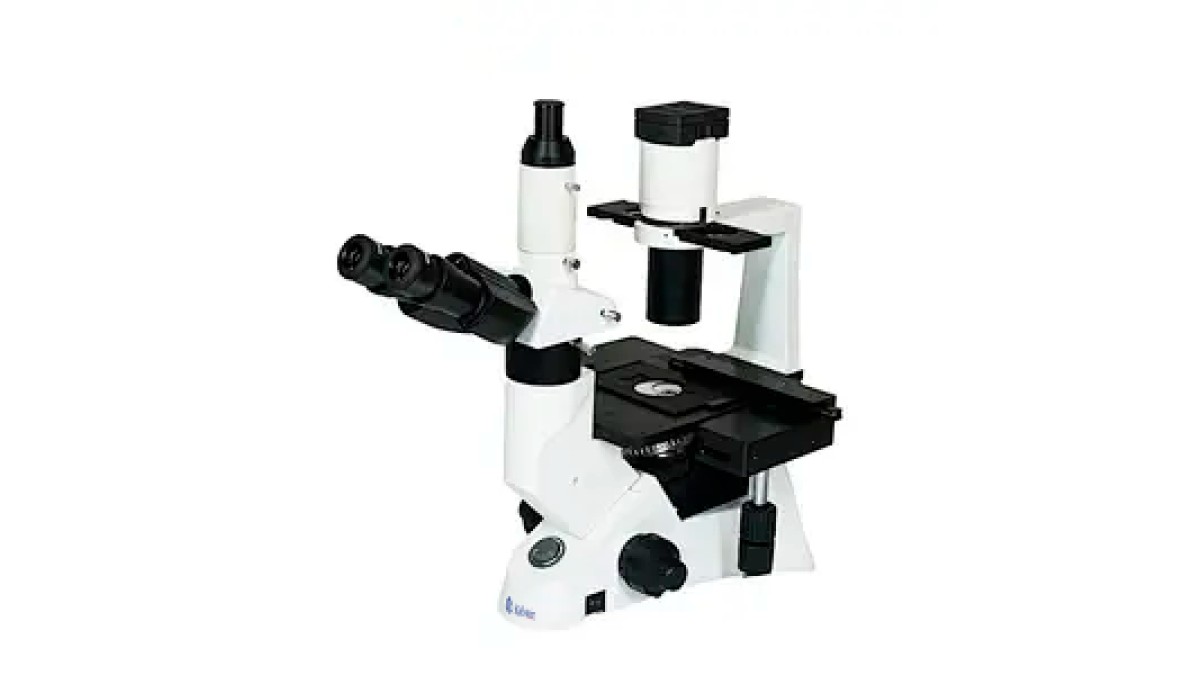

Inverted Microscope - Trinocular YR0230: Technical Performance and Security Analysis
The Inverted Microscope - Trinocular YR0230 is a sophisticated optical instrument designed to meet the needs of modern laboratories. With its advanced features and technical specifications, this microscope offers unparalleled performance and security for a wide range of applications.
Product Description
The YR0230 inverted biological microscope is equipped with an additional wide field eyepiece of EW10x/22 mm, high eyepoint long working distance plan achromatic objectives, making it ideal for observing transparent and unfinished living samples in culture bottle containers. This microscope is particularly useful for the research of liquid deposits of living sample structures.
The trinocular head provides a 30-degree inclined view, with an interpupillary distance adjustable from 48 to 75 mm, accommodating the needs of various users. The coaxial coarse and fine focus adjustments allow for precise focusing, while the five-position revolving nosepiece enables quick changes between different objectives.
The optical system is designed for infinity-corrected optics, ensuring clarity and precision in every observation. With the incorporation of a Kohler illumination system, the microscope guarantees high-quality lighting, enhancing the visibility of specimens.
Market Price
The market price for the YR0230 inverted microscope is approximately $1416.00. This price point reflects the advanced technology and quality of materials used in its construction, making it a valuable investment for laboratories seeking reliable and high-performance equipment.
| Feature | YR0230 |
|---|---|
| Optical System | Infinity System |
| Tilt Angle | 30 Degrees |
| Interpupillary Distance | 48~75 mm |
| Eyepiece | EW10x/22 mm |
| Objectives | 4x/0.1, 40x/0.6, PH10x/0.25, PH20x/0.40 |
| Condenser | ELWD NA0.3, long working distance 72 mm |
| Illumination | Kohler illumination, 6V30W halogen lamp |
Frequently Asked Questions
What is the purpose of the trinocular head in the YR0230?
The trinocular head allows for simultaneous viewing through two eyepieces while providing an additional port for a camera, enabling documentation and sharing of observations without disrupting the viewing experience of others.
What types of samples can be observed with the YR0230?
The YR0230 is designed to observe transparent and live samples, such as cell cultures, liquid deposits, and other biological specimens, making it suitable for various research applications.
How does the Kohler illumination system enhance microscopy?
The Kohler illumination system provides uniform lighting across the specimen, which improves contrast and clarity, ensuring that details are visible and accurately represented in observations.
What is the significance of the infinity optical system?
The infinity optical system allows for improved optical performance by minimizing aberrations and ensuring that the image remains clear and focused, which is essential for high-resolution imaging.
Can the YR0230 be used for fluorescence microscopy?
Yes, the YR0230 can be equipped with optional fluorescent accessories to facilitate fluorescence microscopy, making it versatile for a range of experimental setups.
What are the dimensions of the working stage on the YR0230?
The working stage of the YR0230 measures 160 x 250 mm, allowing ample space for a variety of sample containers, including petri dishes and culture bottles.
Is the focus adjustable on the YR0230?
Yes, the YR0230 features coaxial coarse and fine focusing adjustments, allowing users to achieve precise control over the focus for detailed observations.
Pros and Cons
Pros
- High-quality optical performance with infinity optical system
- Versatile trinocular head for enhanced usability
- Coaxial focusing system for precise adjustments
- Kohler illumination system ensures excellent lighting
- Wide field eyepiece for comfortable viewing
Cons
- Higher price point compared to basic models
- Requires regular maintenance for optimal performance
Field Usage
The YR0230 inverted microscope is extensively used in various fields of research and laboratory settings. Its ability to observe live specimens makes it invaluable for biologists, pharmacologists, and medical researchers. In cell biology, it aids in studying cellular structures and behaviors, allowing researchers to monitor cell growth and lifecycle stages effectively.
In microbiology, the microscope helps in examining microbial cultures, providing insights into behavior and interactions of microorganisms. Its capabilities also extend to the study of materials science, where researchers can analyze liquid crystals and other materials under specific conditions.
Moreover, the YR0230's ability to accommodate various accessories and objectives allows for tailored applications, such as phase contrast microscopy, which enhances visualization of transparent specimens without staining.
Recommendations
For laboratories looking to invest in the YR0230 inverted microscope, it is recommended to consider additional accessories such as phase contrast objectives and fluorescent attachments to expand its functionality. Regular maintenance and calibration are essential to ensure the instrument's longevity and optimal performance.
Training for users on optimal usage techniques can enhance the effectiveness of the microscope in research settings. Furthermore, when selecting this microscope, consider the specific research needs and types of specimens that will be observed to maximize the benefits of its advanced features.
