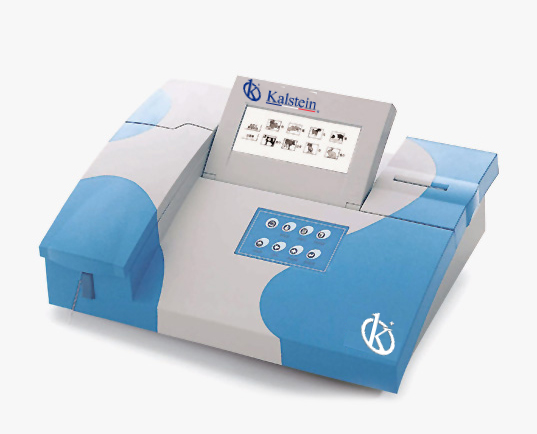

Understanding the Operating Principle and Scientific Basis of the YR06077 Chemical Veterinary Analyzer
The YR06077 Chemical Veterinary Analyzer is a sophisticated instrument designed for veterinary applications, capable of performing a wide range of tests with precision. Understanding its operating principles and scientific basis is critical for effective utilization and accurate results. This article delves into the foundational science and the workings of the YR06077, empowering users to maximize its capabilities.
Principle of Operation
The YR06077 operates primarily on the principle of absorbance, which is integral to spectrophotometry. This technique involves measuring the amount of light absorbed by a sample at specific wavelengths. The key formula governing this process is Beer-Lambert Law, expressed as:
A = εcl
Where:
- A = absorbance
- ε = molar absorptivity coefficient
- c = concentration of the analyte
- l = path length of the sample
This relationship highlights how absorbance is directly proportional to concentration, allowing for quantitative analysis of various substances in veterinary samples.
Optical System of the YR06077
The optical system of the YR06077 is bicromatical, featuring seven operational wavelengths: 340, 405, 500, 546, 578, 620, and 670 nm. This diverse range enables the analyzer to target specific substances, optimizing the accuracy of the tests conducted. The halogen lamp used as the light source ensures stable light output across these wavelengths. With a precision of ±2 nm in wavelength accuracy and a bandwidth of 10 nm, the YR06077 provides reliable readings.
Common Applications in Veterinary Medicine
The YR06077 is adept at performing various tests pertinent to veterinary diagnostics, including but not limited to blood chemistry, serum analysis, and electrolyte testing. It supports up to 12 types of animals, with 34 fixed tests and the ability for users to define an additional 20 tests. The flexibility of this device makes it invaluable in clinical veterinary settings, where precise and rapid results are paramount.
Data Management and Output Features
Data management is enhanced through the YR06077’s USB interfaces, allowing for easy connection with keyboards and mice. The built-in printer or optional external printing provides immediate results, crucial in clinical settings where time is of the essence. Additionally, the device can hold up to 200 test parameters and store results of up to 3000 samples, ensuring an efficient workflow.
Quality Control and Real-Time Reaction Curve Visualization
Quality control is integral to the functioning of the YR06077. The analyzer provides real-time visualization of reaction curves, enabling users to monitor the progress of chemical reactions as they occur. This feature aids in identifying inconsistencies or potential issues during testing, fostering trust in the obtained results.
Technical Specifications of the YR06077
| Specification | Details |
|---|---|
| Model | YR06077 |
| Principle | Absorbance |
| Photometric Range | -0.500-3.500 Abs |
| Resolution | 0.001 Abs (displayed), 0.0001 Abs (calculated) |
| Light Source | Halogen lamp |
| Wavelengths | 340, 405, 500, 546, 578, 620, 670 nm |
| Wavelength Accuracy | ±2 nm |
| Memory | 200 test parameters, up to 3000 sample results |
| Dimensions (mm) | 460 x 330 x 190 |
| Power Supply | AC 110V/220V, 50Hz/60Hz |
Frequently Asked Questions
What is the primary function of the YR06077 Chemical Veterinary Analyzer?
The primary function of the YR06077 is to perform various chemical analyses in veterinary medicine, allowing for accurate diagnostic testing of biological samples from animals.
How does the absorbance principle work in the YR06077?
The absorbance principle works by measuring the amount of light absorbed by a sample at specific wavelengths, which is directly related to the concentration of the analyte present in the sample.
What types of tests can be performed using the YR06077?
The YR06077 can perform a variety of tests including blood chemistry, serum analysis, and electrolyte testing, supporting multiple animal types with both fixed and customizable assays.
What are the advantages of real-time reaction curve visualization?
Real-time visualization of reaction curves allows users to monitor the progression of tests, thus providing immediate feedback and enabling quick identification of potential issues, ensuring the accuracy of results.
How does the quality control feature enhance the reliability of the YR06077?
The quality control feature enhances reliability by allowing consistent monitoring of test parameters and results, ensuring that any deviations are detected promptly, thus maintaining diagnostic accuracy.
What should be considered when setting up the YR06077 in a laboratory?
When setting up the YR06077, consider factors such as ambient temperature, humidity, and ensuring appropriate electrical supply and connectivity for optimal performance and reliability.
How can I request a quote for the YR06077 Chemical Veterinary Analyzer?
To request a quote for the YR06077, please contact Kalstein directly through their official channels or visit their online quote request service for prompt assistance.
