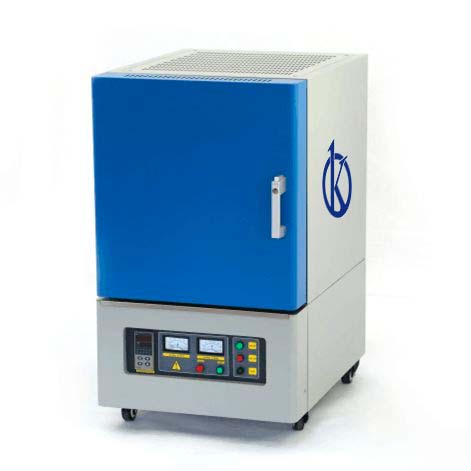

Understanding the Operating Principle and Scientific Foundation of the YR05274 Muffle Furnace
The YR05274 Muffle Furnace is an essential piece of laboratory equipment, designed to provide high temperatures for varied applications such as material annealing, sintering, and quality testing. This article provides a comprehensive analysis of its operating principles and the scientific foundations that underpin its design and functionality.
Principle of Operation of the YR05274 Muffle Furnace
The YR05274 operates on the principle of thermal conduction. The furnace achieves maximum temperatures of up to 1700°C, thanks to its high-quality heating elements and well-insulated chamber. The dual-layer carbon steel casing ensures that the heat is efficiently retained while maintaining a safe external temperature, crucial for user safety.
At the core of its operation is the use of polycrystalline alumina fiber bricks which act as effective insulators. These bricks not only withstand high temperatures but also minimize energy loss. This design choice is significant because it allows the furnace to reach and maintain high temperatures quickly, enhancing productivity in laboratory processes.
Scientific Foundations Behind Design Choices
The design of the YR05274 is grounded in several scientific principles, including heat transfer and material science. The choice of materials such as the aluminum fiber bricks is vital for achieving optimal thermal efficiency. The high purity of these materials ensures minimal contamination during high-temperature procedures, which is essential in sensitive applications.
The muffle furnace employs a PID control system with 30 programmable segments. This technology allows precise temperature control by adjusting the heating elements based on feedback from temperature sensors. Such precision is crucial for applications requiring strict adherence to thermal profiles.
Applications of the YR05274 Muffle Furnace
The YR05274 is widely used in various fields, including academic research, industrial quality testing, and material analysis. Its ability to reach high temperatures makes it suitable for sintering materials, a process where powders are heated to a point where they bond without melting completely.
In university laboratories, it is employed for tests involving ceramics and metals, ensuring reliable results due to its controlled heating environment. The furnace's versatility also extends to environmental analysis, where it is used for sample incineration, providing accurate data for further evaluations.
Key Technical Specifications of the YR05274
| Model | Chamber Size (DxWxH) (cm) | Capacity | Max Temperature | Continuous Working Temperature | Heating Element | Thermocouple Type | Operating Voltage | Max Power | Weight |
|---|---|---|---|---|---|---|---|---|---|
| YR05274 | 30x20x12 | 7.2 | 1700°C | ≤ 1600°C | High purity alumina fiber | K type | 220-380V | 1-9KW | 84 kg |
Maintenance and Care for the YR05274
Regular maintenance is crucial for ensuring the longevity and reliability of the YR05274 Muffle Furnace. Users should routinely check the heating elements for wear and tear, as well as inspect the insulation materials for any signs of degradation. Additionally, it’s important to ensure that the temperature sensors are calibrated to maintain accuracy.
Cleaning the interior of the furnace post-operation is necessary to prevent contamination of future samples. A gentle cleaning solution should be used, taking care not to damage the high-purity materials of the internal bricks.
Common Challenges and Troubleshooting Techniques
Despite its robust design, users may encounter challenges when operating the YR05274. Common issues include inconsistent heating or failure to reach desired temperatures. Below is a troubleshooting guide to help diagnose and resolve such problems:
| Symptom | Probable Cause | Diagnostic Steps | Solution |
|---|---|---|---|
| Equipment does not power on | Power supply issue | Check the power source and connections | Ensure power supply is functional and connections are secure |
| Error code E-03 | Faulty thermocouple | Inspect the thermocouple for damage | Replace the thermocouple if necessary |
| Inconsistent readings | Calibration issue | Verify calibration settings | Recalibrate the furnace |
Frequently Asked Questions
What materials can be processed in the YR05274 Muffle Furnace?
The YR05274 is designed to process a variety of materials, including ceramics, metals, and other substances requiring high-temperature treatment. Its controlled environment ensures minimal contamination and reliable results.
How should the YR05274 be installed for optimal performance?
For optimal performance, the YR05274 should be installed in a well-ventilated area, away from direct sunlight or moisture. Quick access to the power source and a stable surface for leveling are also important.
What safety features are included in the YR05274 Muffle Furnace?
The YR05274 includes several safety features such as an automatic shut-off mechanism when the door is opened and a dual-layer casing to prevent overheating on the exterior, ensuring user safety at all times.
Can the YR05274 Muffle Furnace be customized with additional features?
Yes, the YR05274 can be customized with various accessories, including different chamber sizes, touchscreen controls, and software options for enhanced usability. Customers should specify their requirements at the time of order.
What is the expected lifespan of the YR05274 Muffle Furnace?
The expected lifespan of the YR05274 Muffle Furnace is typically around 10 years, depending on usage frequency and maintenance practices. Regular checks and timely replacement of worn-out parts can extend its service life.
What type of power supply is required for the YR05274?
The YR05274 operates on a voltage range of 220-380V, and users should ensure their facility’s power supply aligns with these specifications to avoid operational issues.
How can I request a quote for the YR05274 Muffle Furnace?
For a personalized quote, please contact our sales department or visit our online platform where you can find additional details about the YR05274 Muffle Furnace.
