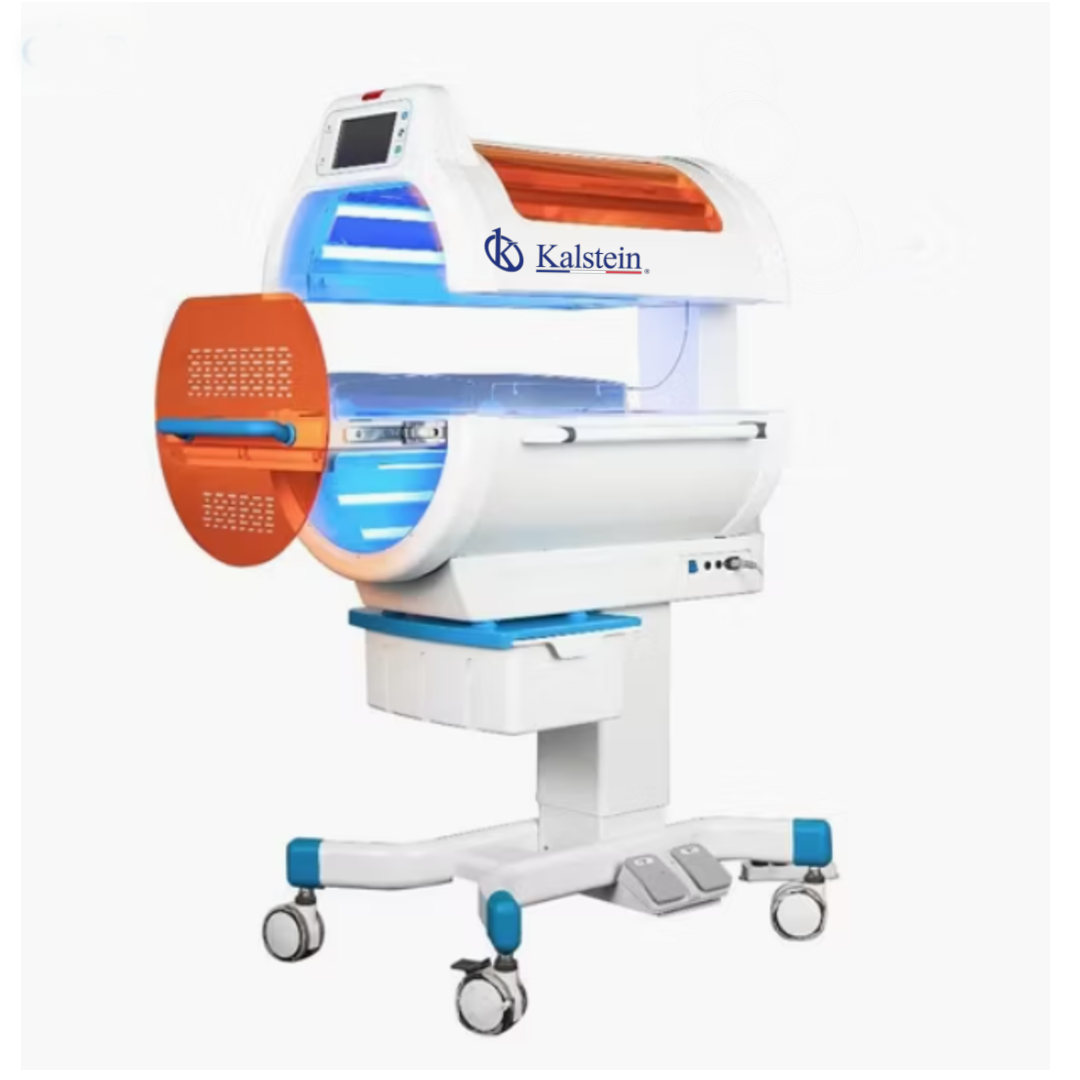

Understanding the Operating Principle and Scientific Foundation of the YR06671 Tunnel Phototherapy System
The YR06671 Tunnel Phototherapy System is an advanced medical solution specifically designed for the effective treatment of neonatal jaundice. This article delves into the scientific principles and operational mechanisms of the YR06671, providing insights for operators and medical professionals on how this equipment works and its significance in clinical settings.
Technical Specifications of the YR06671
Specifications | Features |
Model | YR06671 |
Light Source | LED (Light Emitting Diode) |
Effective Wavelength | 400nm - 550nm |
Irradiation Intensity | Adjustable (33%, 66%, 100%) |
Maximum Irradiance (Upper) | 3600 μw/cm² |
Maximum Irradiance (Lower) | 3200 μw/cm² |
Effective Irradiation Area | 400mm x 250mm |
Irradiation Uniformity | > 0.4 |
Lift Stroke Range | 0 - 200mm |
Power Supply | AC 100V - 240V |
Power Consumption | ≤ 250VA |
Safety Alarms | Temperature, End of treatment, Bed extraction |
Shipping Dimensions | 98 x 65 x 115 cm (Approx. based on industrial standard) |
Equipment Weight | Approx. 65 kg (Net) / 85 kg (Gross with packaging) |
Scientific Principles Behind the YR06671
The YR06671 Tunnel Phototherapy System operates based on the principles of phototherapy, specifically targeting the breakdown of bilirubin. Bilirubin is a yellow compound produced during the normal breakdown of red blood cells, and its accumulation results in jaundice, a common condition in neonates.
The fundamental principle of phototherapy is that light exposure at specific wavelengths can facilitate the conversion of bilirubin into water-soluble isomers, which can then be easily excreted by the body. The YR06671 employs LED technology, delivering light primarily within the 400nm to 550nm range, which is optimal for bilirubin degradation.
Design Features of the YR06671
The design of the YR06671 incorporates several key elements to maximize treatment efficacy and safety:
- 360° Irradiation Coverage: The device is engineered to provide uniform light exposure, eliminating shadow areas that could reduce treatment effectiveness.
- Adjustable Light Intensity: The YR06671 allows operators to select from three intensity levels (33%, 66%, 100%) tailored to the severity of jaundice in the neonate.
- Automatic Temperature Control System: This feature maintains an optimal thermal environment for the patient throughout the treatment process.
- Visual and Operational Safety: Equipped with a 360° alarm light, the system provides immediate alerts for operators, along with a white LED bulb to monitor the skin color without interrupting therapy.
Common Applications in Clinical Settings
The YR06671 is primarily utilized in neonatal intensive care units (NICUs) and pediatric departments. It is ideal for treating jaundice conditions in premature and full-term infants alike. By rapidly reducing bilirubin levels, the system helps to shorten the duration of jaundice and improve patient outcomes.
In addition, the YR06671 is recommended for use in specialized clinics and high-complexity health centers where effective and safe treatment for neonatal jaundice is crucial.
Advantages and Limitations of the YR06671
Advantages:
- Comprehensive Treatment: Offers 360° irradiance that accelerates bilirubin breakdown.
- Intensity Control: Facilitates tailored treatment based on individual patient needs.
- Easy Maintenance: The design allows for straightforward cleaning and disinfection of the infant's chamber.
- Intelligent Alerts: Includes voice and text reminders for treatment completion.
Limitations:
- Power Consumption: Requires a power input of ≤250VA, which should be considered during electrical planning of the unit.
- Size Limitation: Effective irradiation area of 400mm x 250mm, suitable for standard neonates.
Frequently Asked Questions
What are the operational principles of the YR06671 Tunnel Phototherapy System?
The YR06671 operates on the principle of phototherapy, which utilizes specific wavelengths of light to convert bilirubin into non-toxic, water-soluble forms that can be eliminated from the body.
How does the adjustable intensity feature work on the YR06671?
The YR06671 allows operators to select between three intensity levels (33%, 66%, 100%) depending on the bilirubin levels and the medical protocol established for the neonate's treatment.
What safety features are integrated into the YR06671 system?
The system includes a 360° alarm light for immediate visual alerts, an adjustable temperature control to optimize patient comfort, and a white LED for monitoring skin color without interrupting treatment.
Can the YR06671 be used in different clinical environments?
Yes, the YR06671 is designed for use in various clinical settings, including NICUs, pediatric departments, specialized clinics, and high-complexity health centers.
What is the expected lifespan of the YR06671's lighting system?
The lighting system of the YR06671 has a usage range of up to 49,999 hours, ensuring prolonged operational durability.
What precautions should be taken when using the YR06671?
It is essential to monitor the temperature ranges of the skin (33°C to 38.5°C) and the cabinet (16°C to 42°C) to ensure patient safety throughout the treatment process.
How do I maintain the YR06671 to ensure optimal performance?
Regular cleaning and disinfection of the infant chamber, along with routine checks of the light source and temperature sensors, are vital for maintaining the YR06671's performance.
