Operation Lamp
Surgical lamps are special lamps designed to illuminate the operating room area, allowing optimal visualization of small, low-contrast objects at varying depths in incisions and body cavities. Its primary goal is to provide adequate lighting during a surgical procedure.
The lamps should be white as in the operating room the physician needs to be able to observe the color of any organ or tissue as this is an indicator of the condition and health of the patient. These lamps should also not generate infrared (IR) or ultraviolet (UV) radiation because it can damage or injure body tissue that is exposed during surgery.

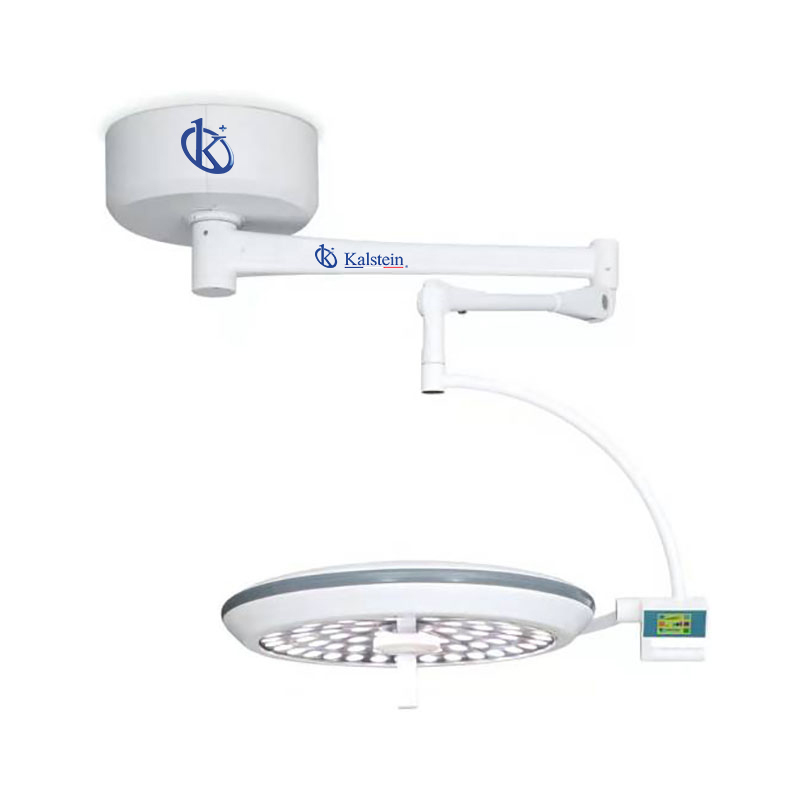

![YR02124](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/YR02124-400x350.jpg?strip=all&lossy=1&ssl=1)
Types of Operating Lamp that a laboratory may need
![YR02107](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/YR02107-250x250.jpg?strip=all&lossy=1&ssl=1)
Operation Lamp YR02106 // YR02112
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable...
![YR02127](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/YR02127-250x250.jpg?strip=all&lossy=1&ssl=1)
Operation Lamp YR02125 // YR02140
Our ergonomic, sterile operating concept allows for the simple and flexible control of all functions by the surgical team..
![YR02123](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/YR02123-250x250.jpg?strip=all&lossy=1&ssl=1)
Operation Lamp YR02115 // YR02123
Light focus controlled by the sterile handle. One button for max. illuminance. Endo mode. Optional adjustable color temperature...
![YR05996](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/YR05996-250x250.jpg?strip=all&lossy=1&ssl=1)
Operation Lamp YR05996 // YR06004
Cold light operation lamp meets the requirements of lighting for surgical operations in special circumstances or where there is no power supply...
Our Top Selling Operating Lamp
Adopt imported LED cold light source.
Nano coating and die-cast aluminum enclosure creating a streamlined excellent cooling effect.
Intelligent touch control screen.
The removable handle sheath can be cleaned and disinfected.
The no welding titanium alloy arm, imported spring arm is lifted and lowed easily and freely.
The imported switch power supply is adopted to control the voltage, making the working voltage permanently stable.
Adjustable temperature, R9 features that enhance the red color rendering index.
The service life of LED shadowless lamp is long (50,000h).
Model | YR02106 | YR02107 | YR02108 | YR02109 | YR02110 | YR02111 | YR02112 |
Illumination at 1m(lux) | 160000/160000 | ||||||
Illumination at 1m on Endo model(lux) | 15000 | ||||||
Light field diameter D10 mm | 180±40/180±40 | 180-300 | |||||
D50 mm | 110±35/110±35 | 180-300 | |||||
Depth of illumination L1+L2 mm | 150 | >1000 | |||||
Color rendering index(Ra) | 100≥Ra≥85 | ≥97 | |||||
Red color index R9 | R9≥97 | ≥97 | |||||
Optional color temperature(K) | 6700K ≥Tc≥3500k | 6700K ≥Tc≥3000k | 4500K±500K | ||||
Average bulb life (hours) | 50000h | >50000h | |||||
Heat-to-light ratio(mW/m ²lx) | <6 | ||||||
Power supply | 110-240V | AC110-240V 50/60Hz | |||||
Input power(VA) | 150W/150W | ||||||
Ceiling height for installation(cm) | 270-320 cm | 260 cm |
![YR02108](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/YR02108-350x350.jpg?strip=all&lossy=1&ssl=1)
Analysis of the best Operating Lamp for your laboratory
![Female surgeon prepares lamp in operating room](https://www.kalstein.com.bo/wp-content/uploads/2022/10/female-surgeon-prepares-lamp-in-operating-room-2022-02-02-03-59-03-utc-scaled.jpg)
Different Kinds of Surgical Operation Lamps
The lamps used in the operating room are conditioned to provide optimal lighting during the operation ...
![Operation table with large lamps above inside contemporary surgery room](https://www.kalstein.com.bo/wp-content/uploads/2022/10/operation-table-with-large-lamps-above-inside-cont-2021-09-24-03-11-38-utc-scaled.jpg)
Surgical lamps: models and applications
Proper lighting in an operating room is so important, as it offers a number of benefits to the doctor and the...
![Male surgeon getting ready for surgery, fixing lamps and adjusting light in operation room](https://www.kalstein.com.bo/wp-content/uploads/2022/10/male-surgeon-getting-ready-for-surgery-fixing-lam-2021-08-26-15-28-03-utc-scaled.jpg)
Surgical lamp: How should it be used?
Surgical lamps are devices used to illuminate the surgical field for a long time allowing an optimal visualization...
![Closeup of modern medical/surgical lamp in operation room in the](https://www.kalstein.com.bo/wp-content/uploads/2022/10/closeup-of-modern-medical-surgical-lamp-in-operati-2021-09-03-04-19-53-utc-scaled.jpg)
What is the name of the lamp of an operating room?
Surgical lamps, are those whose primary function is to illuminate the field of surgery and facilitate the visibility ...
Catalog of Models of Operating Lamp on Offer
-
Operation Lamp YR02125 // YR02140
Select options This product has multiple variants. The options may be chosen on the product page -
LED Surgical Light YR02113 – YR02114
Select options This product has multiple variants. The options may be chosen on the product page -
Operation Lamp YR02115 // YR02123
Select options This product has multiple variants. The options may be chosen on the product page -
Operation Lamp YR02106 // YR02112
Select options This product has multiple variants. The options may be chosen on the product page -
LED Shadowless Operating Lamp YR02124
-
Operation Lamp YR05996 // YR06004
Select options This product has multiple variants. The options may be chosen on the product page -
LED Surgical Light YR02104 – YR02105
Select options This product has multiple variants. The options may be chosen on the product page
Guides to become an expert in Operating Lamp
Operating room lamps: types of light - Medical Sector
Operating room or surgical lamps are a special type of lamps that illuminate the surgical area for optimal viewing...
Revolutionizing operating room lighting
One of the most relevant elements to perform efficient and quality work within an operating room is lighting...
Operating lights How should an operating room be lit?
Lighting in an operating room is considered one of the key elements for the success of surgical procedures ...
Operating lamp: what color should the lighting have in an operating room?
One of the aspects that is important that is part of the needs of a surgeon at the time of operating, is lighting; in operating rooms certain basic elements are needed for the surgeon to do his job such as: a sterilized environment, gowns and surgical material...
![25x26,71 cm (1)](https://eibf7xhmv73.exactdn.com/en/wp-content/uploads/2024/05/25x2671-cm-1-88x92.png?strip=all&lossy=1&ssl=1)
Frequently Asked Questions about Operating Lamps from our customers
How do you know the prices of the Operating Lamp?
To know the price of the Lamp of Operation we invite you to send us an email with your request through the contact form.
What are the delivery times of the Operating Lamp?
The delivery time of your Kalstein product it will depend on the following:
- If the equipment of your interest is in stock or if otherwise it must be manufactured.
- The type of freight you have chosen may be; air or sea.
- Equipment in stock:
- Delivery Time ( Aerial ): 15 -30 days .
- Delivery Time ( Maritime ): 45-60 days .
- Equipment not in stock:
- Delivery Time ( Aerial ): 30 -60 days .
- Delivery Time ( Maritime ): 60-90 days .
How to make a purchase of the Operating Lamp ?
It may perform your purchase through :
- By email: s[email protected]
- By telephone: +33 (0) 1 78 95 87 02
- Trade electronic : Through from Kalstein's official website in your country .
How does the warranty work?
At Kalstein we make it easy for our customers to provide induction and technical support through new online methods. You can visit our induction, technical assistance and guidance videos provided by a Kalstein team through our induction channel Youtube (Kalstein English). HERE
Can I request an online quote?
Of course, you can request a quote for the Kalstein team of your interest, directly from our website official. U Once you've identified your preferred model, do click k HERE
