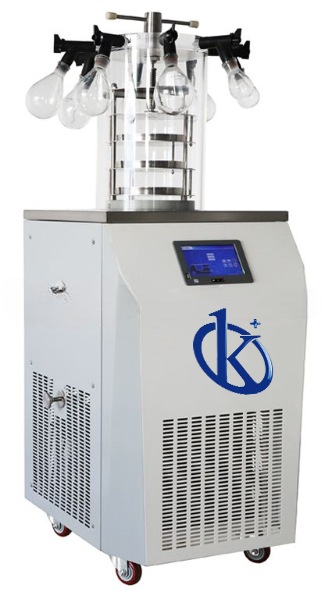

Principles of Operation and Scientific Foundations of the YR05201 Vertical Electric Heating Laboratory Freeze Dryer
The YR05201 Vertical Electric Heating Laboratory Freeze Dryer is a cutting-edge piece of laboratory equipment widely employed in various sectors such as medicine, pharmacy, biological research, chemistry, and food preservation. This article delves into the scientific principles underpinning the operation of the YR05201, elucidating its mechanisms, technical specifications, and applications.
Understanding Freeze Drying
Freeze drying, or lyophilization, is a process that removes water from a material after it is frozen and placed under a vacuum. The fundamental principle involves sublimation, where ice transforms directly into vapor without passing through the liquid phase. This process helps to preserve the structural integrity and biochemical properties of the material.
The YR05201 utilizes advanced techniques in its design to ensure efficient sublimation. The combination of a vertical structure and electric heating not only optimizes space but also enhances energy efficiency. The equipment maintains a low temperature during the initial freezing phase, ensuring that the product’s quality is preserved.
Key Technical Specifications of the YR05201
| Specification | Value |
|---|---|
| Model | YR05201 |
| Freeze-Drying Area | 0.09 m² |
| Tray Material | Ф200mm, 3 Layers |
| Storage Temperature | -40 ~ +60°C |
| Water Absorption Capacity | 6 kg/24h |
| Final Vacuum | ≤ 5Pa (no load) |
| Power | 1800W |
| Weight | 105 KG |
| Dimensions | 630×580×1455mm |
Mechanisms Behind the YR05201's Operation
The YR05201 employs several critical mechanisms to facilitate the freeze-drying process effectively:
- Process Fixation: The process fixation feature ensures that the parameters of the freeze-drying process are controlled and monitored, which is essential for achieving consistent results.
- Electric Shelf Heating Control: This feature allows for precise control of the heating rate, which can be vital for the quality of the final product.
- 7-Inch Touch Screen: The intuitive interface provides operators with easy access to controls and monitoring features, enhancing usability.
- Stainless Steel Construction: The cold trap and operational table made from stainless steel offer durability and ease of cleaning, which is critical in laboratory settings.
- Flexible Vacuum Switching: The YR05201 supports flexible switching between various vacuum units (Pa, mBar, etc.), catering to different operational needs.
Applications of the YR05201 in Different Sectors
The versatility of the YR05201 allows it to be deployed in various sectors:
- Pharmaceuticals: The freeze dryer is essential for preserving vaccines, antibiotics, and other sensitive compounds.
- Food Industry: It is widely used for freeze-drying fruits, vegetables, and ready-to-eat meals, enhancing shelf life while retaining flavor and nutrients.
- Biological Research: Researchers utilize the YR05201 for lyophilizing samples to ensure long-term storage without degradation.
- Chemistry: The equipment aids in the preservation of chemical compounds that require a dry environment for stability.
Common Troubleshooting for the YR05201
Like any sophisticated equipment, the YR05201 may encounter issues requiring troubleshooting. Here is a symptom-cause-solution table to assist operators:
| Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| Equipment Does Not Power On | No power supply | Check power source and connections. |
| Error Code E-03 | Overheating detected | Allow equipment to cool before restarting. |
| Inconsistent Drying Results | Improper process parameters | Review and adjust drying settings. |
Frequently Asked Questions
What is the maximum vacuum level of the YR05201?
The YR05201 can achieve a final vacuum level of ≤ 5Pa under no load conditions, ensuring effective moisture removal during the freeze-drying process.
How does the electric heating affect the freeze-drying process?
The electric heating allows for controlled warming of the shelves, which is critical in ensuring the sublimation of ice and achieving uniform drying without damaging the sample.
What maintenance is required for the YR05201?
Regular cleaning of the stainless steel components and calibration of the temperature and vacuum settings are essential for maintaining the performance and longevity of the YR05201.
Can the YR05201 be used for biological samples?
Yes, the YR05201 is ideal for biological samples as it preserves the structural and biochemical integrity during the freeze-drying process, making it suitable for long-term storage.
What is the typical lifespan of the YR05201?
With proper maintenance and adherence to operational guidelines, the YR05201 can provide reliable performance for several years, minimizing the need for replacements.
How do I calibrate the YR05201 after installation?
Calibration involves verifying the temperature readings and vacuum levels using standard calibration procedures outlined in the user manual, ensuring accurate performance during operation.
What are the advantages of using the YR05201 over traditional drying methods?
The YR05201 offers superior preservation of sample integrity, enhanced storage capabilities, and reduced degradation of sensitive materials compared to conventional drying methods, making it a preferred choice in laboratories.
