Description

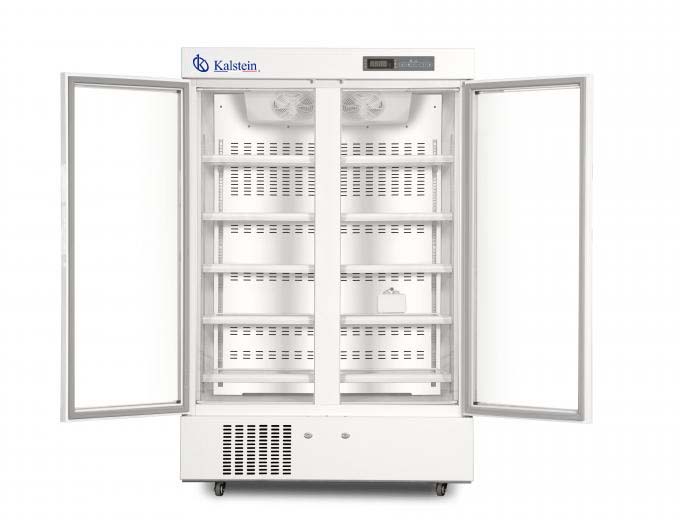

YR05087-1 2~8 Degrees Promed 1006L LED Digital Display Pharmacy Medical Refrigerator for Lab/Hospital
The pharmacy refrigerators are suitable for installation in drug stores, pharmaceutical companies, hospitals, epidemic prevention centers and clinics.
Reliability and Key Features
- High efficiency specialty compressor with known field reliability
- Permanently lubricated cooling fan for safety and longevity
- Forced- air cooling with optimized air distribution system designed
- To achieve maximum temperature uniformity and stability
- Optimized refrigeration system design for more effective cooling and
- Speedy recovery
- Temperature variation within ±3ºC
- Adjustable temperature range 2-8ºC
- Microprocessor control, digital display, and temperature adjustment with an increment of 0.1ºC
- Large digital display screen
Safety
Equipped with a complete temperature alarm system featuring audible buzzer and visible flashing light
Capable of alerting failures due to high and low temperature sensor error, door ajar, , power failure and low battery
Ergonomic Design
- Optimized space utilization design with multi – level and adjustable shelf height to accommodate storage requirement of pharmaceutical products of various kinds.
- Safety lock to prevent unauthorized access
- Caster design and leveling feet
- LED Interior light
Technical Description
| Model | YR05087-1 | |
| Specificaitons | Shelf/drawer | Shelves/10 |
| Cooling method | Forced Air Cooling System | |
| Defrost | Auto | |
| Refrigerant | R600a | |
| Power consumption(kWh/24h) | 6.23 | |
| Noise(db) | 53 | |
| Ambient temperature(℃) | 10~32℃ | |
| Temperature range(℃) | 2~8℃ | |
| Cooling system | Compressor brand/QTY | China Brand/1 |
| Sensor Type | NTC | |
| Temperature controller | Microprocessor | |
| Display | Digital display | |
| Power | Voltage/frequency(V/Hz) | 220/50Hz |
| Power(W) | 425W | |
| Current(A) | 2.4A | |
| Material | Inside material | Color sprayed steel |
| Outside material | Color sprayed steel | |
| Insulation | PURF | |
| Size | Capacity(L/cu.ft) | 1006/35.52 |
| NT./GT.(kg) | 189/213 | |
| Exterior size(W*D*H)(mm) | 1240*820*1900 | |
| Interior size(W*D*H)(mm) | 1100*684*1325 | |
| Package size(W*D*H)(mm) | 1335*945*2000 | |
| CBM | 2.52 | |
| 20GP/40GP/40HQ | 8/18/18 | |
| Alarm | High/low temperature | Y |
| Power failure | Y | |
| Thermostat failure | Y | |
| Backup battery failure alarm | / | |
| Condenser fault alarm | / | |
| Ambient Temperatures | / | |
| Voltage abnormality alarm | / | |
| Door ajar | Y | |
| System abnormal alarm | / | |
| Power failure backup system(alarm) | 8h | |
| Accessories | Foot | / |
| Castor | Y | |
| Outer door/Type | 2/Heating glass door with automatic rebound | |
| Door Lock | 2 | |
| Test hole QTY/diameter | 1/25mm | |
| Lamp | LED | |
| USB port | / | |
| Temperature recorder | Optional | |
| Remote alarm port | Y | |
| RS232/485 port | / | |
| Other | Certification | ISO9001/13485/14001;CE |
