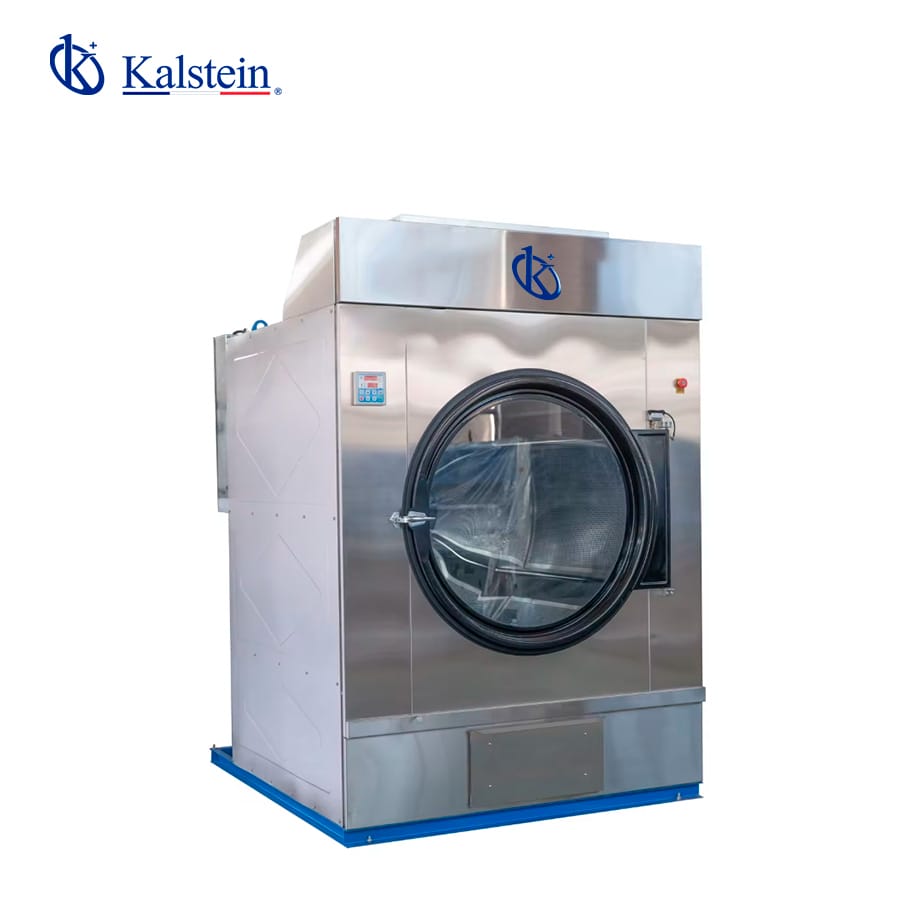

Description
- The fully automated system boasts advanced features like computer-controlled temperature regulation, temperature control devices, and an over-temperature protection mechanism, ensuring both safety and efficiency during operation. With a range of heating options available, including electrical, gas, steam, a combination of electrical and steam, or coal, operators have the flexibility to choose what suits them best.
- Crafted for optimal performance, the cooling fan is meticulously designed to facilitate excellent heat dissipation and achieve the perfect wind speed. Both the drums and panels are designed to prevent contamination and corrosion, safeguarding fabrics.
- Engineered with user convenience in mind, the design allows for easy access to essential parts, simplifying maintenance tasks and enabling swift belt replacement. Furthermore, the large door, which opens 180 degrees, streamlines the loading and unloading process, offering the choice of left or right opening orientations. This system is specially tailored to operate efficiently with gas heating.
Technical Specification
| Model | YR06331 |
| Capacity | 120 Kg |
| Drum Dimension | 1450*1180 mm |
| Drum volume | 1949 L |
| Motor Power | 2.2Kw |
| Fan power | 1.5*2 Kw |
| Steam pressure | 0.4-0.5 Mpa |
| Voltage | 380 V |
| Dimensions |
16301980*2440 mm
|
| Weight | 880 Kg |
| Powered | GAS |
