Description

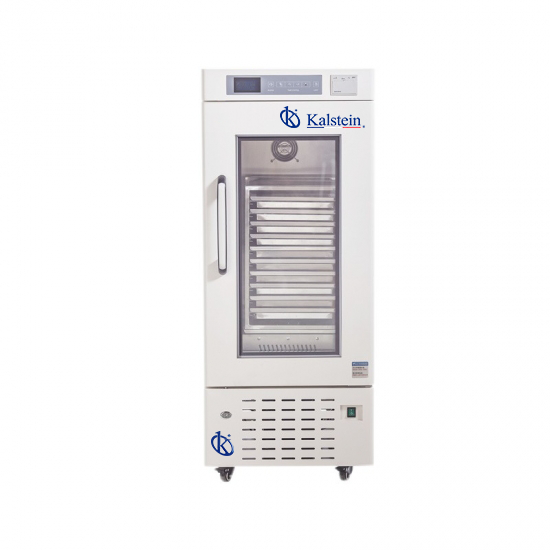

Kalstein blood platelet incubator is integrated with agitator. The agitation system has been designed for continuous quiet operation. it widely used on store blood platelet (20℃ ～24℃), biological reagent (2℃～40℃) and chemical product (2℃～40℃). The applications could be found in hospital, blood bank, research institute, laboratory and universities. The platelet incubator resembles a simple storage cabinet with multiple levels of horizontal flatbed storing units, with a heating element and refrigerating element incorporated in the storage space.
Features
- Constant Temperature: 2℃ of temperature fluctuations
- Themal Printer: Real-time automatic printing of temp, can be optional USB port
- Universal Castor Wheels: Castors with brake
- High-Quality Steel: 304 Stainless steel chamber and 304 stainless steel oscillator
- Micoprocessor control system: Continuously alarm for 72h after power failure. Micoprocessor electronic temperature controller, LED temperature display, the display accuracy is 0.1℃.
- 5 Types Of Alarms: High and low temperature alarm, power failure alarm, Sensor malfunction alarm, Door Ajar, Power failure backup system alarm.
Technical Specifications:
| Model | YR06028 | YR06029 | |
|
Specificaitons
|
Shelf/drawer QTY | Drawer / 5 | Drawer / 10 |
| Cooling method | Forced air cooling | ||
| Defrost | No frost | ||
| Refrigerant | R134a | ||
| Power consumption(kWh/24h) | 2.69 | 4.4 | |
| Noise (db) | 49 | 50 | |
| Ambient temperature (°C) | 10~32 °C | ||
| Temperature range (°C) | 20~24 °C | ||
|
Cooling system
|
Compressor brand/QTY | EMBRACO/1 | |
| Sensor | NTC | ||
| Temperature controller | Microprocessor | ||
| Display | Digital display | ||
|
Power
|
Voltage/frequency (V/Hz) | 220/50Hz | |
| Power (W) | 197W | 280W | |
| Current (A) | 0.9A | 1.27A | |
|
Material
|
Inside material | SUS | |
| Outside material | Colored Spray Steel | ||
| Insulation | PU | ||
|
Size
|
Capacity (L/cu.ft) | 5 | 10 |
| Bloodbags(450ml)/Layers | 10 /5 layers | 20 /10 layers | |
| NT./GT. (kg) | 65/87 | 85/108.5 | |
| Exterior size(W*D*H)(mm) | 520*640*1030 | 520*640*1290 | |
| Interior size(W*D*H)(mm) | 427*360*467 | 432*462*728 | |
| 20GP/40GP/40HQ | 24/48/96 | 32/68/68 | |
|
Alarm System
|
High/low temperature | Y | |
| Power failure | Y | ||
| Sensor malfunction | Y | ||
| Low batery | / | ||
| Door ajar | Y | ||
| Power failure backup system(alarm) | 72h | ||
|
Accessories
|
Caster | Y | |
| Outer door / Type | 1 (Foamed glass door) | ||
| Test hole | Optional | ||
| Light | UV Light | ||
| Temperature recorder | Optional | ||
| Other | Certification | ISO, CE | |
