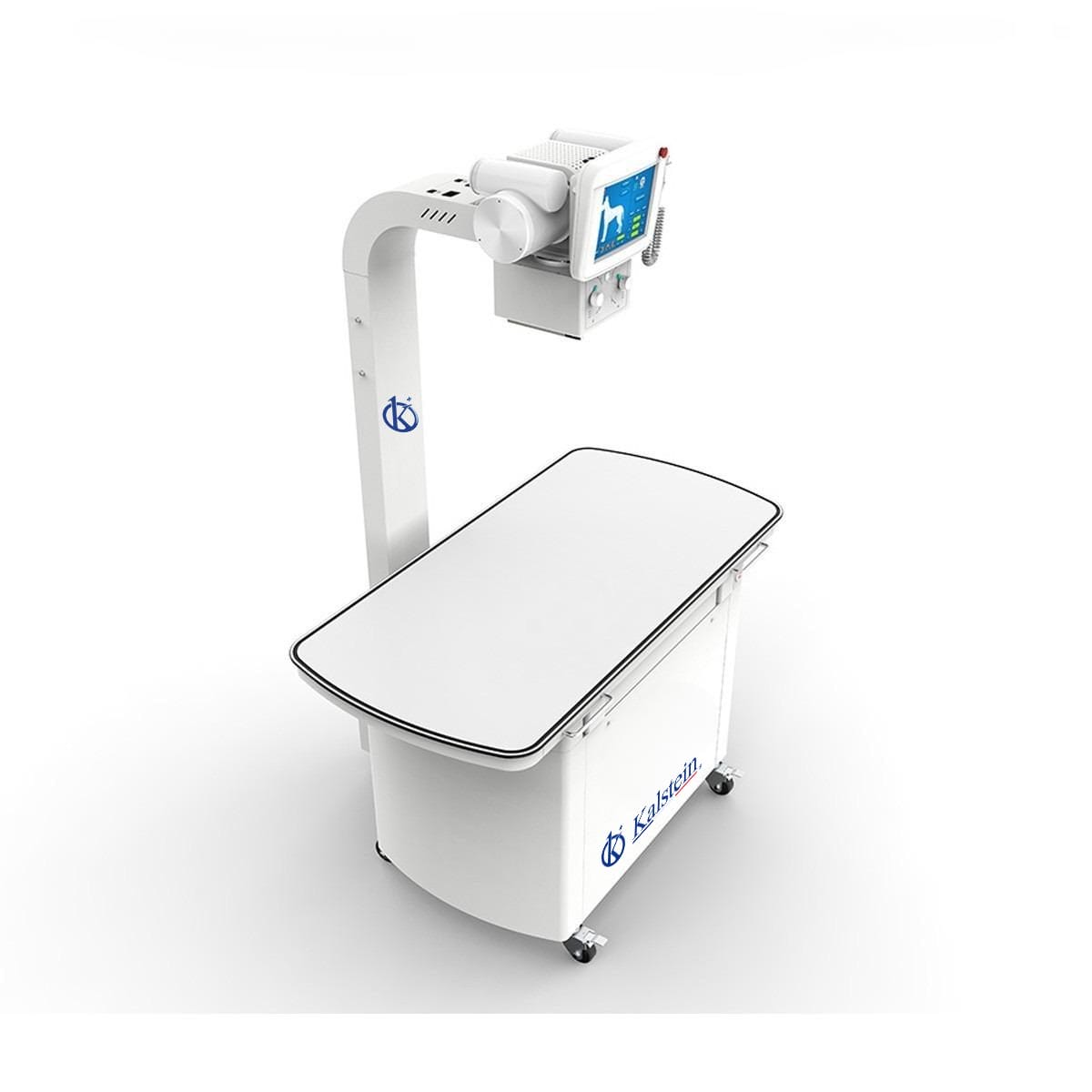

400mA Veterinary Digital X-Ray Machine YR06164

ManufacturerKalstein

Description

400mA HF generator

LCD touch-screen Console

Collimator

X-ray tube

Animal table

JPI grid

Flat panel detector

Imaging workstation computer and LCD monitor

Technical Specifications
Model YR06164
Maximum output power 32kW
Range of tube current 32~400mA
Tube voltage range of radiography 40kv~125kv
Loading time 10~5000ms
mAs range 0.32~400mAs
Input voltage range AC 220V±22V
Max. Tube voltage 120kV
Focus Small focus:1.0mm Large focus:2.0mm
Anode speed 2800 r/min
CPU ≥2.8GHz
Memory 4GB
Disk Capacity 500GB
Medical LCD 19” LCD

Additional information

Weight 105 kg
Dimensions 55 × 48 × 80 cm
