Description

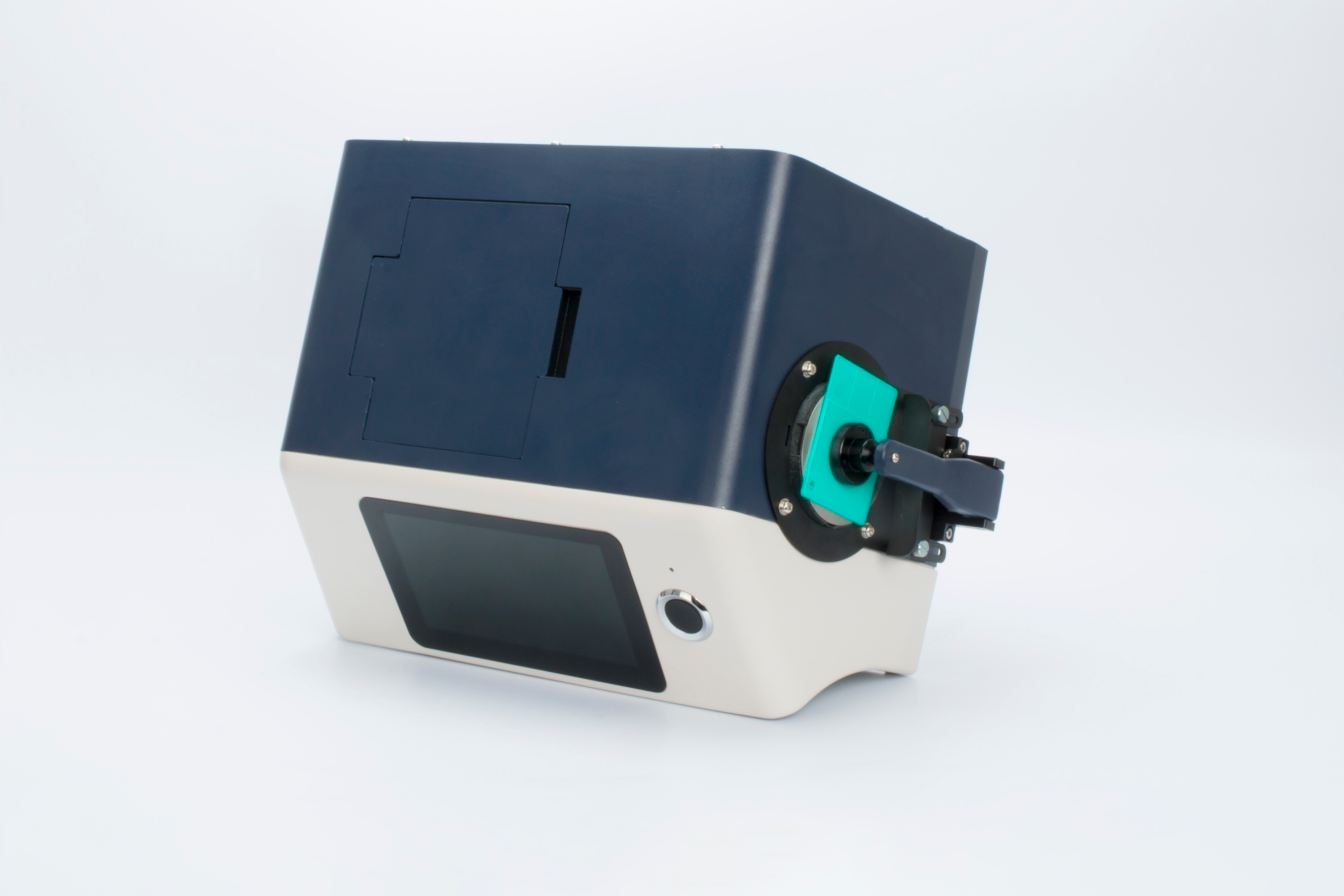

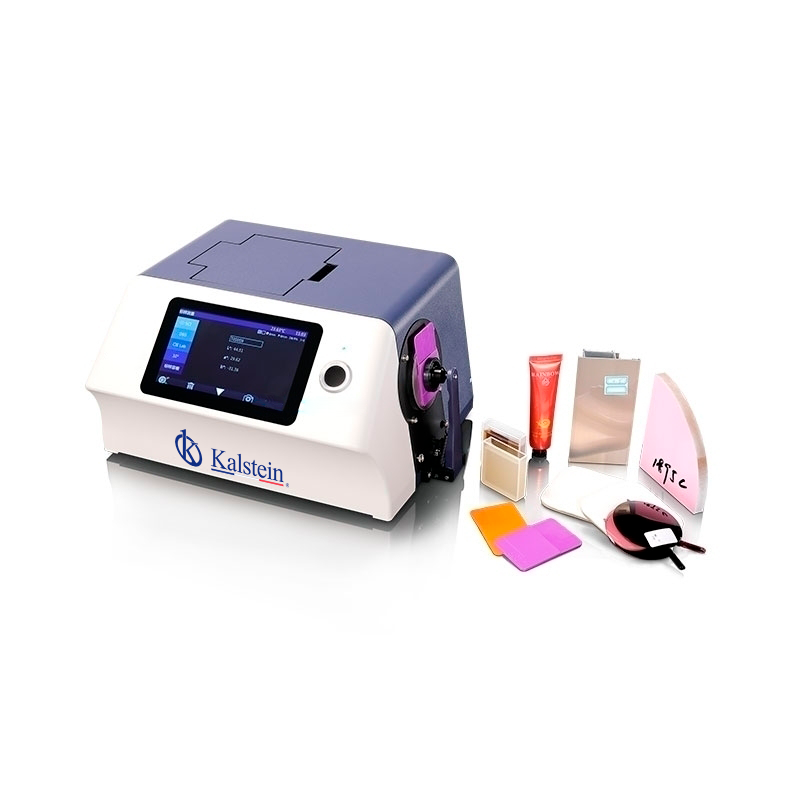

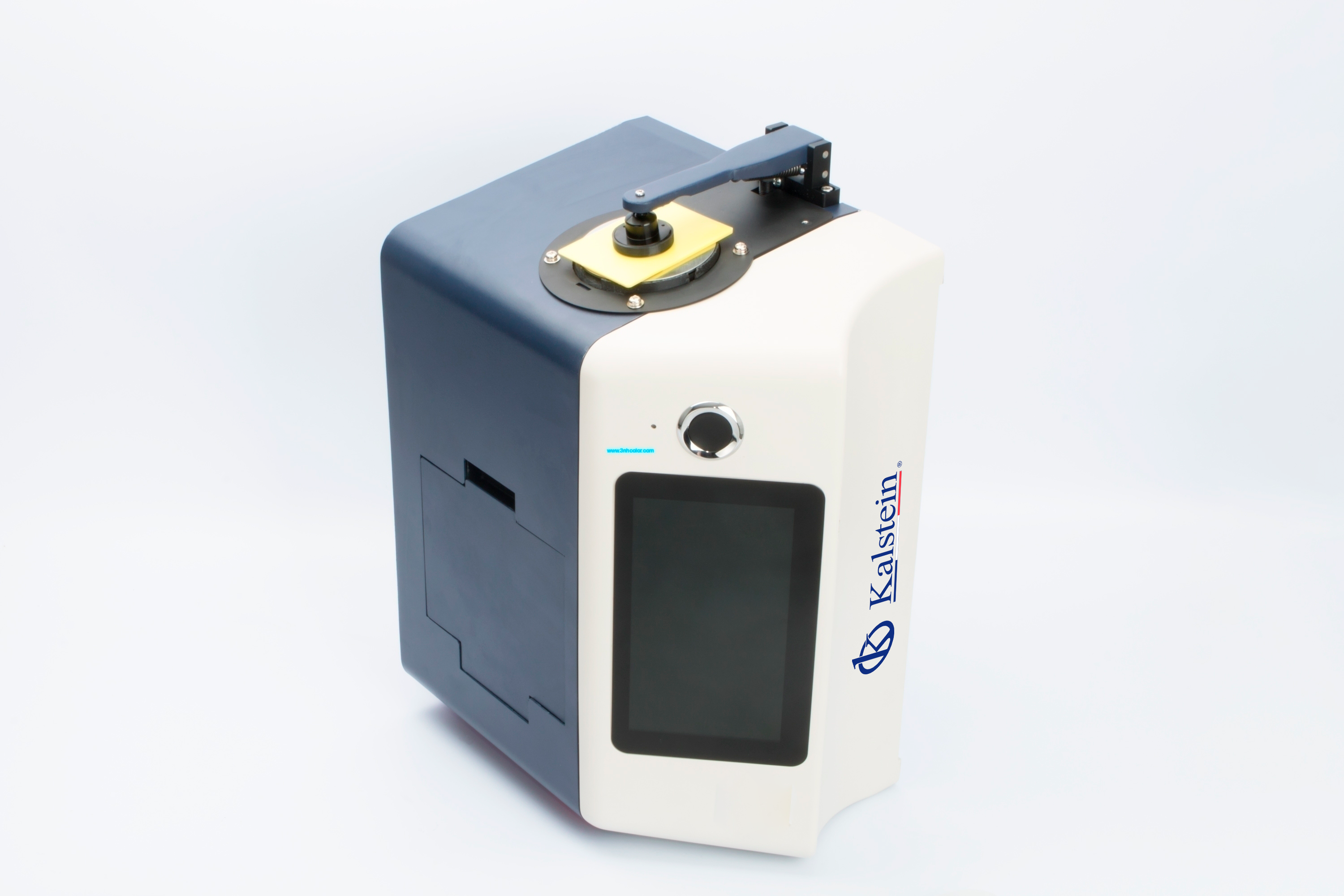

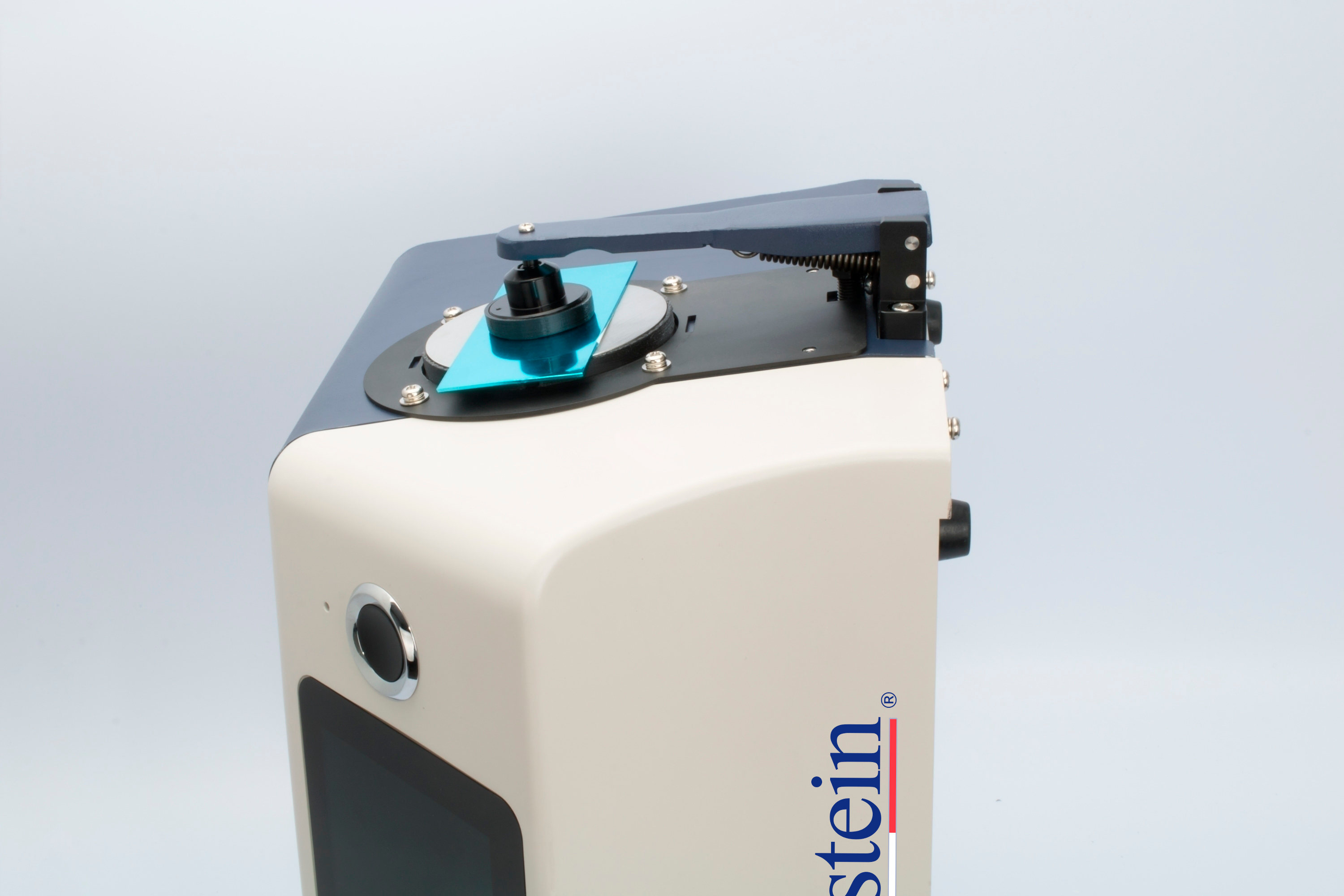

The Benchtop Color Haze Meter YR05479 is an advanced instrument created by Kalstein, utilizing patented technology to accurately measure haze, transmittance, and chromaticity in various materials. Equipped with d/0 transmittance optical geometry and parallel lighting options, it aligns with international standards such as CIE 15 and ASTM D1003/1044, ensuring exceptional precision for materials like glass, plastics, and films. The full-spectrum LED light source and 256-element CMOS sensor provide accurate and consistent results, while the 7-inch capacitive touch screen enhances user interaction and real-time data display.
Market Price
With a market price ranging from approximately $8000 to $8600 USD, the YR05479 haze meter is competitively priced among its peers. This cost-effective range makes it an appealing choice for laboratories and production lines that prioritize precision and stability in quality control processes. Interested buyers can obtain a detailed, personalized quote through the Kalstein Plus platform to meet their specific requirements.
Frequently Asked Questions
- Is this meter suitable for industrial applications?
Yes, it is tailored for both industrial and laboratory environments, particularly for processing plastics, glass, and packaging. - How much data storage capacity does it have?
The meter can store up to 25,000 records, with 5,000 in standard mode and 20,000 in sample mode. - What types of indices does the YR05479 measure?
It measures haze, transmittance, Pt-Co index, Gardner index, and more, all with high precision and stability.
Advantages and Disadvantages
The YR05479 offers several advantages, such as high precision, configurable settings for different light sources, and ongoing monitoring of light and temperature to ensure reliable results. However, its advanced technology might require regular calibration in high-use scenarios to maintain optimal accuracy.
Field Use
This meter is ideal for fields like display screen manufacturing, plastic material processing, and liquid pharmaceutical product analysis, where measuring haze and transmittance precisely is crucial. Its LED lighting system and CMOS sensor offer consistent, accurate results, making it essential for quality control and developing visually critical products.
Recommendations
To enhance the accuracy of the YR05479, regular calibrations are recommended, along with storing it in controlled conditions. A clean, stable environment will prolong the LED light source and sensor lifespan. Its settings also adapt to different sample types and color spaces, increasing its versatility for various applications. Request a personalized quote through Kalstein Plus now and explore how the YR05479 can uplift your quality control procedures.
Specifications
| YR05479 Benchtop Color Haze Meter | |
| Model | YR05479 |
| Optical Geometry | Transmittance:d/0 (diffused illumination, 0-degree viewing angle); similar to CIE15 standard 0/0(parallel illumination, 0-degree viewing angle); Confirms to the standard of ASTM D1003/1044, CIE No.15, GB/T 3978, GB 2893, GB/T 18833, ASTM E308, DIN5033 Teil7 |
| Application | wildly used in the field of glass processing, plastic processing, film manufacturing, display screen processing and packaging industry, liquid pharmaceutical analysis, laboratory etc. |
| Integrating Sphere Size | Φ154mm |
| Light Source | 360~780nm Combined LED Lamp |
| Spectral Separation Device | Concave-Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 360~780nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measurement Aperture | Transmittance: Φ25.4mm |
| Color Spaces | CIE LAB,XYZ,Yxy,LCh,CIE LUV,Musell,s-RGB,HunterLab,βxy,DIN Lab99 |
| Color Difference Formulas | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00, DINΔE99,ΔE(Hunter) |
| Other Colorimetric Data | Haze (ASTM D1003/1044)，transmittance rate T， WI(ASTM E313，CIE/ISO,AATCC,Hunter)， YI(ASTM D1925，ASTM 313), MI(Metamerism Index ), Color Strength, Staining fastness,Color Strength, Opacity, Pt-Co index and Gardner index |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2,F3,F4,F5,F6,F7,F8,F9,F10,F11,F12 |
| Display Data | Spectral/Values, Chromaticity Values, Color Difference Values/Graph,Color Diagram, Color Simulation, Pass/ Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral transmittance: for test transmission reference white within ΔE*ab 0.05% (400~700nm: within 0.04%); Chromaticity Data: Φ25.4mm,within ΔE*ab 0.03 (after do warm-up and calibration, it is the average value to measure transmission reference white plate for 30 times at 5 second intervals) |
| Inter-instrument Agreement | Φ25.4mm,within ΔE*ab 0.15 (average value for 5 pcs standard transmittance color plates measurement ) |
| Size | 370X300X200mm(L*W*H) |
| Weight | About 9.6kg |
| Power | DC 24V,3A Power Adapter |
| Illuminant Life Span | 5 years, more than 3,000,000 times measurement |

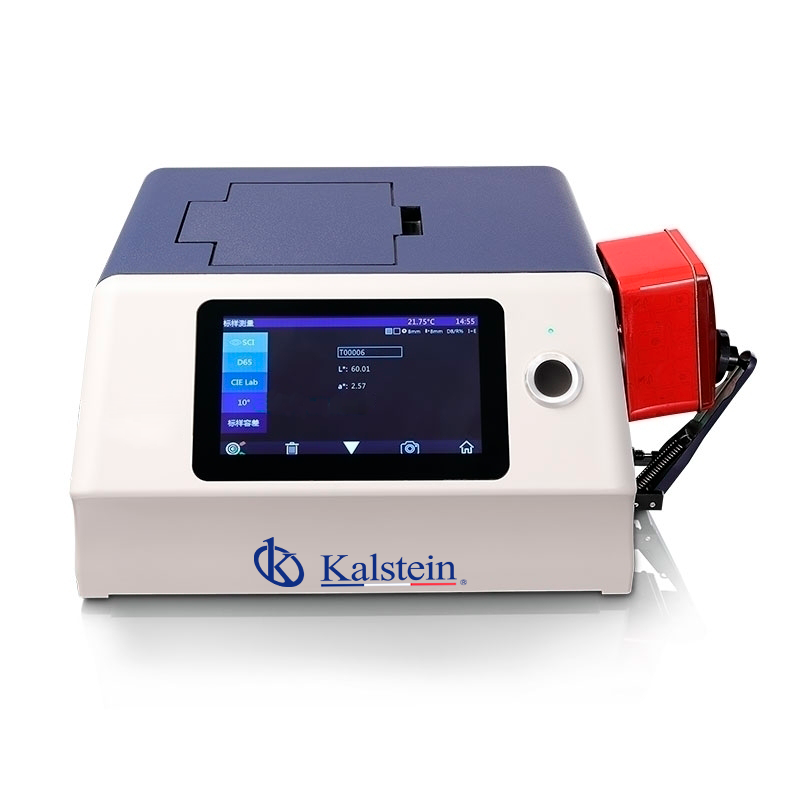

| Screen | 7-inch TFT Capacity Touch Screen Display |
| Interface | USB,Printing Port |
| Storage | Standard:5000; Sample:20000 |
| Language | Simplified Chinese, Traditional Chinese, English |
| Working Temperature | 0~40℃(32~104°F) |
| Storage Temperature | -20~50℃(-4~122°F) |

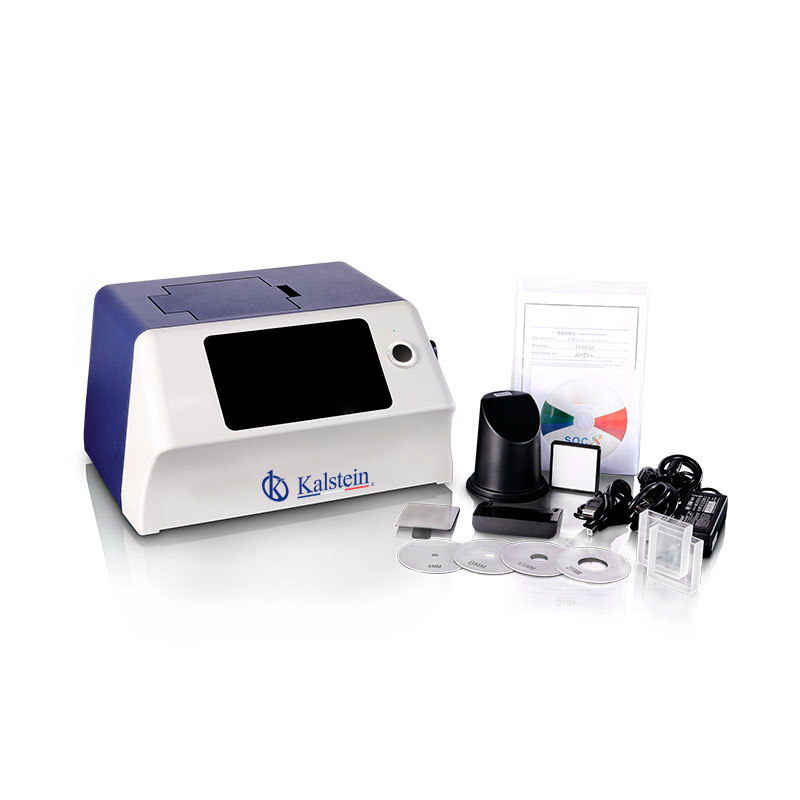

| Standard Accessory | Power Adapter, User Manual, QC software(please download from website), USB cable, reflectance white and black board, transmittance black board, 25.4mm aperture, transmissive test component |
| Optional Accessory | Miniature- printer |
| Note | The specifications are subject to change without notice. |
