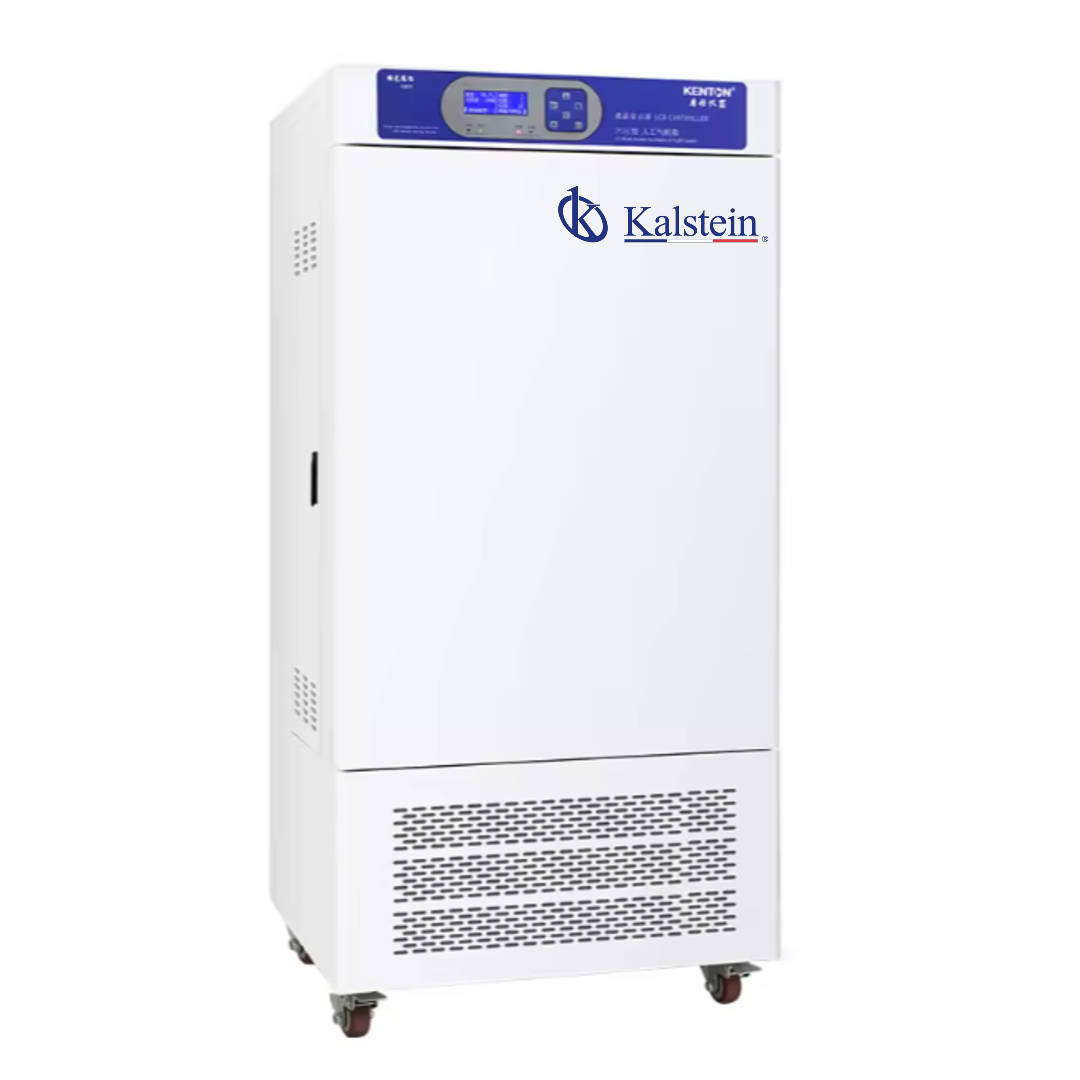

Biological Chamber Climate Incubator YR06676

The YR06676 Biological Chamber Climate Incubator is a high-precision instrument designed to simulate natural environments with rigorous control over light, temperature, and humidity. This device is a fundamental tool for research departments in biology, medicine, agriculture, forestry, and environmental sciences. Its primary applications include plant seed germination, seedling cultivation, and the preservation of microorganisms or small insects. With its ability to simulate day and night cycles through programmable light control, it is ideal for laboratories conducting product quality tests and climatic stability experiments under international standards.

Design and Technology (or Functionality)

The YR06676 series integrates advanced technologies to ensure consistent and safe performance:

• Intelligent PID Control: Equipped with a 30-segment programmable microcomputer system and an LCD screen, allowing for precise time and temperature management with ultra-high temperature alarm functions.
• Balanced Refrigeration System: Uses a world-renowned brand compressor with eco-friendly R134a refrigerant (Freon-free) and a delay protection function for extended service life and automatic defrosting.
• ALLFLOW and ALLSENS Technology: The unique air circulation system ensures exceptional temperature uniformity, while high-precision sensors maintain minimal fluctuation.
• Adjustable Lighting: Features a five-level adjustable lighting system, essential for controlled photosynthetic processes.
• Intelligent Humidification: Includes integrated high-capacity humidification systems with automatic replenishment via an external tank.
• Functional Design: Mirror-polished stainless steel internal chamber (SUS304), double-door design with a built-in tempered glass viewing window, and height-adjustable shelving.

Frequently Asked Questions (FAQ)

• Can it simulate day and night cycles automatically? Yes, the 30-segment programmable control system allows you to configure different light and temperature levels to simulate natural 24-hour cycles.
• How is water replenished for the humidity system? The unit features an automatic replenishment system that connects to an external tank, facilitating continuous operation without constant manual intervention.
• What happens if there is a power outage? The equipment includes a "Cut-off memory" function, which allows it to resume the set parameters as soon as the power supply is restored.

Advantages and Disadvantages

Advantages:

• Thermal Uniformity: Thanks to the gentle ventilation system that prevents direct thermal shock to the samples.
• Durable Construction: SUS304 stainless steel interior is corrosion-resistant and easy to sterilize.
• Eco-Friendly: Uses low environmental impact refrigerants and high-efficiency insulation for energy savings.
• Safety: Audible and visual ultra-high temperature alarms and compressor protection.

Disadvantages:

• Initial Complexity: The 30-segment programmable system may require a learning curve for new users.
• Water Maintenance: Using the humidification system requires the strict use of distilled water to prevent clogging in the intelligent system.

Use in the Field and Recommendations

This equipment is highly recommended for plant biotechnology labs, agricultural experimental stations, and entomology centers. It is perfect for studies on plant resistance and the breeding of beneficial insects. Pro Tip: To ensure the accuracy of the SENSIRION sensor, it is recommended not to block the internal ventilation grilles with large containers, allowing the "ALLFLOW" air current to circulate freely between the shelves.

Technical Specifications

Parameter	Characteristics
Model	YR06676
Volume Capacity (L)	100 L
Control System	30-segment Programmable PID Microcomputer
Display	Digital LCD
Temperature Range (°C)	0 ~ 65 (With light: 10 ~ 50)
Temperature Accuracy (°C)	± 0.1
Temperature Fluctuation (°C)	± 0.5
Humidity Range	50% ~ 90% RH
Humidity Fluctuation	± 3% to ± 5% RH
Light Levels	5 adjustable levels
Internal Material	Mirror Polished Stainless Steel (SUS304)
External Material	Powder Coated Steel
Refrigerant Type	R134a (Eco-friendly)
Communication Port	RS232 (Remote monitoring)
Timer	0 ~ 9999 min
Voltage	220V 50Hz / 110V 60Hz
Internal Dimensions (cm)	45 x 38 x 58
Overall Dimensions (cm)	59 x 62 x 110
Net Weight (kg)	85 kg
Shipping Weight (kg)	105 kg
