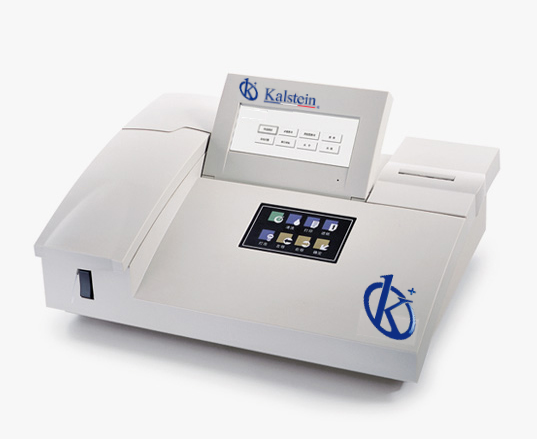

Semi-auto Chemistry Analyzer YR05114

Manufacturer: Kalstein

Description

  • Easy Windows operation system with mouse, large color LCD displayi
  • Reagent open system supports flow cell and cuvette mode.

close system on requesti

  • Analytical modes include kinetic, fixed time, bichromatic end point with or

without reagent blank or sample blank, linear or non-linear calibration

– Real-time curve monitoring enhances the reliability of result

  • Large memory, up to 200 test protocols can be programmed

– Powerful QC function: Westguard Multi-rule, Levey Jennings plot,

2 controls per testi

  • Auto power on sel-check

– Additional lamp savinal

– Multiform result output including patient comprehensive report

  • Software optional for date management in PC
  • Easy maintenance, no service engineers required to change lamp, tube etc

Technical Specifications

Model  YR05114
Photometric Range -0.500-3.500Abs
Resolution 0.001Abs(displayed), 0.0001Abs(calculated)
Light Source Halogen lamp, 6V/10W
Wavelenghs 340,405,500,546,578,620,670m, 1 more filter opcional
Wavelengh Accuracy ±2nm
Band Width ≤ 10nm
Aspirate Volume 100-3000ul
Cross Contamination Rate <1%
Memory 200 test protocols, up to 3000 test results
Interface RS-232,PSTN (optional)
Cuvette Mode 12.5mmx 12.5mm cuvette optional
Temperature Control 25 °C,30 °C;37 °C 10.5°С
Display 7″ color LCD
Input External mouse and optional external keyboard
Output Built-in printer or external printer (optional)
Net Weight 11,5KG
Dimensions L × W × H (mm)  460×330×190
Power Supply AC 110V/220V±10%, 50Hz/60Hz

Additional information

Weight 11,5 kg
Dimensions 52 × 42 × 30 cm
