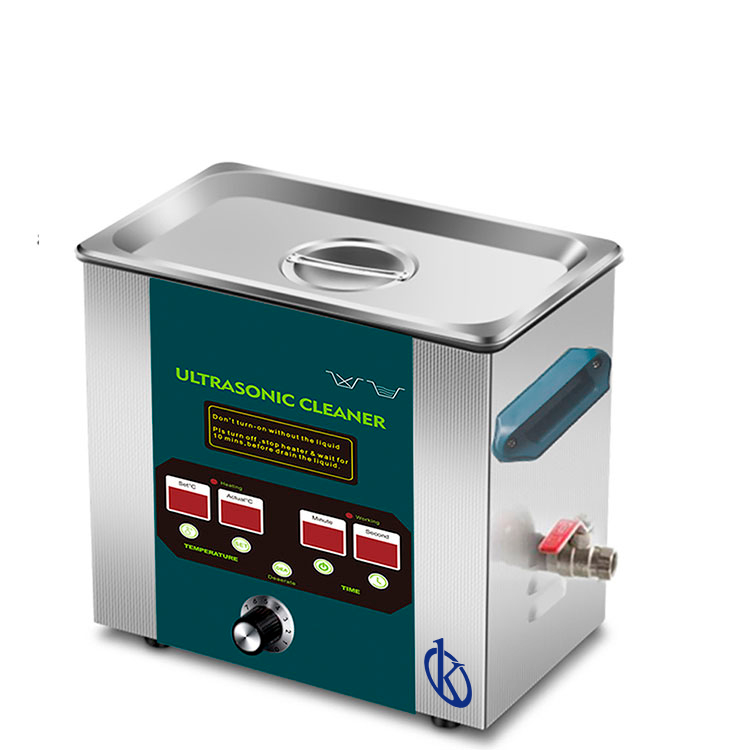

Desktop Ultrasonic Cleaner YR05220 // YR05228

Manufacturer: Kalstein

Description

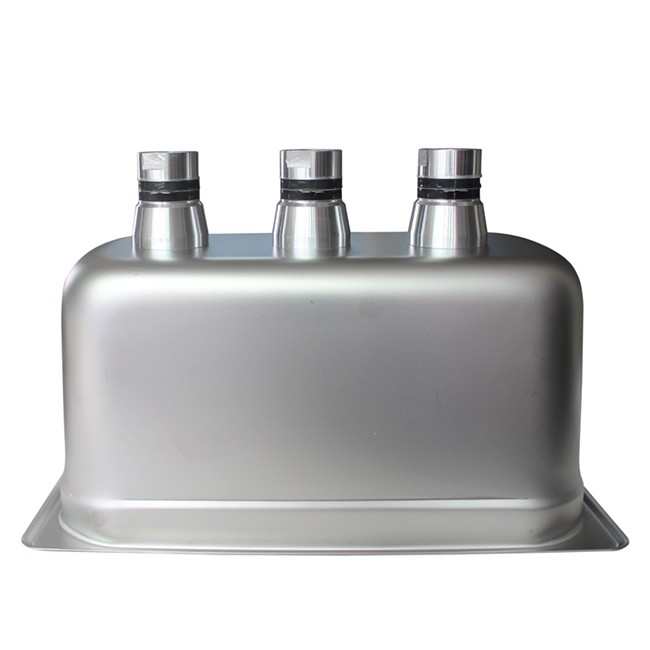

The YR05220 // YR05228 desktop ultrasonic cleaner stands out for its high capacity and efficiency in ultrasonic cleaning. These models, ranging from 3.2 to 30 liters, are perfect for removing tough dirt from a wide variety of objects, including medical instruments, industrial parts, and fine jewelry, without causing damage. Equipped with high-Q industrial transducers, these cleaners achieve superior energy conversion efficiency, resulting in greater cleaning power. Additionally, the degassing function and precise control of temperature and time make this series ideal for use in laboratories, mechanical workshops, and clinics.

Market Price

The ultrasonic cleaners in the YR05220 // YR05228 series range from $240 to $670 USD, depending on the model and capacity. Smaller models, like the YR05220 with a 3.2-liter capacity, are ideal for those who need a compact and efficient solution, while larger models, such as the YR05228 with 30 liters, are perfect for industrial or high-volume applications.

Frequently Asked Questions

  • What is the tank capacity of the YR05228 model and what applications is it recommended for?
    The YR05228 model has a 30-liter tank capacity, making it ideal for cleaning large parts or multiple items at once. It is recommended for industrial applications, such as cleaning mechanical components or electronic parts.
  • Is it safe to use this cleaner for delicate medical instruments?
    Yes, ultrasonic technology cleans deeply without damaging objects, making it safe for medical, dental, and other sensitive equipment.

Advantages and Disadvantages

The advantages of this series include its high cleaning capacity, energy efficiency, and the ability to control both power and temperature (up to 80°C). Additionally, all models come with a drain valve, making it easy to handle the cleaning liquid after each use. The degassing function improves cleaning performance by removing air bubbles from the liquid. A potential drawback is that larger models, such as the YR05228, may be less portable due to their size and weight, which could limit mobility.

Field Use

In practice, the YR05220 // YR05228 ultrasonic cleaner is used in dental clinics to disinfect instruments, in mechanical workshops to clean car parts, and in laboratories to keep tools free from contaminants. Its ability to remove embedded residues in hard-to-reach areas makes it an essential tool for any environment requiring precision cleaning.

To maximize the equipment’s performance, it is recommended to use specific ultrasonic cleaning solutions and regularly maintain the tank. If you’re interested in purchasing one of these models, we invite you to request a quote or generate an automatic quote through Kalstein Plus, where you can find the best options for your business or laboratory.

Technical Specifications

Models YR05220 YR05221 YR05222 YR05223
Capacity (L) 3,2 5 4,87 6,8
Working frequency 40 KHz 40 KHz 40 KHz 40 KHz
Ultrasonic Power 120 W 120 W 180 W 180 W
Degas Yes Yes Yes Yes
Heating power 100 W 200 W 200 W 200 W
Synchronization time (minutes) ine-99 jan-99 jan-99 ene-99
Temperature range 0-80°C 0-80°C 0-80°C 0-80°C
Power Regulation 0-100% 0-100% 0-100% 0-100%
Cover Yes Yes Yes Yes
Drain Valve Yes Yes Yes Yes
Washing basket Optional Optional Optional Optional
Inner tank dimension (mm) 240 x 135 x 100 240 x 135 x 150 300 x 150 x 100 300 x 150 x 150
Packing size (mm) 342 x 240 x 355 342 x 240 x 355 402 x 252 x 355 412 x 357 x 380
Gross weight (kg) 6,7 7,2 7,5 6,21



Models YR05224 YR05225 YR05226 YR05227 YR05228
Capacity (L) 11 15 20 22 30
Working frequency 40 KHz 40 KHz 40 KHz 40 KHz 40 KHz
Ultrasonic Power 240 W 360 W 360 W 480 W 600 W
Degas Yes Yes Yes Yes Yes
Heating power 300 W 400 W / 220V 400 W / 220V 600 W / 220V 600 W / 220V
Synchronization time (minutes) ine-99 jan-99 jan-99 jan-99 ene-99
Temperature range 0-80°C 0-80°C 0-80°C 0-80°C 0-80°C
Power Regulation 0-100% 0-100% 0-100% 0-100% 0-100%
Cover Yes Yes Yes Yes Yes
Drain Valve Yes Yes Yes Yes Yes
Washing basket Optional Optional Optional Optional Optional
Inner tank dimension (mm) 300 x 240 x 150 330 x 300 x 150 330 x 300 x 200 500 x 300 x 150 500 x 300 x 200
Packing size (mm) 472 x 437 x 420 472 x 437 x 470 472 x 437 x 470 675 x 454 x 430 657 x 450 x 475
Gross weight (kg) 8,5 11,5 12,5 14,5 16

Additional information

Weight N/A
Dimensions N/A
Model

YR05220, YR05221, YR05222, YR05223, YR05224, YR05225, YR05226, YR05227, YR05228
