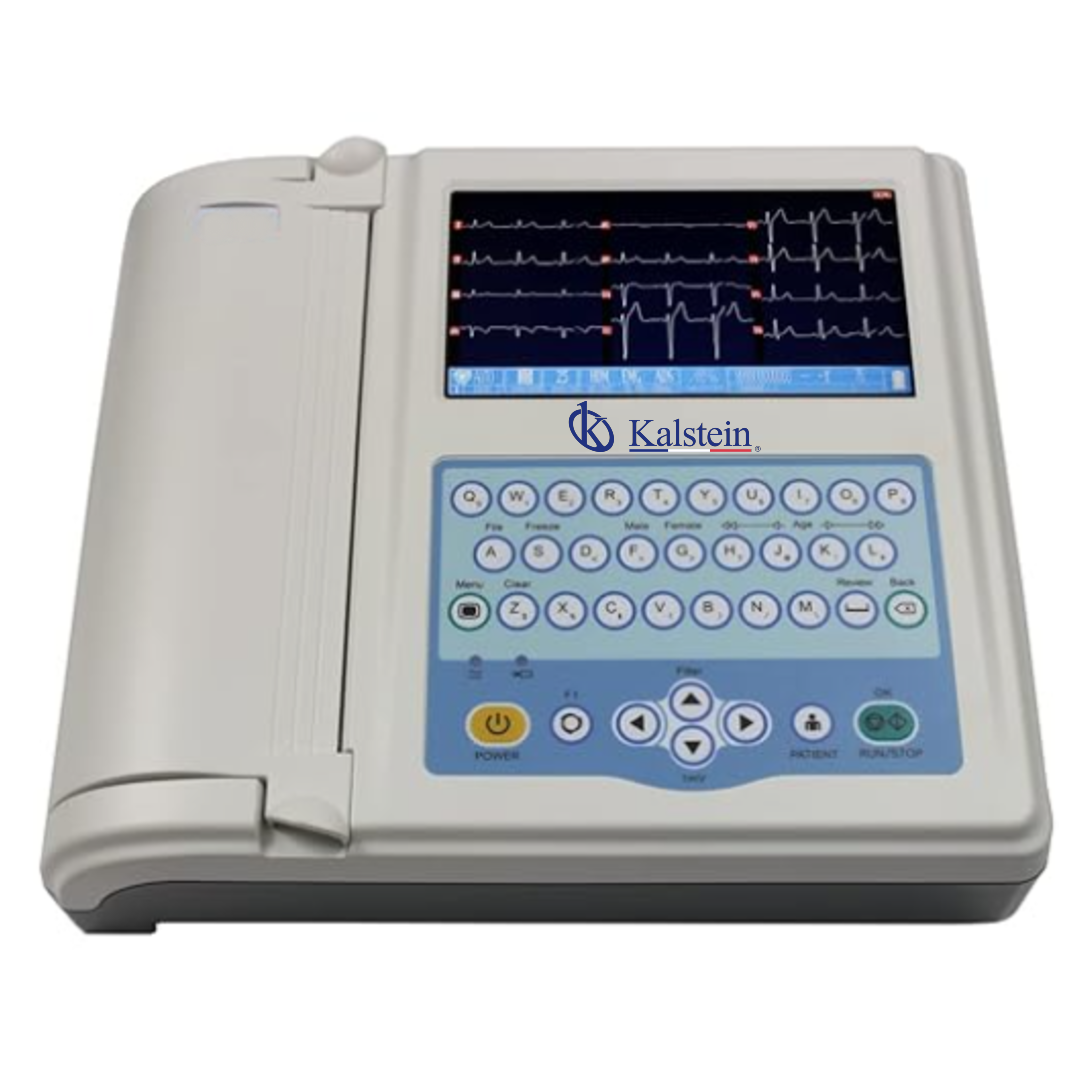

Electrocardiograph with Color Display YR06667
Electrocardiograph with Color Display YR06667 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
Design and Technology (Functionality)
This equipment stands out for its high-precision engineering:- Advanced Digital Sampling: Utilizes a sampling system that increases effectiveness to 32,000 samples per second, ensuring extreme fidelity of the ECG waveform.
- Long-Life Thermal Print Head: Features an imported thermal array printer, resistant to high temperatures and designed for continuous, quiet operation.
- Interface and Storage: Equipped with a 7-inch LCD screen and storage capacity for up to 250 medical cases, facilitating data management via its USB port.
- Safety: Includes anti-defibrillation protection and complies with Class II (Type CF) safety standards.
Frequently Asked Questions (FAQ)
How long can it operate continuously? Thanks to its 4400mAh battery, the device can operate continuously for more than 3 hours.What paper width does it use? It uses standard 210mm wide thermal paper, allowing for clear recordings in multiple formats.Is the device water-resistant? No, it is a standard medical device and should be kept away from liquids or environments with excessive humidity without condensation.Advantages and Disadvantages
Advantages:- High sampling precision (32,000 samples/sec).
- Portable and lightweight design with high-capacity battery.
- Low noise level during printing.
- Large internal storage (250 cases).
- No touch screen (operated via 11 physical keys).
- Not suitable for use in the presence of flammable gases.
Field Use and Recommendations
The YR06667is excellent for Intensive Care Units (ICU), emergency departments, and cardiology clinics. It is recommended to calibrate the device periodically and use high-quality thermal paper to preserve the life of the print head. For optimal management, it is advised to regularly export stored cases via USB to keep the device's memory clear.Technical Specifications
| Specification | Technical Detail |
| Model | YR06667 |
| Product Type | Portable 12-Channel / 18-Leads ECG |
| Display | 7-inch LCD |
| Digital Sampling | 32,000 samples per second |
| Recording Formats | 3ch+++, 6ch, 6ch+, 12ch |
| Internal Storage | 250 medical cases |
| Paper Width | 210 mm (Thermal) |
| Battery | 14.4V / 4400mAh (Lithium) |
| Battery Life | More than 3 hours (continuous) |
| Data Ports | USB |
| Protection | Anti-defibrillation included |
| Safety Classification | Class II, Type CF |
| Dimensions | 360 mm x 325 mm x 85 mm |
| Weight | 3.2 kg |
| Power Source | AC (Electric) and Rechargeable Battery |
| Material | Metal and Medical ABS Plastic |
Technical specifications
| Dimensions | L 360 × W 325 × H 85 cm |
|---|---|
| Weight | 3.2 kg |
| Manufacturer | Kalstein |
