Description

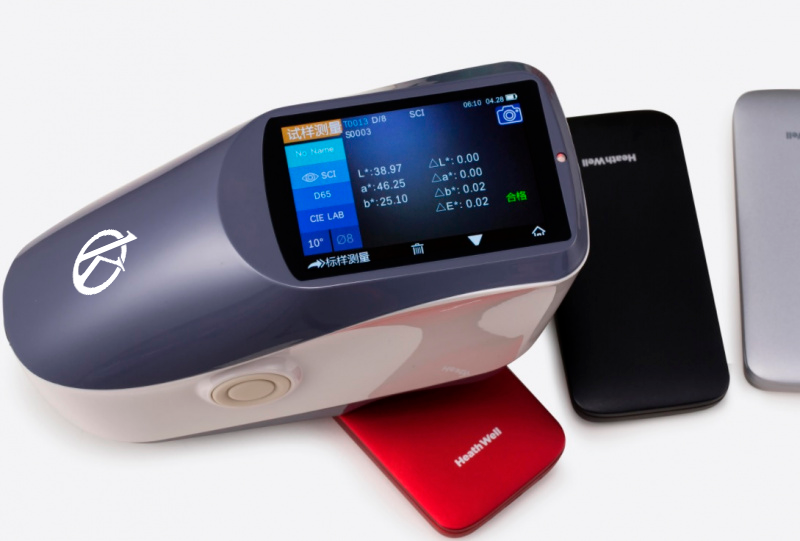

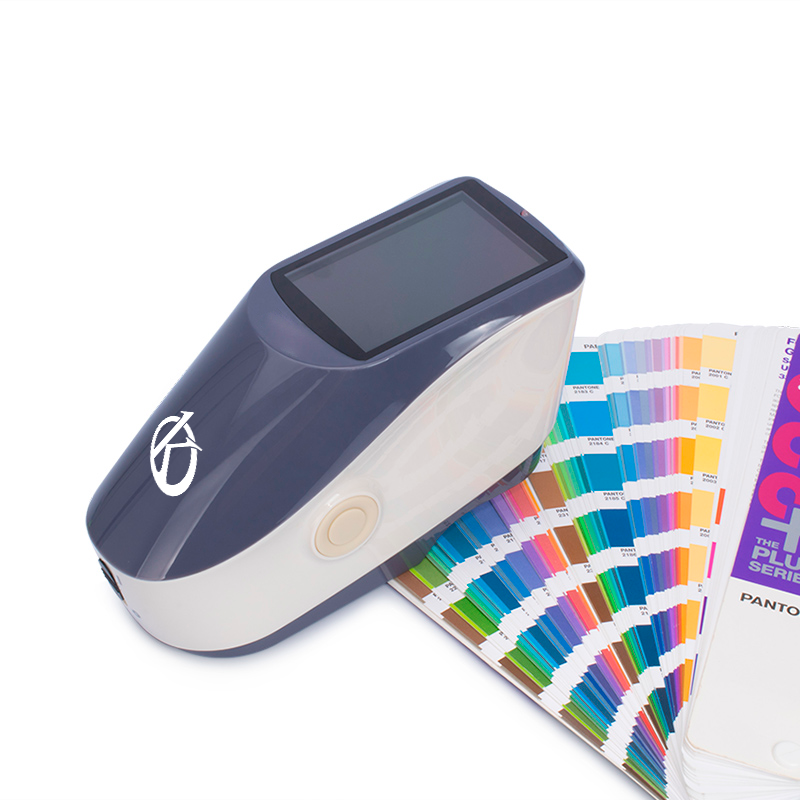

The Grating Spectrophotometer with 8mm and 4mm Apertures YR05504 is an advanced tool built for high-precision color analysis, specifically engineered to cater to the rigorous demands of both laboratory and industrial use. Manufactured by Kalstein, this spectrophotometer adopts a 45/0 optical system that utilizes a 45° ring-shaped illumination combined with a 0° vertical observation, ensuring unparalleled accuracy in color transmission analysis. Its compatibility with international standards like CIE No.15, ISO7724-1, and ASTM E1164 makes it remarkably versatile across various sectors including paints, textiles, printing, and signage. Furthermore, it features a dual-matrix CMOS detector, a sophisticated LED light source, and a user-friendly 3.5-inch touchscreen LCD display. This model promises convenience, durability, and precision, effectively enhancing color control and streamlining production processes.
Market Price
The price range of the YR05504 spectrophotometer on the market generally falls between $4,500 to $5,000 USD, influenced by factors such as accessory inclusions and configuration needs tailored for the customer. This investment is particularly appealing for businesses focused on optimizing color control accuracy and efficiently managing production workflows. For tailored project quotes or automatic generation, consider the Kalstein Plus platform for a swift and convenient process.
Frequently Asked Questions
- What industries can benefit from the YR05504?
The YR05504 is ideal for quality control in industries like paints, textiles, and printing, as well as for color measurement in fluorescent samples and traffic signal applications. - Does the spectrophotometer support wireless connectivity?
Yes, it features Bluetooth 4.0 alongside USB connectivity, facilitating easy data transfer and integration into diverse analysis systems. - How long does the LED light source last?
The LED light source, which includes UV, boasts an impressive lifespan of approximately 5 years or over 3 million measurements.
Advantages and Disadvantages
Some key advantages of the YR05504 include its exceptional precision (standard deviation of 0.08% in spectral reflectance), flexibility across 8 mm and 4 mm apertures, and compliance with extensive international colorimetric standards. Its ergonomics and intuitive interface also enhance user comfort. However, a limitation is its wavelength range confined to 400-700 nm, potentially restricting applications needing analysis beyond the visible spectrum.
Field Applications
This spectrophotometer is extensively utilized for color analysis within fields like textiles, printing, and paint manufacturing. Its capacity to assess brightness factors and color coordinates in traffic signals and reflective films is invaluable for ensuring color quality and uniformity. Notably, its portability and accuracy make it suitable for both laboratory environments and production line quality control.
Recommendations
To maintain optimal performance of the YR05504, it’s crucial to operate the device in a clean environment and perform regular calibrations for precise measurements. Its rechargeable lithium-ion battery allows for around 5,000 measurements over an 8-hour period, so periodic recharges are recommended. Request a personalized quote or produce one easily via Kalstein Plus to discover how the YR05504 can enhance your industry’s color control, optimizing efficiency and precision in every process.
Features
- Dual apertures of 8 mm and 4 mm for versatile measurement options
- 45/0 optical system for accurate color transmission
- Compatibility with a broad spectrum of international standards
- 3.5-inch touchscreen LCD for user-friendly interaction
- Bluetooth 4.0 and USB connectivity for seamless data transfer
- Durable LED light source with a lifespan of 5 years
Technical Specifications
| Model | YR05504 |
| Illumination/Observation system | 45/0(45 ring-shaped illumination, vertical viewing);
Comply with CIE No.15，GB/T 3978,GB 2893,GB/T 18833,ISO7724-1,ASTM E1164,DIN5033 Teil7,GB 2893、GB/T 18833 |
| Features | High accruacy spectrophotometer is used for accurate analysis and transmission of laboratory color.Apply in paints, inks, textiles, garments, printing and dyeing, printing etc industries for color transfer and quality control, also for Fluorescence sample color measurement.
It is used to measure the brightness factor and color coordinates of traffic signs, markings and reflective films. It contains GB 2893 and GB/T 18833 standard colors. It can customize the rectangular tolerance of polygons manually. |
| Integrating Sphere Size | Φ48mm |
| Light Source | Combined LED Light, UV Light |
| Spectral separation device | Concave Grating |
| Detector | 256 Image Element Double Array CMOS Image Sensor |
| Wavelength Range | 400~700nm |
| Wavelength Pitch | 10nm |
| Half Bandwidth | 10nm |
| Reflectance Range | 0~200% |
| Measuring Aperture | MAV:Φ8mm/Φ10mm；SAV:Φ4mm/Φ5mm |
| Color Space | CIE LAB,XYZ,Yxy,LCh,CIE LUV,HunterLAB,βxy |
| Color Difference Formula | ΔE*ab,ΔE*uv,ΔE*94,ΔE*cmc(2:1),ΔE*cmc(1:1),ΔE*00,ΔE（Hunter） |
| Other Colorimetric Index | WI(ASTM E313，CIE/ISO,AATCC,Hunter)，
YI(ASTM D1925，ASTM 313), MI (Metamerism Index), Staining Fastness, Color Fastness, Color Strength, Opacity,Supporting Colorimetric Polygon Tolerance |
| Observer Angle | 2°/10° |
| Illuminant | D65,A,C,D50,D55,D75,F1,F2(CWF),F3,F4，F5，F6,F7(DLF),F8,F9，F10(TPL5),F11(TL84),F12(TL83/U30) |
| Display Data | Spectrogram/Values, Chromaticity Values, Color Difference Values/Graph, Pass/Fail Result, Color Offset |
| Measurement Time | About 1.5s |
| Repeatability | Spectral reflectance: MAV,Standard deviation within 0.08% (400 nm to 700 nm: within 0.18%)
Chromaticity value:within ΔE*ab 0.03 ( When a white calibration plate is measured 30 times at 5 second intervals after white calibration) |
| Inter-instrument Error | Within ΔE*ab 0.15(Average for 12 BCRA Series II color tiles) |
| Measurement mode | Single Measurement, Average Measurement(2-99) |
| Size(L*W*H) | 184*77*105mm |
| Weight | About 600g |
| Power source | Li-ion battery. 5000 measurements within 8 hours |
| Illuminant Life Span | 5 years, more than 3 million times measurements |
| Display | 3.5-inch TFT color LCD, Capacitive Touch Screen |
| Interface | USB, Bluetooth 4.0 |
| Data memory | Standard 1000 Pcs, Sample 30000 Pcs |
| Language | Chinese,English |
| Working Environment | Temperature: 0~40℃; Humidity: 0~85% (No Condensation);altitude: less than 2000 m |
| Storage Environment | Temperature: -20~50℃; Humidity: 0~85% (No Condensation) |

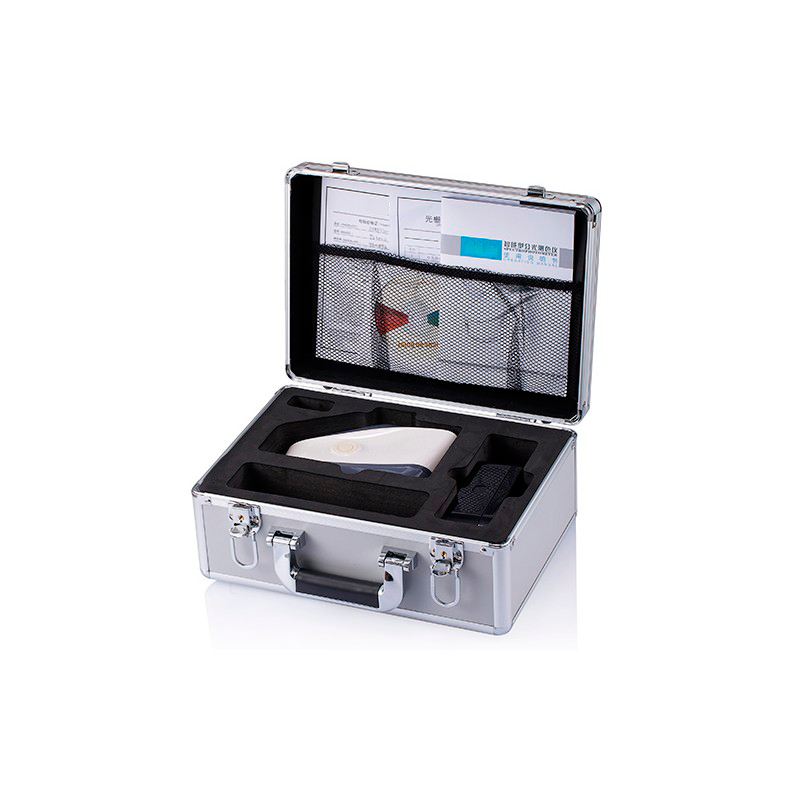

| Standard Accessory | Power Adapter, USB Cable, Built-in li-ion battery, User Manual, software(download from the website)White and Black Calibration Board, Protective Cover. |
| Optional Accessory | Micro Printer, Powder Test Box, Universal test components, Locating Plate |
| Notes: The specifications are subject to change without notice. | |
