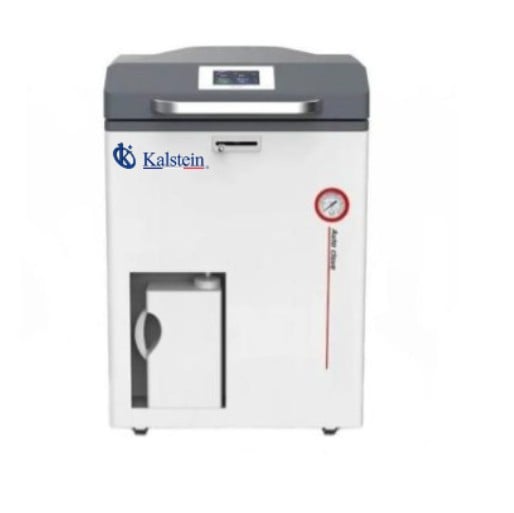

High-Quality Vertical Laboratory Sterilizer with Color LCD Screen YR06701
High-Quality Vertical Laboratory Sterilizer with Color LCD Screen YR06701 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.
The YR06701 Vertical Laboratory Sterilizer represents the cutting edge in biosafety technology and saturated steam sterilization. This unit, constructed with a high-strength SUS304 stainless steel chamber , has been designed for environments demanding surgical precision, offering a temperature range up to 143°C and an accuracy of 0.1°C . Thanks to its intelligent microcomputer controller and intuitive color LCD touchscreen , the user can manage complex processes with unprecedented ease, ensuring that each cycle meets international disinfection standards.Versatility is at the heart of this model, which not only functions as a conventional autoclave but also integrates melting and heating functions (60-100 °C), ideal for preparing culture media such as agar. With a memory capacity for 88 customized cycles and a 6-level automatic exhaust system, the YR06701 optimizes operating times in Central Sterilization Departments (CSSDs) and research centers.
Design and Technology: Next-Generation Functionality
The YR06701 ‘s design is distinguished by its flip-door , which facilitates access in confined spaces, and its integrated fan-based cooling system, which drastically reduces waiting times between cycles. Its three-level authorization management technology ensures that only trained personnel handle critical parameters, complying with traceability and workplace safety regulations.Frequently Asked Questions
- Is it suitable for sterilizing liquids and culture media? Yes, it has specific cycles for liquids and melting/heat maintenance functions for Agar, preventing overcooking of reagents.
- What type of maintenance does the exhaust system require? The system features an automatic internal discharge and steam collector, which minimizes the accumulation of residue, requiring only periodic cleaning of the water tank and inspection of seals.
- Can cycles be scheduled for the future? Absolutely. It includes a preset timer that allows you to program the start of the cycle from 1 minute up to 15 days in advance.
Advantages and Disadvantages
- Advantages:
- Intuitive Interface: Color screen that allows monitoring of pressure and temperature in real time.
- High Precision: Thermal control of 0.1 °C for sensitive materials.
- Security: Triple user management and liquid cooling lock.
- Disadvantages:
- Thermal Inertia: Being a robust stainless steel unit, it requires an initial preheating time to reach maximum design temperatures.
- Space Requirement: Its vertical design requires an adequate ceiling height for the comfortable opening of the top door.
Product Use in the Field
In a real-world setting, such as a pharmaceutical microbiology lab , the YR06701 is used to simultaneously process surgical instruments and culture media. While staff use the “Solids with Drying” cycle for gauze and tools, the memory function allows another operator to activate “Agar” mode with just two taps on the screen upon completion, maintaining the reagents at the ideal pouring temperature without risk of contamination.Expert Recommendations
To maximize the lifespan of your sterilizer, we strongly recommend using demineralized or distilled water to prevent limescale buildup on the heating elements and piping system. Annual thermal validation is also essential to ensure consistent 0.1°C accuracy.Technical Specifications
| Model | YR06701 |
| Display system | Color LCD touchscreen |
| Camera equipment | SUS304 (Stainless Steel) |
| Temperature accuracy | 0.1 °C |
| Work environment | 5-45 ℃, 10% – 85% RH (Relative Humidity) |
| Sterilization temperature | 105-143 ℃ |
| Sterilization time range | 1-9999 min |
| Melting point | 60-100 ℃ |
| Fusion time range | 1-9999 min |
| Heating temperature | 45-80 ℃ |
| Warm-up time range | 1-9999 min |
| Drying time (optional) | 1-300 min, 80-140 ℃ |
| Cooling lock opening | 40-80 ℃ for liquid cycles, 40-99 ℃ for other cycles |
| Sterilization cycles | 1. Liquids; 2. Liquids with heating; 3. Solids; 4. Solids with drying; 5. Residues; 6. Agar; 7. Custom cycles: 82 cycles |
| Number of memory cycles | It can store up to 88 cycles |
| Exhaust system | Automatic internal discharge. Selectable exhaust speed in 6 levels. |
| Opening mode | Hinged door (Flip door type) |
| Preset timer range | 1 minute to 15 days |
| Pressure gauge range | 0 / 0.6 MPa |
| Pressure | Maximum working pressure: 0.25 MPa; Design pressure: 0.35 MPa |
| Steam collector | Steam collector and water tank |
| Controller | Intelligent microcomputer controller |
| Cooling fan | Incorporated |
| Authorization Management | User management with three levels of authority |
Technical specifications
| Dimensions | L 50 × W 55 × H 110 cm |
|---|---|
| Weight | 65 kg |
| Manufacturer | Kalstein |
