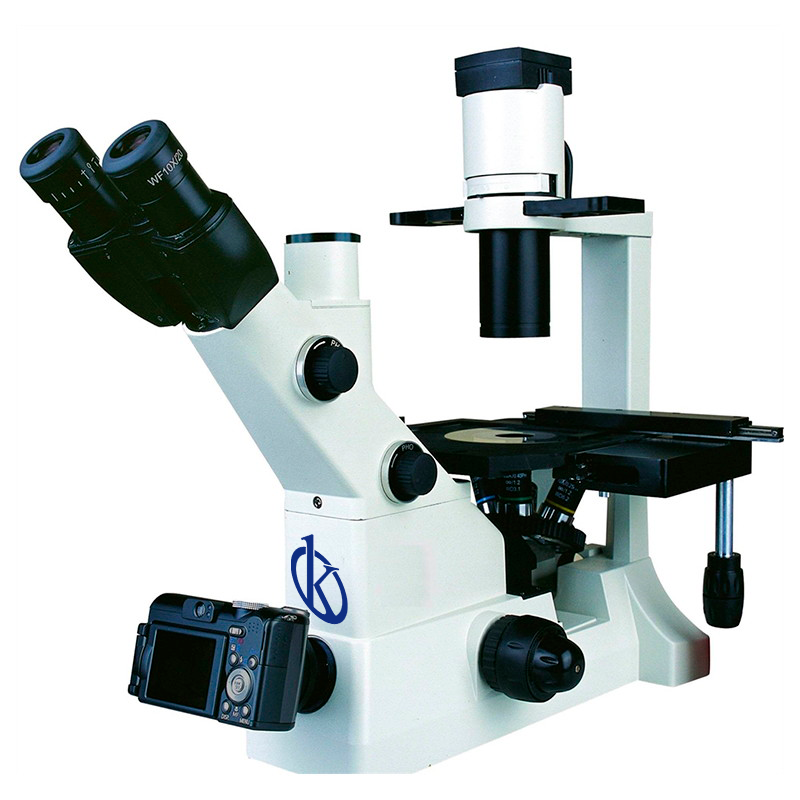

Description
The optical microscope or organic microscope is an instrument equipped with a lens and an eyepiece to enhance the image of an object to perceive details. This is the perfect tool for your infinitely small conquest.
The laboratory microscope is used for routine use. It enables the infinitely small to be visualized with great precision and impeccable image quality.
Therefore, our selection highlights efficient, ergonomic and robust microscopes, essential features for high-quality observation.
Technical Specifications
| Modelo | YR0245 | ||
| Optical System | Infiniy Optical System | ||
| Head | Siedentopf Binocular Head, 45° Inclined, 360° Rotatable, Interpupillary 48-75mm | ||
| Eyepiece | Wide Field Eyepiece WF10×/22,Eyepiece Tube Diameter 30mm | ||
| Nosepiece | Backward Quintuple Nosepiece | ||
| Objective | LWD Infinity Plan Achromatic Objective 4x//0.10 W.D.=22 | ||
| LWD Infinity Plan Phase Contrast Objective | 10x/0.25 W.D.=6 | ||
| 20x//0.4 W.D.=3.1 | |||
| 40x/0.55 W.D.=2.2 | |||
| Focusing | Coaxial Coarse & Fine Adjustment, Fine Division 0.002mm, Moving Range Up 4.5mm / Down 4.5mm | ||
| Condenser | ELWD Condenser N.A.0.3, Long Working Distance 72mm, | ||
| Without Condenser Reach 150mm Enough For Petri Dish | |||
| Phase Contract | Centering Telescope (φ30mm) | ||
| Phase Annulus Plate 10x,20x,40x (Adjustable) | |||
| Working Stage | Large Plain Working Stage 230×170mm | ||
| Glasse Insert | |||
| Attachable Mechanical Stage,X,Y Coaxial Control,Moving Rang 80×120mm | |||
| Auxiliary Stage | |||
| Terasaki Holder | |||
| Petri Dish Holder φ38 | |||
| Petri Dish Holder φ54 | |||
| Illumination | 6V/30W Halogen Lamp, Brightness Adjustable | ||
| Filter | Blue,Green, Frosted Glass, DIa. 45mm | ||
| Optional Accessories | Item No. | ||
| Eyepiece | Wide Field Eyepiece WF15x/16 | YR0245-op1 | |
| Wide Field Eyepiece WF20x/12 | YR0245-op2 | ||
| Objective | Lamp House Adjustment Objective | YR0245-op3 | |
| Adapter | 1.0x C-Mount | YR0245-op4 | |
| 0.5x C-Mount | YR0245-op5 | ||
