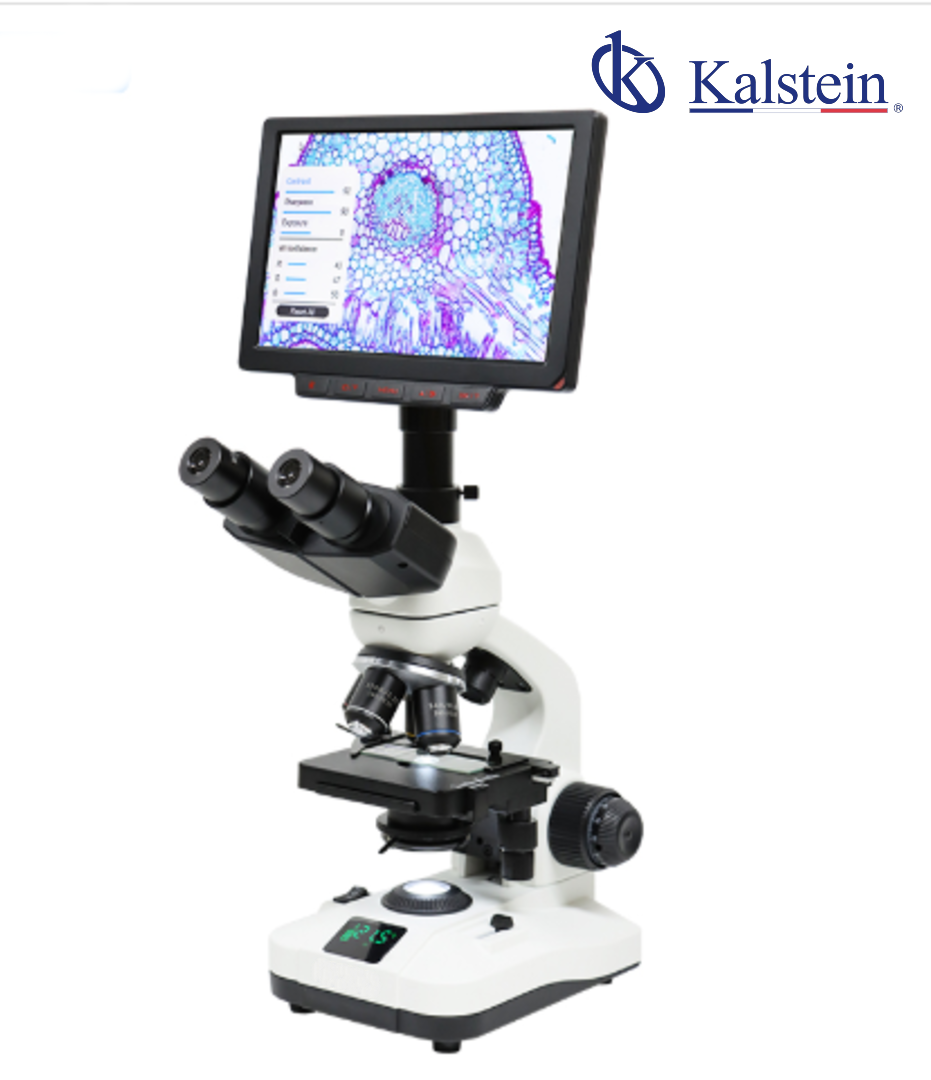

LCD Digital Biologcal Microscope YR06684

The YR06684 laboratory microscope represents the pinnacle of versatility and precision in modern biological microscopy. Designed with an innovative modular structure, this equipment allows for easy upgrades—such as fluorescence or phase contrast—even after the initial purchase. Featuring an infinity-corrected optical system and an ergonomic large-scale design with 30mm eyepiece tubes, it is the ideal tool for researchers, pathologists, and healthcare professionals seeking superior visual clarity and comfort during extended work sessions.

Design and Technology

This model stands out for its high-brightness 6V30W Koehler halogen illumination and a swing-out condenser that ensures perfect light distribution for both low and high-power objectives. Its Light Split technology in the trinocular head offers total flexibility: users can direct 100% of the light to the eyepieces, 100% to the camera port, or use a fixed 80:20 split for simultaneous observation and imaging. Additionally, it features a Rackless integrated mechanical stage, eliminating external moving parts for increased safety and smoother operation.

Frequently Asked Questions (FAQ)

• Can I upgrade to fluorescence or phase contrast later? Yes, the modular design is specifically built to accept LED or mercury fluorescence units, phase contrast, and darkfield attachments at any time.
• What is the advantage of the "Rackless" stage? Unlike traditional stages, the rackless design has no protruding parts on the sides, preventing accidental bumps and reducing mechanical wear over time.
• Is the camera port adjustable? Yes, the trinocular head is compatible with adjustable C-mount adapters (0.5x, 0.75x, or 1.0x) to ensure the camera image is parfocal with the eyepieces

Advantages and Disadvantages

Advantages:

• Superior Optics: SWF10x/22mm super wide-field eyepieces for a panoramic view.
• High Stability: Robust large-frame design reduces vibrations at high magnifications.
• Safety: Eyepiece tubes include fixing screws to prevent accidental damage during transport.

Disadvantages:

• Weight: At 10 kg (net), it is a heavy-duty instrument that requires a permanent, stable workstation.
• Power Consumption: The 30W halogen bulb provides excellent color rendering but generates more heat than LED alternatives.

Field Use and Recommendations

The YR06684 is excellent for clinical diagnostic centers, university research labs, and hospital environments. It is highly recommended for advanced hematology, cytology, and microbiology.

• Operation Tip: When switching to low-power objectives (like the 4x), remember to use the swing-out condenser lens to ensure the entire field of view is evenly illuminated.

Specifications Technical

Item	YR06684
Head	Seidentopf Trinocular, 30° Inclined, 360° Rotatable, Interpupillary 48-76mm
Eyepieces	SWF10x/22mm, 30mm Diameter, High Eyepoint, Diopter Adjustable
Nosepiece	Large Size Quintuple with Polarizing Analyzer Slot
Objectives	Infinity Plan 4x, 10x, 20x, 40x(S), 100x(S, Oil)
Working Stage	Rackless Mechanical Stage, 182x140mm, Travel 77x52mm, Double Holder
Focusing	Coaxial Coarse & Fine Focusing, Fine Div. 0.002mm
Condenser	Swing-out Condenser N.A.0.9/0.13 with Iris Diaphragm
Illumination	6V30W High Brightness Halogen Koehler, Field Diaphragm
Power Supply	Wide Voltage 100V~240V
Filter	45mm Blue Filter Included
Package Size	52 x 47,5 x 28,5 cm
Net Weight	10 kgs
Gross Weight	12 kgs
