Description

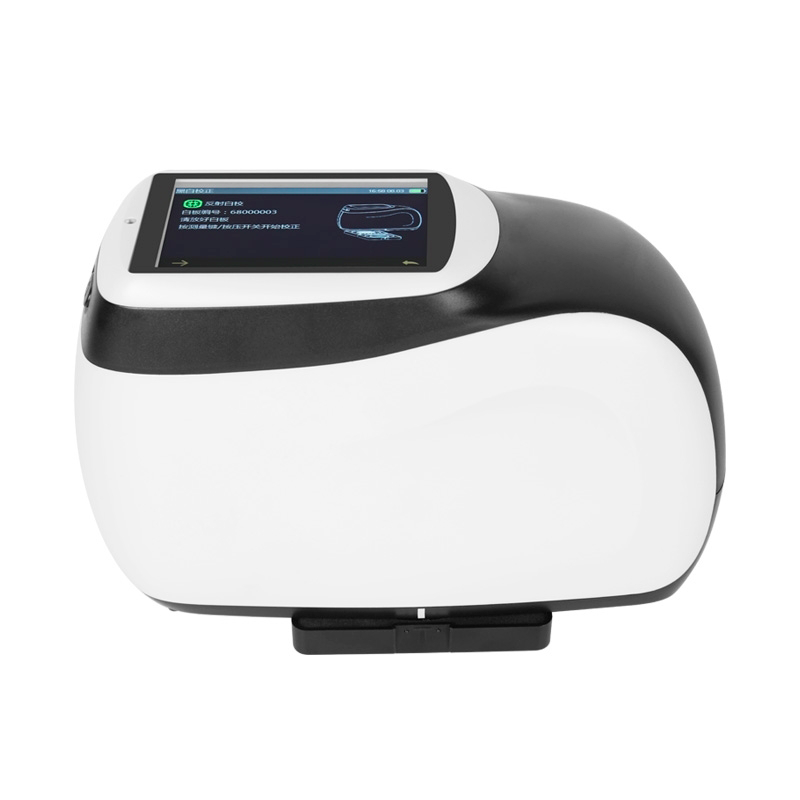

The Multi-Angle Spectrophotometer with 3 Angles YR05488 // YR05489 is an advanced instrument ideal for assessing color differences in products with special finishes, like metals and pearlescent effects. It’s predominantly used in industries such as cosmetics, automotive, and plastics, where precision in color measurement is vital. This device performs multi-angle measurements at 25°, 45°, and 110°, ensuring exact capture of chromatic variations under varying light conditions. Featuring a dual-array 256-element CMOS sensor and a full-spectrum LED light source, this spectrophotometer maintains precision even on curved surfaces. Additionally, its user-friendly touchscreen and concave grating technology streamline result analysis, adhering to international standards like ASTM, ISO, and DIN.
Market Price
The market price for the Multi-Angle Spectrophotometer ranges between $13,500 and $13,900 USD, making it a strategic investment for businesses aiming to enhance precision in color control during industrial processes. For a tailored quote or to swiftly generate one automatically, visit the Kalstein Plus platform. Achieve the highest efficiency in purchasing while ensuring security and reliability.
Frequently Asked Questions
- For which applications is the YR05488 // YR05489 designed?
It is ideal for measuring metallic, pearlescent, and other complex finish products, primarily in automotive, cosmetic, and plastic industries. - Does it include PC compatibility?
Certainly, it comes with PC-compatible color management software for detailed analysis and comprehensive data management. - What is its storage capacity?
Capable of storing up to 1,000 standards and 4,000 samples, facilitating an organized approach to record-keeping.
Advantages and Disadvantages
The YR05488 // YR05489 boasts exceptional precision with a ΔE*ab standard deviation of 0.04, ensuring thorough exploration of chromatic shifts across different angles. This precision is accompanied by USB and Bluetooth 5.0 connectivity for streamlined data transfers. On the downside, its specific design for handling complex finishes might not suit broader color analysis needs.
Field Applications

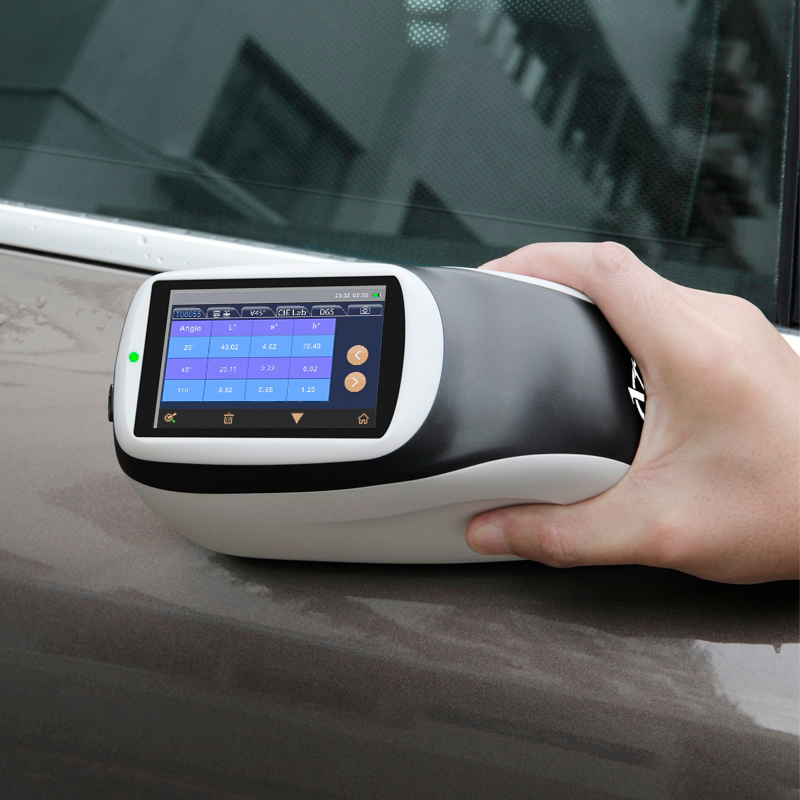

This spectrophotometer excels in color quality control for products within automotive, cosmetics, and plastic industries where high-quality visual finishes are imperative. Thanks to its multi-angle measurements and camera preview feature, it guarantees the exact positioning of the measured area, suitable for laboratory and production line contexts. The ergonomic design and 3.5-inch touchscreen enhance its usability in challenging industrial environments.
Recommendations
To optimize the performance of this spectrophotometer, regular calibrations and maintenance in a clean, dust-free setting are recommended. Its lithium-ion battery provides up to 6,000 measurements over 8 hours, so timely charging is advised. For a customized quote or an automatic generation, visit Kalstein Plus. Discover how the YR05488 // YR05489 can enhance precision and efficiency in your industry, ensuring visual consistency across your products.
Features
- Advanced optical system with a dual-array 256-element CMOS sensor.
- Full-spectrum LED light with blue enhancement for precise measurements.
- User-friendly 3.5-inch TFT capacitive touchscreen for effortless navigation.
- USB and Bluetooth 5.0 connectivity for quick data transfer.
- Extensive data storage capability: 1,000 standards and 4,000 samples.
Technical Specifications
| Model |
YR05488
|
| Measurement Geometry |
3 measurement angles (3 illumination sources, 1 receiver)
|
|
Measure Angle
|
45° Receiver:
|
|
45as25°,45as45°,45as110°
|
|
|
Conform to the standards: ASTM D 2244, E 308, E 1164, E 2194, E2539, DIN 5033, 5036, 6174, 6175-1, 6175-2; ISO 7724, 11664-4 SAE J 1545
|
|
| Application |
Provide accurate and consistent color measurement for metallic, pearlescent, and other complex special effect color products
|
| Light Source |
Full spectrum LED light source with blue enhancement
|
| Lamp Life |
5 years, 3 million times measurements
|
| Spectrophotometric Mode |
Concave Grating
|
| Sensor |
256 Image Element Double Array CMOS Image Sensor
|
| Wavelength Range |
400nm-700nm
|
| Wavelength Interval | 10nm |
| Measurement Range | 0~600% |
| Semiband Width | 10nm |
| Measuring Aperture | Φ12mm |
| Color Space |
CIE LAB, XYZ, Yxy, LCh, βxy, DIN Lab99
|
| Color Difference Formula |
ΔE*ab, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00, DINΔE99, ΔE DIN6175
|
| Other Colorimetric Index |
Flop Index
|
| Observer Angle | 2°/10° |
| Illuminant |
D65, A, C, D50, D55, D75, F1, F2 (CWF),
F3, F4, F5, F6, F7 (DLF), F8, F9, F10 (TPL5),
F11 (TL84), F12 (TL83/U30)
|
| Display |
Spectrogram/Values, Samples Chromaticity Values, Color Difference Values/Graph, PASS/FAIL Result, Color Offset
|
|
Measuring Time
|
Approx. 1 second for one angle
|
|
Approx. 3 seconds for all angles
|
|
|
Repeatability
|
Spectral reflectance: Standard deviation within 0.08%
|
|
Chromaticity value: ΔE*ab 0.04 (When a white
calibration plate is measured 30 times at 5 second intervals after white calibration) |
|
|
Reproducibility
|
ΔE*<0.10, avg on the gray tile of BCRA tile set
|
|
ΔE*<0.25, avg on the color BCRA tile set
|
|
| Inter-instrument Error |
0.2ΔE*00 (avg on reference Series II BCRA tile set)
|
| Effect Parameters | / |
| Effect Measurement | / |
| Effect Repeatability | / |
| Effect Reproducibility | / |
| Trigger mode |
Pressure sensing trigger, button trigger, software trigger
|
| Measuring Mode |
Single measurement, average measurement (1-99),
continuous measurement (1-99) |
| Locating Mode |
Color camera preview
|
| Dimension |
L*W*H=195X83X128mm
|
| Weight |
About 1Kg
|
| Power |
lithium-ion battery, 3.7V, 3200mAh, Continuous test
6000 times within 8 hours of full charge |
| Display |
3.5-inch TFT color LCD, Capacitive Touch Screen
|
| Interface | USB |
| Data Storage |
1000 pcs Standards, 4000 pcs Samples
|
| Language |
Simplified Chinese, Traditional Chinese, English
|
| Operating Environment |
10℃ to 50℃, humidity does not exceed 85%, no
condensation |
| Storage Environment |
-20℃ to 50℃, humidity does not exceed 85%, no
condensation |
| Calibration |
Built-in white board parameters, external white board, black light trap
|
| Calibration Interval |
4 hours, 8 hours, 24 hours, Startup calibration
|

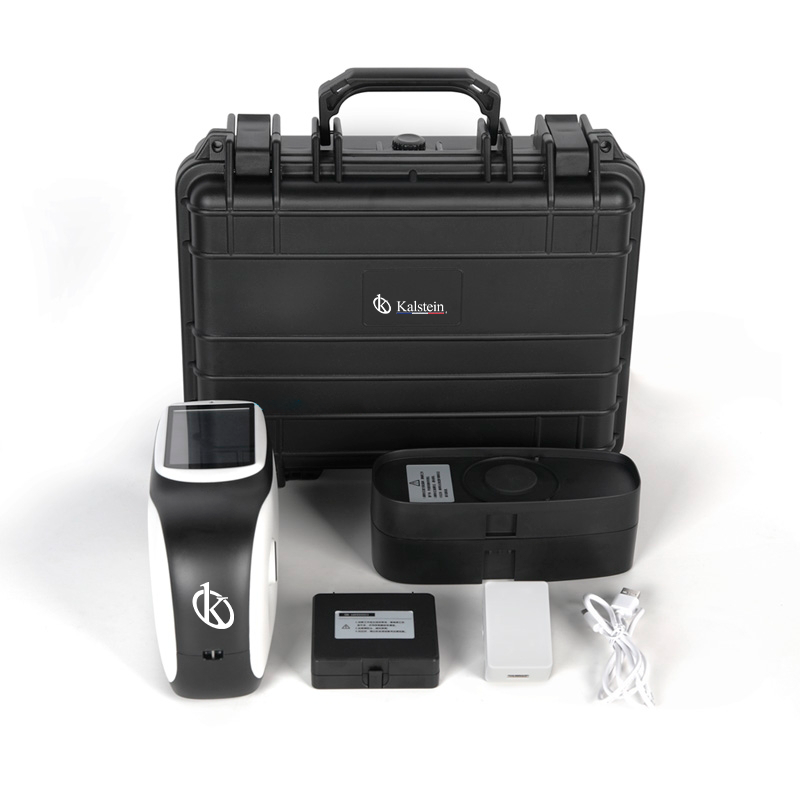

| Standard accessories |
Power Adapter, USB Cable, User Guide, PC Software
(download from the official website), Calibration Board, black light trap, Protective cap, wristband |
| Optional Accessory |
Micro-printer
|
| Notes |
Technical parameters are for reference only, subject to
actual sales products. |
