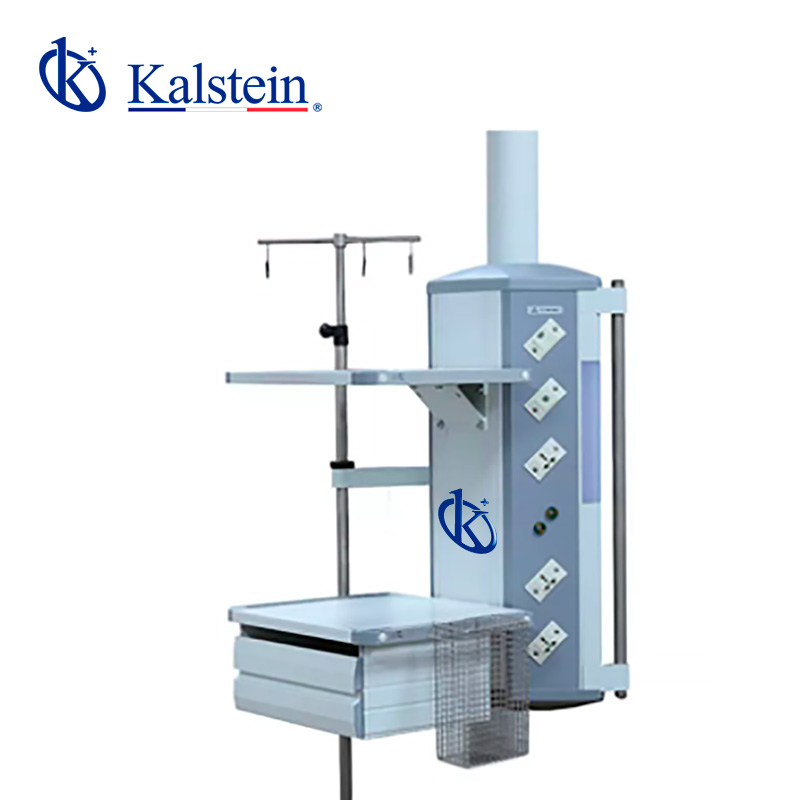

MultiPurpose Column YR02075

The MultiPurpose Column YR02075 is a versatile solution designed for medical environments, offering a modular design that accommodates various configurations. It provides different types of adapters, following German, British, American, and Australian standards, making it adaptable to a wide range of applications. This ceiling-suspended column, featuring a 340° rotating arm, incorporates an advanced friction brake system to ensure stability. With the capacity to integrate both infusion bags and pumps, the YR02075 is engineered to optimize medical operations while maintaining high efficiency in space management.

Market Price Overview

The MultiPurpose Column YR02075 is competitively priced within the medical technology market. On average, similar products can range from around $2800 to $3600 USD. To get a personalized quote, we encourage you to utilize our Kalstein Plus platform, where you can generate an automatic quotation based on your specific requirements.

Frequently Asked Questions

What is the arm's maximum rotation angle? The arm of the YR02075 can rotate up to 340 degrees, providing excellent versatility. What is the maximum load capacity? This model can support up to 120 kg, ensuring it can handle a variety of medical equipment.

Advantages and Disadvantages

One of the key advantages of the MultiPurpose Column YR02075 is its modularity, allowing healthcare facilities to customize it according to their specific needs. It includes multiple standard configurations and accessories that enhance its functionality. However, the initial setup may require professional installation to ensure proper operation and safety, which could be seen as a disadvantage for some users.

Product Use in Field

In real-world applications, the YR02075 is used primarily in hospitals and healthcare centers to streamline patient care by providing easy access to necessary medical equipment and resources. Its ability to hold infusion stands and integrate with existing hospital infrastructure makes it indispensable in dynamic healthcare settings.

Recommendations

To ensure the longevity and optimal performance of the MultiPurpose Column YR02075, regular maintenance and inspections are recommended. It is also advisable to have trained staff manage the device, especially during the initial phases of installation and usage, to acquaint them with its full range of capabilities.

Features

• Modular design with multiple configurations
• 340° arm rotation with friction brake
• Fully customizable with standard global adapters
• Easy integration of medical pumps and infusions
• Suspended ceiling installation for efficient space management

Technical Specifications

Model	YR02075
Arm rotating radius	800mm+800mm
Arm rotating angle	340°
Braking system	friction brake
Maximum load capacity	120kg
Electric socket	2 earth studs
Standard Configuration	2 oxygen(O2)
	1 air
	1 vacuum suction（VAC）
	8 10A power outlets
	1 network socket
	1 grounding terminal
Annex	2 trays
	1 drawer
	1 infusion stand
Accessories	2 equipment shelves
	1 IV pole&infusion pump rack
