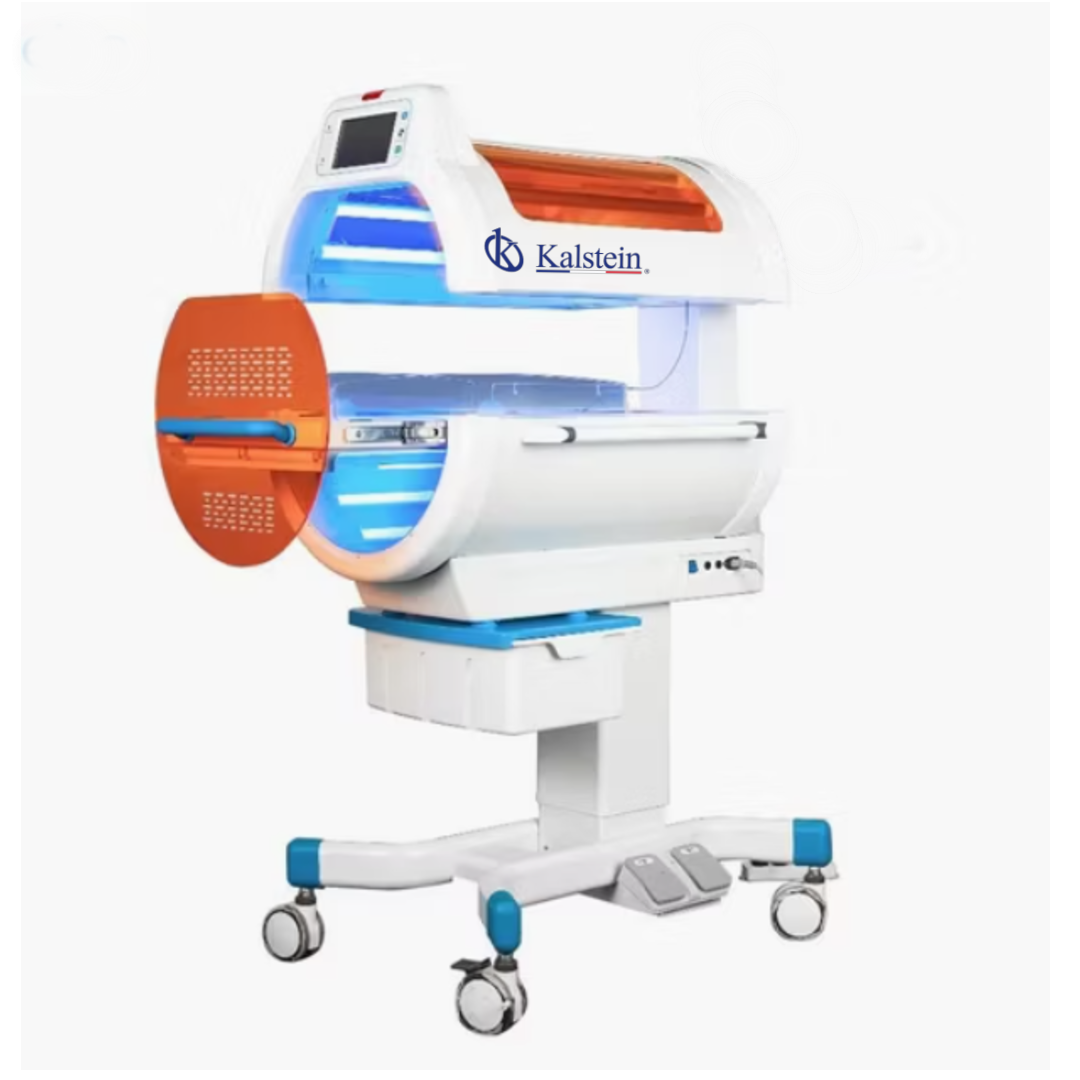

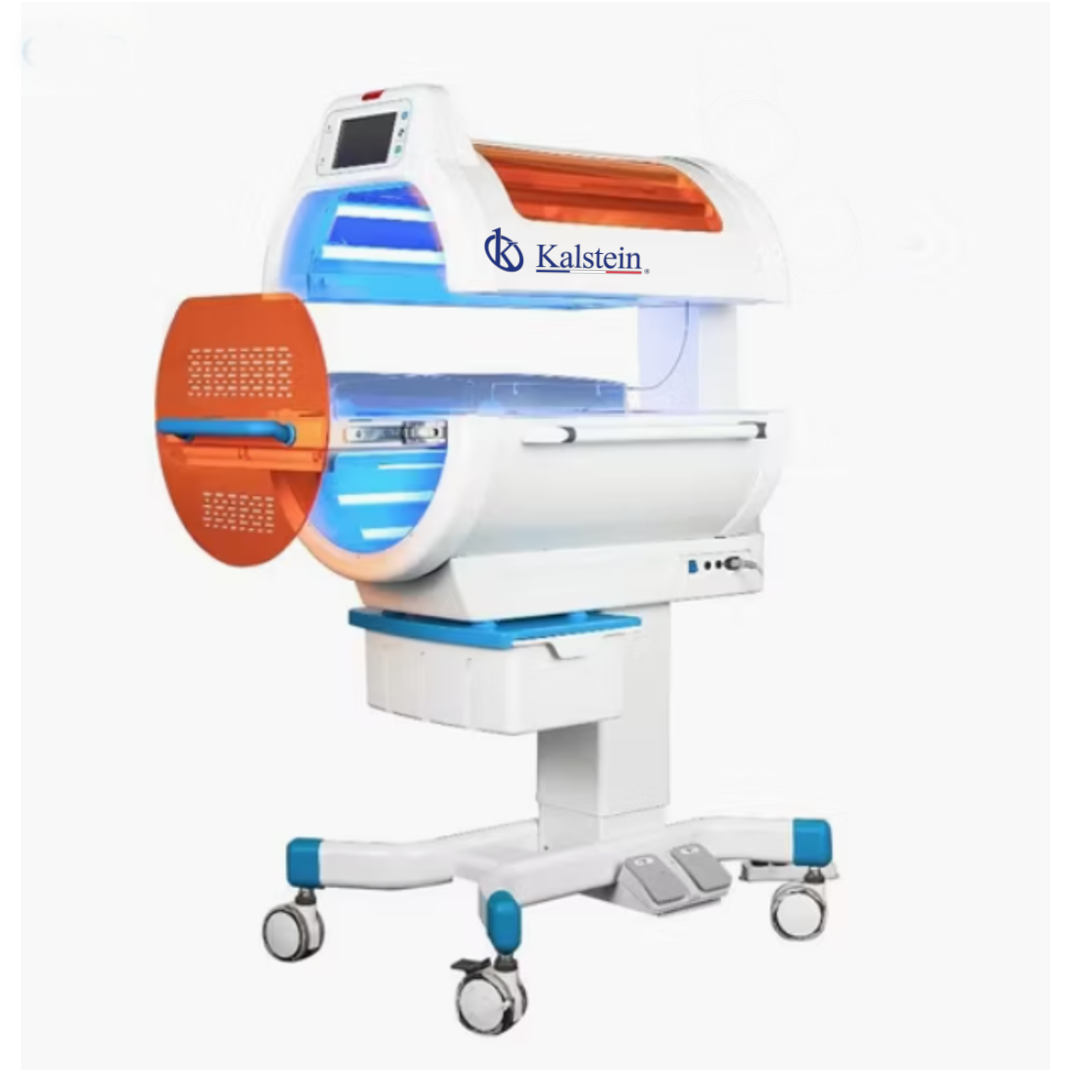

Tunnel Phototherapy YR06671

The YR06671 Tunnel Phototherapy system is an advanced medical solution specifically designed to quickly reduce bilirubin concentration in newborns. By shortening the yellowing time, this equipment achieves highly efficient treatment effects for neonatal jaundice. It is primarily aimed at neonatal intensive care units (NICU) and pediatric departments that require a combination of therapeutic speed and maximum safety for the infant.

Design and Technology (or Functionality)

This device stands out for its 360° irradiation capability without dead angles, providing a large and uniform effective irradiation area for optimal jaundice treatment. It utilizes a LED (Light Emitting Diode) source with three-level selectable intensity (33%, 66%, and 100%). Key technological features include:

• Temperature Adjustment System: An automatic system maintains the patient in a suitable ambient temperature for treatment.
• Safety and Alarms: Equipped with a 360° alarm light, allowing the operator to fully recognize alarm information from any direction.
• Clinical Observation: Includes a white LED light bulb for easy viewing of the patient's skin color without interrupting therapy.
• Adjustable Ergonomics: Optional electric elevator feet allow for height adjustment to meet the operational needs of different medical staff.

Frequently Asked Questions (FAQ)

• What is the lifespan of the lighting system? The device features a cumulative usage time display range of up to 49,999 hours and 59 minutes.
• Does the treatment stop if the bed is moved? Yes, the treatment is automatically suspended if the bed is pulled out to ensure patient safety.
• How is the end of treatment signaled? The system provides voice and text reminders when the treatment session is complete.

Advantages and Disadvantages

Advantages:

• Total Coverage: 360° uniform irradiation accelerates bilirubin breakdown.
• Smart Monitoring: Features cumulative usage time and current treatment time display (up to 99 h 59 min).
• Safety Alarms: Includes upper limit alarms for both skin temperature (33-38.5°C) and box temperature (16-42°C).
• Easy Maintenance: The baby cabin is designed neatly for easy cleaning and maintenance.

Disadvantages:

• Power Requirements: Requires an input power of ≤250VA, which must be planned for in the facility's electrical load.
• Spatial Needs: Due to its tunnel structure and the optional 200mm lift stroke, it requires a dedicated area within the ward.

Field Use and Recommendations

The YR06671 is ideal for use in NICUs, maternity hospitals, and high-complexity health centers. Medical staff should monitor the skin temperature display (range 5-65°C) to ensure it stays within the safe upper limit. For optimal results, ensure the 360° alarm light is visible to the nursing station and the adjustable irradiation intensity is set according to the infant's specific bilirubin levels.

Technical Specifications

Specification	characteristics
Model	YR06671
Light Source	LED (Light Emitting Diode)
Effective Wavelength	400 nm ~ 550 nm
Irradiation Intensity	Selectable on 33%, 66%, 100%
Max Irradiance (Upper)	3600 μw/cm²
Max Irradiance (Lower)	3200 μw/cm²
Effective Irradiation Area	400 mm x 250 mm
Uniformity of Total Irradiance	> 0.4
LED Lighting (Examination)	≥ 1700 Lux
Working Power Supply	AC 100 V ~ 240 V
Input Power	≤ 250 VA
Lift Stroke Range (Optional)	0 ~ 200 mm
Packaging Dimensions	98 x 65 x 115 cm (Approx.)
Equipment Weight	Approx. 65 kg (Net) / 85 kg (Gross)
