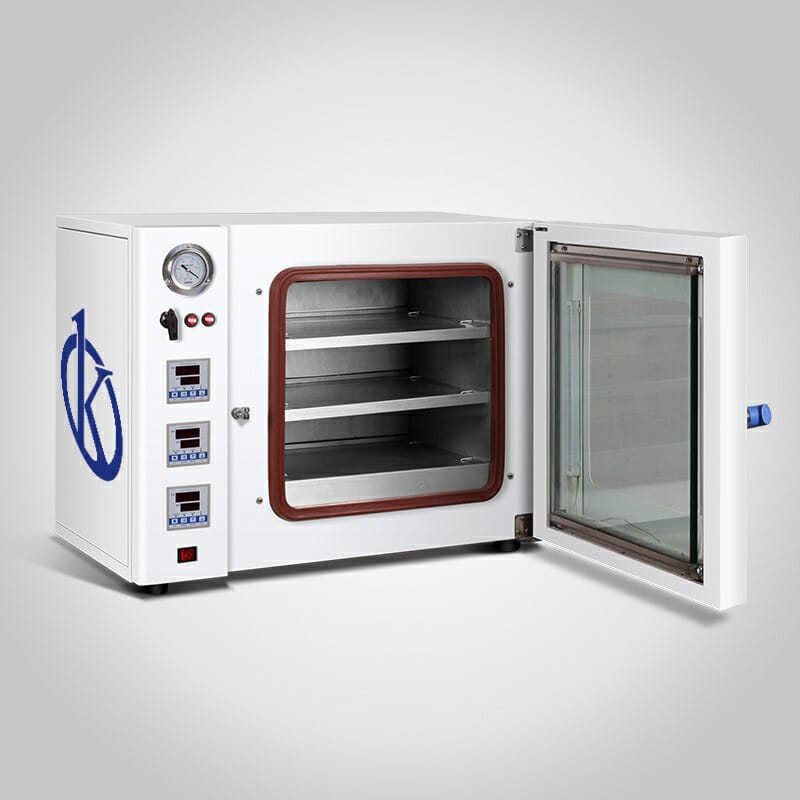

Vacuum Drying Oven YR05265-1 (SS) // YR05995 (S)

ManufacturerKalstein

Description

Vacuum Drying oven widely used in biochemical, chemical and pharmaceutical, health care, agricultural research, environmental protection and other research applications for powder Drying and roasting, as well as disinfection and sterilization of glass containers used.

Technology Advantage:

The vacuum environment greatly reduces the boiling point of the liquid to be removed, so vacuum drying can be easily applied to heat sensitive substances. For samples that are not easy to dry, such as powder or other granular samples, vacuum drying can effectively shorten the drying time.

Structure Features:
  • The inner chamber is of arc-shaped design, the outer is made of cold-rolled steel plate, and the surface is electrostatically sprayed.
  • Stainless steel interior or cold-rolled steel interior.
  • The tightness of the cabinet door can be adjusted by the customer. The integrally formed silicone rubber door sealing ring ensures the high vacuum in the cabinet
  • The control panel adopts microcomputer intelligent PID control, with timing and over temperature alarm functions.
  • Tempered and explosion-proof double-layer glass door.
Technical Specification:
Model YR05265-1 (SS) YR05988 (S) YR05989 (S) YR05990 (S) YR05991 (S)
Voltage (V) 220
Temp.range (℃) 50~200
Timer 0~999 min
Accuracy (℃) ±1
Vacuum degree Pa <133
Power (KW) 2 0.8 1.2 2 2
Interior (mm)
(H×W×D)
485x440x500 315×265×280 400×370×350 485×400×425 485x440x500
Exterior (mm)
(H×W×D)
1580x700x720 450×635×465 570×750×515 620×780×600 1580x700x720
Package Size (mm)
(H×W×D)
1770x790x790 570×720×545 690×830×600 740*900*710 1770x790x790
Net.Weight (Kg) 120 45 68 85 120
Model YR05992 (S) YR05993 (S) YR05994 (S) YR05995 (S)
Voltage (V) 220
Temp.range (℃) 50~200
Timer 0~999 min
Accuracy (℃) ±1
Vacuum degree Pa <133
Power (KW) 1 1.4 2 2
Interior (mm)
(H×W×D)
280×265×245 370×370×315 455×440×390 485x440x500
Exterior (mm)
(H×W×D)
450×635×465 570×750×515 620×780×600 1580x700x720
Package Size (mm)
(H×W×D)
570×720×545 690×830×600 740*900*710 1770x790x790
Net. Weight (Kg) 43 66 81 120

Additional information

Weight N/A
Dimensions N/A
Model

YR05265-1 (SS), YR05988 (S), YR05989 (S), YR05990 (S), YR05991 (S), YR05992 (S), YR05993 (S), YR05994 (S), YR05995 (S)
