Water Recirculation System for Cooling YR06663
Water Recirculation System for Cooling YR06663 — equipo de laboratorio Kalstein con especificaciones técnicas, características avanzadas y soluciones profesionales certificadas para uso científico.

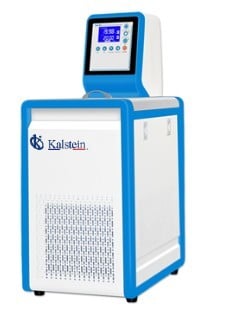

The YR06663 Cooling Water Recirculation System is a professional solution designed to ensure stable, efficient, and continuous cooling in environments where thermal control and water quality are critical. With a production capacity of 250 L/h and a circulation rate of 4.3 L/min , this system is ideal for laboratories, universities, research centers, and light industries requiring reliable and repeatable processes. It operates on municipal potable water , supports 110–240 V / 50–60 Hz , and features low power consumption (48–72 W) , optimizing long-term operating costs.The system integrates advanced filtration (20” PP filter, sand and activated carbon tanks, and a 4040 type RO membrane ) that ensures 97–99% ion rejection , >99% particle and bacteria rejection , and >99% organic matter rejection , contributing to clean and stable recirculation. It also includes a 200L storage tank , a TDS meter , and a complete accessory kit , guaranteeing autonomy and ease of use on a daily basis.In the market, recirculation and cooling systems with these features are typically competitively priced , depending on the configuration and included technical support. At Kalstein , you can request a personalized quote or generate an automatic quote from Kalstein Plus , tailored to your specific operational needs and budget.
Design and Technology (Functionality)
The YR06663 stands out for its intuitive LCD screen , which allows independent control of heating, cooling, and internal/external circulation functions . Its high-performance circulation and agitation motor offers low noise levels , minimal heat generation, and a long service life thanks to its fully sealed design.The 304 stainless steel construction (top plate and inner tank) provides high corrosion resistance , while the pagoda-style connections and integrated, concealed drain valve ensure safety, hygiene, and durability. It includes power failure protection and an over-temperature alarm , raising operational safety standards.Frequently Asked Questions (FAQ)
What type of water does the system use?Urban drinking water, with TDS < 500 ppm and an inlet temperature between 5–40 °C .How often are consumables replaced?- PP filter and sand/carbon tanks: every 4–6 months .
- RO membrane: every 1–2 years (depending on usage and water quality).
Advantages and Disadvantages
Advantages- Stable and efficient cooling and recirculation .
- Low energy consumption and quiet operation.
- High quality materials (304 stainless steel).
- Intelligent control via LCD screen.
- Excellent water quality thanks to advanced filtration.
- It requires periodic maintenance of consumables.
- Payment terms: T/T 100% in advance .
Product Use in the Field
The YR06663 is widely used for equipment cooling , thermal circulation in experimental processes , and cleaning laboratory glassware , where flow stability and water purity are critical. Its 200 L tank allows for continuous operation , reducing downtime and improving productivity during busy periods.Recommendations
To maximize performance, it is recommended to monitor TDS regularly , adhere to filter replacement schedules , and maintain the system within the specified pressure (0.15–0.5 MPa) and temperature ranges. Proper installation and preventive maintenance will extend the equipment’s lifespan and ensure consistent results.Technical Specifications
| Model | YR06663 |
| Camera volume | 6 L |
| Temperature range | -5 ~ 100 ℃ |
| Total power | 1200 W |
| Heating power | 1000 W |
| Screen accuracy | 0.1 °C |
| Camera dimensions | 270 * 200 * 130 mm |
| Camera aperture | 180 * 140 mm |
| External circulation pump speed | 10 L/min |
| Elevation (Pump Head) | 3M |
| Cooling input power | 160 W |
| External diameter of circulation joint | 10 mm Pagoda Type Connector |
| Product dimensions (L x W x H) | 440 * 300 * 740 mm |
| Packaging dimensions (LnAl) | 510 * 370 * 770 mm |
| Net weight | 30 kg |
| Gross weight | 35 kg |
Technical specifications
| Dimensions | L 51 × W 37 × H 77 cm |
|---|---|
| Weight | 35 kg |
| Manufacturer | Kalstein |
Frequently asked questions
How to know the prices of Water Recirculation System for Cooling YR06663?
To know the price of Water Recirculation System for Cooling YR06663, please send us an email with your request through the contact form AQUI.
What are the delivery times for Water Recirculation System for Cooling YR06663?
Delivery time depends on stock availability and freight type (air or sea). In stock: air 15-30 days, sea 45-60 days. Out of stock: air 30-60 days, sea 60-90 days.
How to make a purchase of Water Recirculation System for Cooling YR06663?
You can buy by email ([email protected]), phone (+33 (0) 1 70 39 26 50) or through the official Kalstein website in your country.
How does the warranty work for Water Recirculation System for Cooling YR06663?
All Kalstein equipment comes with a 1-year warranty against manufacturing defects. The warranty does not cover damage from improper installation or misuse. See our «terms and conditions» AQUI.
Can I request a quote online for Water Recirculation System for Cooling YR06663?
Yes, you can request a quote for the Kalstein equipment you are interested in directly from our official website. Click AQUI.
