Description
Online industrial conductivity controller, 1 to 3 point calibration, 4 to 20 mA outputs. The meter is suitable for monitoring conductivity and total dissolved solids (TDS) of water quality.
Characteristics

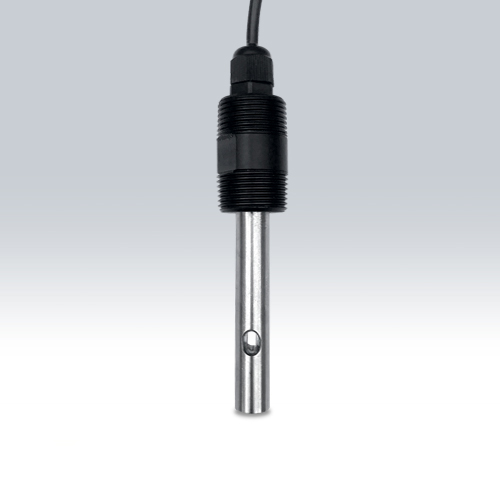

- The inexpensive inline conductivity controller comes with a platinum conductivity electrode.
- 1 to 3 point calibration with automatic recognition of conductivity standards.
- Selectable cell constant, temperature coefficient and TDS conversion factor.
- Automatic temperature compensation ensures accurate readings throughout the range.
- The configuration menu allows you to configure the number of calibration points, alarm limits, hysteresis value, 4 to 20 mA output, etc.
- The reset function automatically resumes all settings to the factory default values.
| Model | YR01839 |
| Conductivity | |
| Range | 0.01 to 20.00, 200.0, 2000µS/cm, 20.00, 200.0mS/cm |
| Resolution | 0.001, 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| Calibration Points | 1 to 3 points |
| Calibration Solutions | 84uS, 1413uS, 12.88mS, 111.8mS |
| TDS | |
| Range | 0 to 10.00, 100.0, 1000ppm, 10.00, 200.0ppt |
| Resolution | 0.01, 0.1, 1 |
| Accuracy | ±1% F.S. |
| TDS Factor | 0.1 to 1.0 (default 0.5) |
| Temperature | |
| Range | 0 to 100°C/32 to 212°F |
| Resolution | 0.1°C/0.1°F |
| Accuracy | ±1°C/±1.8°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C |
| Communication | |
| Signal Output | 4 to 20mA |
| Load | Max. 500Ω |
| Low or High Alarm | 0.02uS/cm to 20.0mS/cm, selectable |
| Communication Interface | RS485 |
| Connection Terminals | Detachable screw terminals |
| General Specifications | |
| Temperature Compensation | 0 to 100°C/32 to 212°F, automatic |
| Temperature Coefficient | Linear (0.0 to 10.0%/°C) |
| Reference Temperature | 25°C |
| Cell Constant | K=0.1, 1, 10 |
| Environmental Conditions | Ambient temperature <60°C, relative humidity <80% |
| Power | DC24V |
| Dimensions | 96(L)×96(W)×75(H)mm |
| Weight | 350g |
