Understanding the Scientific Principles Behind the YR06221 Infant Phototherapy Unit

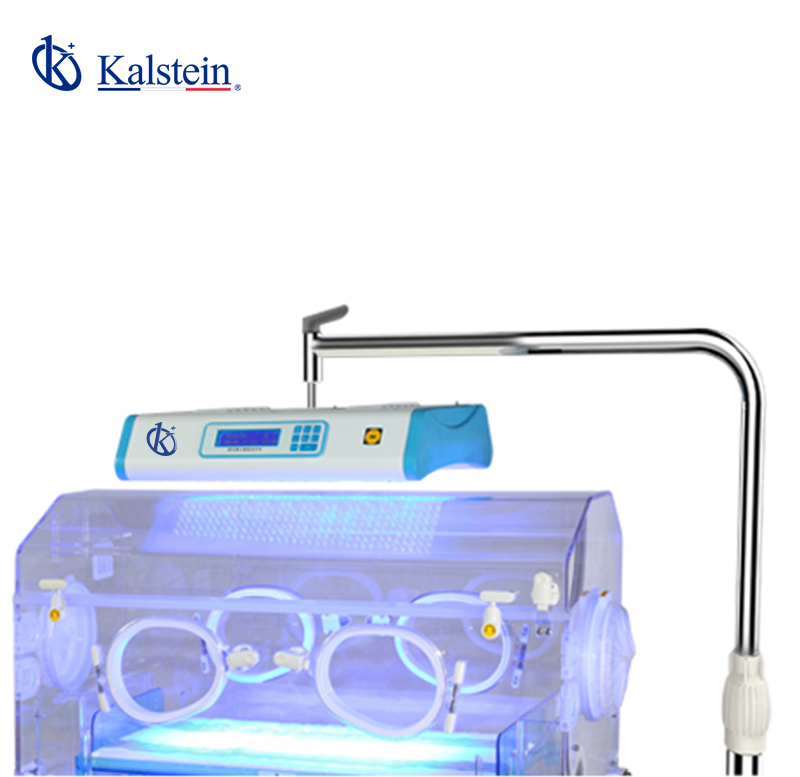

The YR06221 Infant Phototherapy Unit is a sophisticated medical device designed for the treatment of neonatal jaundice. This article delves into the underlying scientific principles, operational mechanisms, and the technical specifications of the YR06221 to provide a comprehensive understanding of its functionality and application in clinical settings.
Principle of Operation
The primary goal of the YR06221 is to reduce bilirubin levels in newborns through phototherapy. The principle of operation is based on the photochemical reaction that occurs when bilirubin is exposed to specific wavelengths of light. This process transforms bilirubin into water-soluble isomers that can be excreted easily by the baby's body.
Bilirubin, a byproduct of the breakdown of red blood cells, is typically processed by the liver. In newborns, especially preterm infants, the liver may not be fully developed, resulting in elevated bilirubin levels. The YR06221 employs blue LED lights that emit wavelengths between 400nm and 550nm, which are effective in facilitating this transformation.
Technical Specifications of the YR06221
| Specification | Details |
|---|---|
| Model | YR06221 |
| Bilirubin Radiancy (40cm) | 3750μw/cm² (62.5μw/cm²/nm) |
| Bilirubin Radiancy (50cm) | 3200μw/cm² (53μw/cm²/nm) |
| Lighting Intensity | 33%, 67%, 100% |
| White Light | Yes |
| Power | ≤60VA |
| Wave Length | 400nm~550nm |
| Radiant Space | 400×250mm |
| Radiant Uniformity | >0.4 |
| Therapy Time Set | 0-99h59m |
| Height Range | 1350mm~1650mm |
Key Design Choices
The design of the YR06221 is a result of careful consideration of several factors that enhance its effectiveness and usability. Firstly, the use of LED lights is crucial as they emit the necessary wavelengths without generating excessive heat, which could harm sensitive newborn skin.
The adjustable height feature (1350mm to 1650mm) allows clinicians to position the unit optimally based on the infant's size and the clinical setting. This flexibility ensures that the light source is directed accurately, maximizing therapeutic efficacy.
Effectiveness of Bilirubin Reduction
Clinical studies have demonstrated that phototherapy, when conducted correctly, can significantly reduce bilirubin levels in infants. The YR06221's ability to deliver high bilirubin radiancy is vital for effective treatment. With a radiancy of 3750μw/cm² at 40cm distance, it can efficiently convert unbound bilirubin to a water-soluble form, facilitating its elimination from the body.
It is essential to monitor bilirubin levels regularly during treatment to assess effectiveness. Clinicians should utilize tools such as transcutaneous bilirubinometers alongside the YR06221 for comprehensive patient management.
Operational Guidelines for the YR06221
Before using the YR06221, operators must ensure that the unit is set up correctly. This includes verifying the power supply, ensuring that the light components are functioning as intended, and calibrating the intensity settings based on the specific needs of the patient.
During operation, continuous monitoring of the infant's skin condition and bilirubin levels is critical. The LCD screen on the YR06221 provides real-time data on operational time and current settings, allowing for efficient tracking and adjustments as needed.
Common Misinterpretations in Phototherapy Treatment
One common misunderstanding is the belief that higher light intensity always equates to better results. While intensity is essential, it must be balanced with exposure time and the infant’s tolerance. Overexposure to light can lead to skin irritation or other adverse effects.
Furthermore, clinicians should not overlook the importance of other supportive treatments, such as hydration and monitoring for other conditions that may influence bilirubin levels.
Frequently Asked Questions
What is the optimal distance for the YR06221 during treatment?
The optimal distance for the YR06221 is typically 40cm from the infant's skin. This distance allows the unit to deliver maximum bilirubin radiancy while minimizing potential thermal injury.
How frequently should bilirubin levels be monitored during phototherapy?
Bilirubin levels should be monitored at least every 4-6 hours during phototherapy to ensure effective treatment and to adjust the therapy as necessary based on the results.
Can the YR06221 be used for long-term treatment?
The YR06221 is designed for short-term treatment of neonatal jaundice. Long-term phototherapy is generally not recommended, and alternative treatments should be considered if jaundice persists.
What are the indications for using the YR06221?
The YR06221 is indicated for use in infants with elevated bilirubin levels, particularly those diagnosed with physiological or pathological jaundice, that require phototherapy to manage their condition effectively.
How does the YR06221 compare to traditional phototherapy methods?
Unlike traditional phototherapy methods that may use fluorescent lamps, the YR06221 utilizes LED technology, which is more energy-efficient, produces less heat, and has a focused wavelength that is optimal for bilirubin degradation.
What safety precautions should be taken when using the YR06221?
Operators must ensure that the infant's skin is protected from direct exposure to light for prolonged periods. Regular checks for signs of irritation or discomfort are also essential, along with monitoring bilirubin levels continuously.
How can I ensure the YR06221 is functioning correctly before use?
Before use, perform a comprehensive check of all components, ensure the unit powers on and displays the correct settings, and conduct a calibration test if necessary to confirm proper operation.
