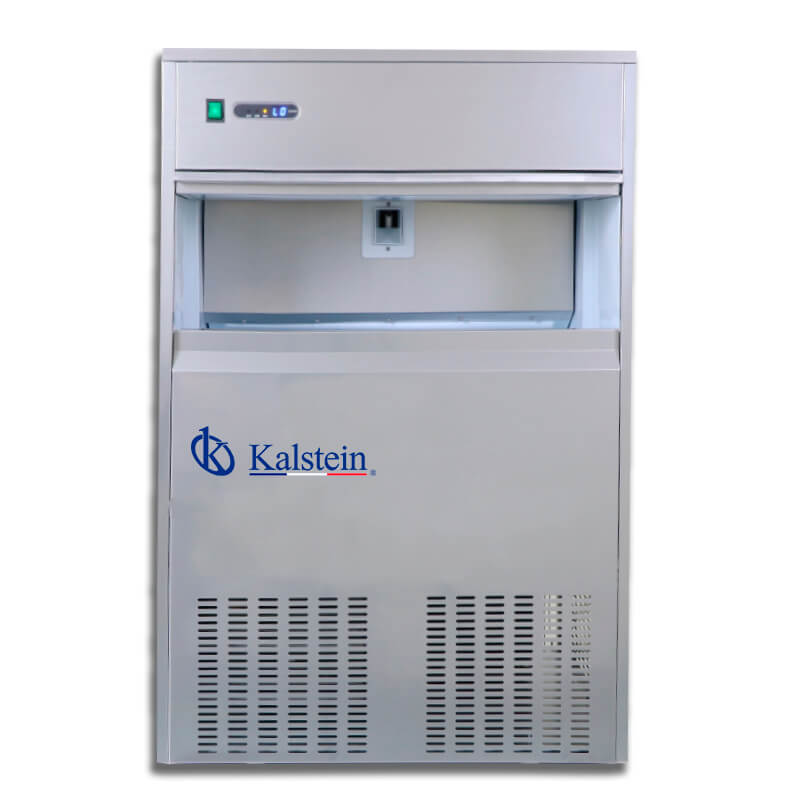

Site Requirements and Installation Conditions for the YR05141 Shaved Ice Machine
The YR05141 Shaved Ice Machine is a highly efficient device designed for producing quality shaved ice quickly. However, to achieve optimal performance, understanding the specific site requirements and installation conditions is critical. This guide delves into the crucial environmental factors and installation prerequisites to ensure the YR05141 operates effectively and reliably.
Understanding the YR05141's Environmental Conditions
The YR05141 operates best under certain environmental conditions. Factors such as temperature, humidity, voltage, and ventilation play significant roles in its performance.
Temperature and Humidity
The ideal operating temperature for the YR05141 ranges from 10°C to 35°C (50°F to 95°F). High ambient temperatures can negatively impact the efficiency of the ice-making process. Additionally, humidity levels should be maintained between 40% and 70%. High humidity can lead to excessive moisture build-up, affecting the machine's operation.
Voltage and Frequency
The YR05141 is designed to operate on a power supply of either 220V/50Hz or 110V/60Hz. It is essential to ensure that the power supply matches the machine's requirements to prevent damage and ensure optimal performance. Users must also confirm the availability of a stable and reliable power source.
Ventilation Requirements
Proper ventilation is crucial for the YR05141 to prevent overheating. The machine must be installed in a location with sufficient airflow and should not be placed near walls or obstructions that could restrict air circulation. Ensure that the machine has at least 30 cm (12 inches) of clearance on all sides.
Installation Requirements for the YR05141
Installing the YR05141 involves several steps that ensure the machine functions correctly and safely. Here’s a comprehensive checklist to assist in the installation process.
Unboxing and Inspection
Upon receiving the YR05141, carefully unbox the machine and inspect for any visible damage. Ensure all components are included as per the manufacturer's checklist.
Location Selection
- Choose a flat and stable surface for installation.
- Avoid areas exposed to direct sunlight or heat sources.
- Ensure proximity to water supply for efficient operation.
Power Connection
Connect the YR05141 to the appropriate power source as per the voltage specifications. Ensure the connection is secure and that the outlet can handle the load without tripping circuits.
Water Supply and Drainage
The YR05141 requires a continuous supply of clean water. Connect to the nearest water source, ensuring hose fittings are secure to avoid leaks. Additionally, ensure that drainage is set up to handle excess water efficiently, preventing pooling around the machine.
Technical Specifications of the YR05141
| Specification | Details |
|---|---|
| Model | YR05141 |
| Ice Production Capacity | 250 Kg / 24 h |
| Ice Storage Capacity | 60 Kg |
| Voltage | 220V / 50Hz or 110V / 60Hz |
| Power | 1100 W |
| Cooling Type | Air Cooling |
| Refrigerant | R134a |
| Water Supply | Tap Water |
| Net Weight | 80 Kg |
| Dimensions | 680 x 611 x 1100 mm |
Frequently Asked Questions
What are the optimal environmental conditions for operating the YR05141?
The optimal operating temperature for the YR05141 is between 10°C to 35°C (50°F to 95°F) with humidity levels between 40% and 70%. These conditions help maintain efficient ice production.
How do I ensure proper ventilation for the YR05141?
Ensure that the YR05141 is installed with at least 30 cm (12 inches) of clearance on all sides. Avoid placing it near walls or other obstacles that could block airflow.
What kind of power supply is needed for the YR05141?
The YR05141 requires either a 220V/50Hz or a 110V/60Hz power supply. Make sure the outlet can provide the necessary voltage to avoid any operational issues.
Is a water supply necessary for the YR05141?
Yes, the YR05141 needs a continuous supply of clean tap water for efficient operation. It is essential to connect it to a reliable water source.
What should I do if the YR05141 is not producing ice?
Check the power connection, water supply, and ensure the machine is within the correct temperature and humidity range. If issues persist, consult the user manual for troubleshooting steps.
Can the YR05141 be used in a commercial setting?
Yes, the YR05141 is designed for both commercial and residential use, making it suitable for restaurants, food trucks, and events.
How can I request a quote for the YR05141?
To request a quote for the YR05141, please reach out to our sales team through our official channels.
