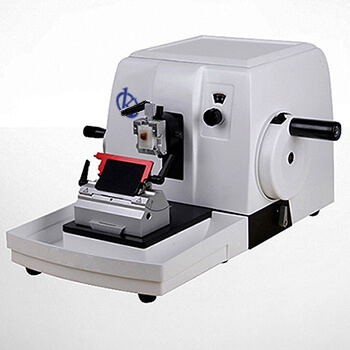

Technical Glossary and Key Terminology of the YR417 Microtome
The YR417 Microtome is a sophisticated device designed to meet the multiple requirements of histology or histopathology laboratories. This article provides an in-depth exploration of the key technical terminology associated with the YR417, aiding operators in maximizing its functionality and ensuring optimal performance.
Understanding the YR417 Microtome
The YR417 Microtome is engineered for flexibility and high precision, making it suitable for various laboratory environments, including research and industrial quality control laboratories. With the ability to achieve high-quality sections, this microtome has become an essential tool in histological studies.
Technical Specifications of the YR417
| Specification | Details |
|---|---|
| Model | YR417 (current) |
| Cutting thickness adjustment range | 0-60 μm |
| Minimum cutting thickness setting | 1 μm |
| Maximum sample size | 70×70 mm |
| Cutting thickness options | 15 μm and 35 μm |
| Sample retraction | 60 μm (optional) |
| Total horizontal sample feed | 28 mm |
| Vertical sample stroke | 70 mm |
| Blade Holder Base movement range | 0-60 mm (front to back) |
| Blade pressure plate movement range | 0-23 mm |
| Sample holder rotation | Any angle within 360 degrees |
| Sample orientation | XY-8° |
| Precision error | ±1% |
| Dimensions | 590×500×330 mm (Width×Depth×Height) |
| Net weight | 37 kg |
Technical Terminology
This section defines critical terms relevant to the YR417 Microtome, providing a comprehensive glossary for operators.
| Term | Definition |
|---|---|
| Microtome | A device used to cut extremely thin slices of material, known as sections. |
| Histology | The study of the microscopic structure of tissues. |
| Cutting Thickness | The thickness of the section cut by the microtome, adjustable based on requirements. |
| Sample Holder | Component that secures the sample during the cutting process. |
| Blade Holder | An assembly that holds the blade in place, allowing for precise cuts. |
| Retraction | The movement of the sample holder away from the blade to prepare for the next cut. |
| Vertical Stroke | The distance the sample holder moves vertically during the cutting process. |
| Horizontal Feed | The forward movement of the sample holder between cuts. |
| Precision Error | The margin of error in measurement, expressed as a percentage. |
| XY Orientation | The alignment of the sample in the XY plane, crucial for accurate sectioning. |
Benefits of Understanding Technical Terminology
Familiarity with the technical terms associated with the YR417 Microtome enhances user proficiency, promoting efficient operation and helping prevent errors during usage. Operators who understand these terms can make informed decisions regarding the operation and maintenance of the equipment, optimizing its performance.
Frequently Asked Questions
What is the maximum sample size for the YR417 Microtome?
The maximum sample size that can be processed by the YR417 Microtome is 70×70 mm, allowing for versatility in handling various sample types.
How does the cutting thickness adjustment work on the YR417?
The YR417 Microtome allows users to adjust the cutting thickness from 0 to 60 μm, with minimum settings available at 1 μm, providing flexibility for different histological applications.
What is the importance of precision error in the YR417 Microtome?
Precision error, rated at ±1% for the YR417 Microtome, indicates the device's accuracy, which is critical for producing reliable and standardized histological sections.
Can I use the YR417 Microtome for research purposes?
Yes, the YR417 Microtome is suitable for both clinical and research laboratories, making it ideal for histological studies in various fields.
What maintenance is required for the YR417 Microtome?
Regular maintenance for the YR417 Microtome includes cleaning the blade holder and sample holder, checking for precision errors, and replacing blades when necessary to ensure optimal performance.
Are there optional accessories for the YR417 Microtome?
Yes, there are several optional accessories for the YR417 Microtome that enhance its functionality, including advanced blades and specialized sample holders.
To learn more about the YR417 Microtome and how it can meet your laboratory needs, please request a quote on Kalstein Plus.
