Troubleshooting Common Errors on the YR02176 Bedside Monitor: A Comprehensive Guide
The YR02176 Bedside Monitor is an essential device in clinical settings, providing critical patient data through its modular parameters. However, like any sophisticated equipment, it can encounter errors that may affect its performance. This guide provides a detailed troubleshooting approach for common errors associated with this model, ensuring you can maintain its operational integrity.

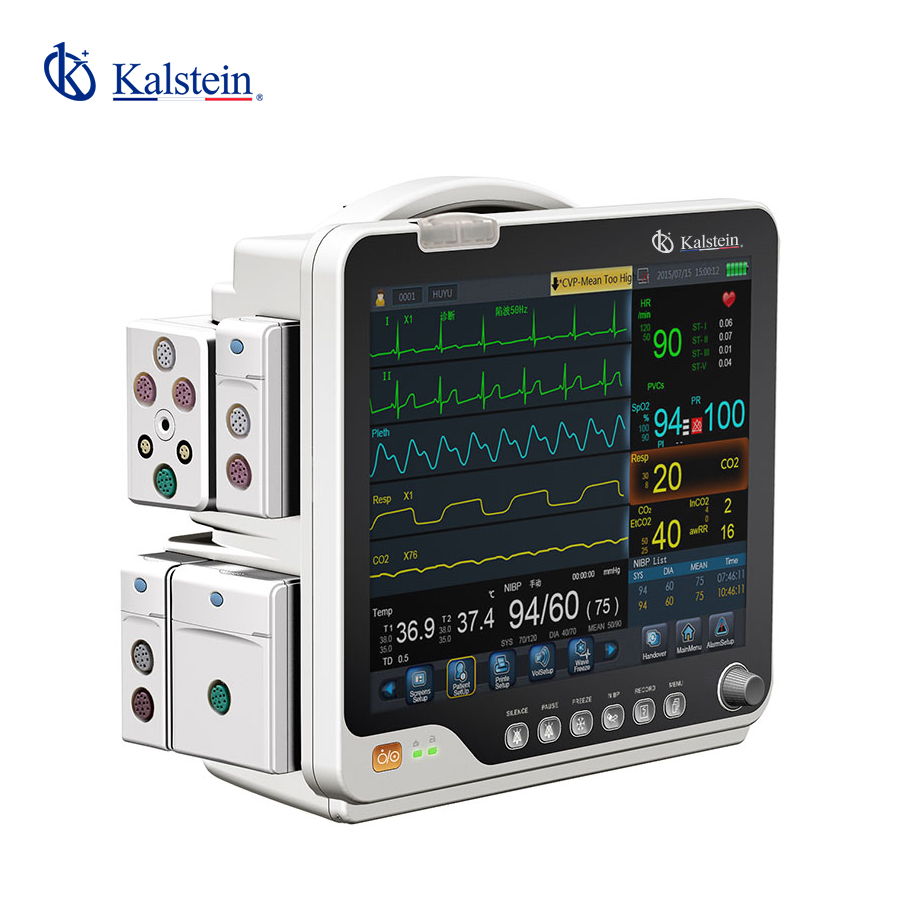

Understanding the YR02176 Bedside Monitor
The YR02176 is designed for use in operating rooms and intensive care units. It features a 15-inch LCD screen and standard parameters, including ECG, SpO2, Temperature, NIBP, Respiratory Rate, and Heart Rate. With modular configurations, it allows flexibility in various medical applications.
Technical Specifications of YR02176
| Model | YR02176 |
|---|---|
| Brand | Kalstein |
| Category | Patient Monitor |
| Price (USD) | 1908.00 |
| Gross Weight | 7 kg |
| Dimensions | 42.5 x 32 x 41 cm |
Troubleshooting by Symptoms
This section categorizes common errors you may encounter while using the YR02176, along with probable causes and solutions.
Equipment Does Not Power On
There are several reasons why the YR02176 might not power on. Below are probable causes and solutions:
- Cause: Power cable is disconnected.
Solution: Ensure that the power cable is securely connected to both the monitor and the wall outlet. - Cause: Faulty power outlet.
Solution: Test the outlet with another device to confirm functionality. - Cause: Internal fuse is blown.
Solution: Inspect and replace the internal fuse if necessary.
Error Code E-03
The error code E-03 typically indicates an issue with the ECG leads. Here’s how to address it:
- Cause: Poor contact with skin.
Solution: Clean the skin area where the electrodes are applied, and ensure that the electrodes are properly placed. - Cause: Damaged ECG leads.
Solution: Inspect the leads for any visible damage and replace them if necessary.
Inconsistent Readings
Inconsistent readings can lead to erroneous patient assessments. Key causes and their solutions include:
- Cause: Patient movement.
Solution: Minimize patient movement during monitoring for accurate readings. - Cause: Incorrect probe placement.
Solution: Reassess and correctly place the probes or sensors as per the user manual.
Symptom-Cause-Solution Matrix
| Symptom | Probable Cause | Solution |
|---|---|---|
| Equipment Does Not Power On | Power cable disconnected | Reconnect the power cable |
| Error Code E-03 | Poor contact with ECG leads | Clean skin and reapply electrodes |
| Inconsistent Readings | Patient movement | Minimize movement during monitoring |
Frequently Asked Questions
How do I reset the YR02176 Bedside Monitor?
To reset the YR02176, turn off the unit, disconnect it from the power source for approximately 30 seconds, then reconnect and power it on again. This action can clear temporary glitches.
What should I do if the SpO2 readings are inaccurate?
If you experience inaccurate SpO2 readings, check the sensor placement, ensure it is not too tight or too loose, and check the patient’s circulation in the finger or site where the sensor is applied.
Can I use the YR02176 in a pediatric setting?
The YR02176 is suitable for pediatric use as long as the appropriate modules and settings are configured to accommodate the specific needs of pediatric patients.
What maintenance is required for the YR02176 Bedside Monitor?
Regular cleaning of the monitor, checking connections, calibrating sensors, and ensuring firmware updates are essential for maintaining the device's functionality.
How can I ensure accurate temperature readings on the YR02176?
For accurate temperature readings, use the dual-temperature feature and ensure that the probes are correctly placed. Regular calibration against known standards is also recommended.
What kind of support is available for troubleshooting the YR02176?
Technical support is available through authorized service centers. Comprehensive manuals and troubleshooting guides are also provided with the device to assist users.
