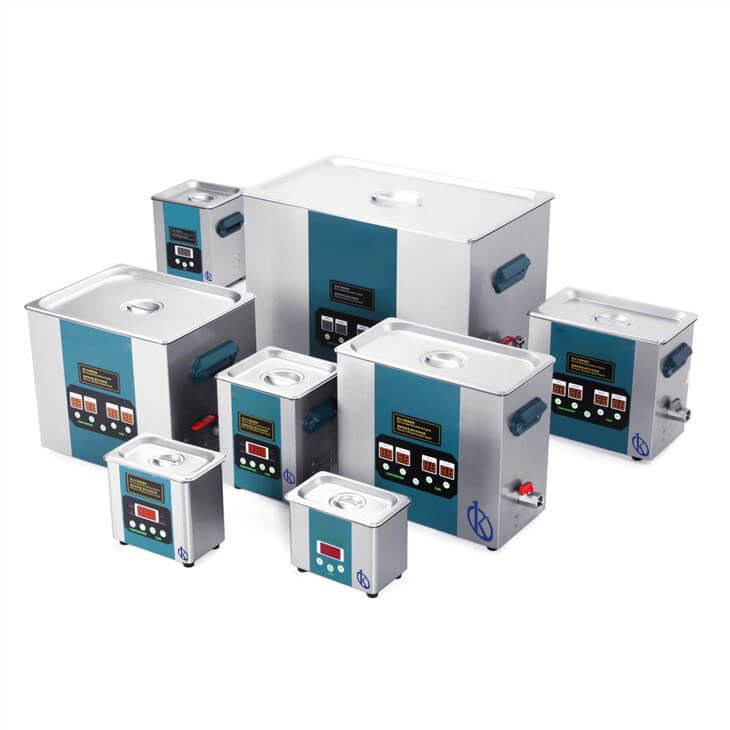

Understanding Measurement Interpretation and Results Reading with the YR05217 Ultrasonic Cleaner
The YR05217 stainless steel heated ultrasonic cleaner is a versatile laboratory tool designed to produce high-quality cleaning through ultrasonic waves. This article delves into the interpretation of results and the correct reading of measurements, specifically focusing on the unique features and capabilities of the YR05217 model.
Introduction to the YR05217 Ultrasonic Cleaner
The YR05217 model stands out in the realm of ultrasonic cleaning devices due to its superior efficiency and advanced features. With a spacious internal volume of 22 liters and adjustable temperature settings, this model is designed to meet various cleaning needs while ensuring optimal measurement and interpretation of results.
Technical Specifications of the YR05217 Ultrasonic Cleaner
| Model | Internal Dimensions (L x W x H) | External Dimensions (L x W x H) | Volume (L) | Gross Weight (kg) | Ultrasonic Power (W) | Heating Power (W) | Drain Valve | Frequency (kHz) | Hour (Min.) |
|---|---|---|---|---|---|---|---|---|---|
| YR05217 | 500 x 300 x 150 | 560 x 320 x 317 | 22 | 14.5 | 480 | 500 | Yes | 40 | 1-99 |
Understanding Ultrasonic Cleaning and Measurement Interpretation
Ultrasonic cleaning operates on the principle of cavitation, where high-frequency sound waves create microscopic bubbles in the cleaning solution. When these bubbles implode, they produce tiny shockwaves that effectively dislodge dirt and contaminants from surfaces. Understanding how this process impacts measurement interpretation is crucial.
When utilizing the YR05217, measurements can vary based on the cleaning solution, temperature settings, and duration of cleaning. Operators must familiarize themselves with the operational parameters to ensure accurate readings and optimize cleaning performance.
Reading Measurements: Units and Normal Ranges
The YR05217 features a digital display that shows key operational metrics, including temperature and cleaning time. Knowing the units of measurement and their normal ranges is essential for effective interpretation.
For temperature, the adjustable range is between 20°C to 80°C, allowing users to select the optimal setting based on the cleaning requirements. Cleaning duration can be set between 0 to 30 minutes, which must be tailored to the degree of contamination. Misinterpretation of these values can lead to inadequate cleaning or equipment damage.
Common Misinterpretations in Results Reading
Operators may face challenges when interpreting results from the YR05217. Common misinterpretations include:
- Assuming higher temperatures always yield better cleaning results.
- Overlooking the importance of cleaning time in relation to the type of contaminants.
- Misreading the digital display due to inadequate lighting or positioning.
To avoid these pitfalls, operators should be trained on both the equipment and the cleaning process, ensuring that they can accurately interpret results and make informed adjustments.
Examples of Effective Measurement Interpretation
To illustrate effective measurement interpretation, consider the following scenarios:
- Scenario 1: A user sets the temperature to 70°C for 15 minutes, resulting in a significant reduction in contaminants.
- Scenario 2: A user sets the temperature to 30°C for 5 minutes, resulting in minimal cleaning. This indicates that the selected parameters were inadequate for the level of contamination present.
These examples emphasize the need to correlate temperature and time settings with expected cleaning outcomes.
Technical Challenges and Solutions
| Symptom | Probable Cause | Diagnostic Steps | Concrete Fix |
|---|---|---|---|
| Equipment does not power on | Power supply issue | Check power cord and outlet | Replace faulty power cord |
| Inconsistent cleaning results | Incorrect temperature or time settings | Review current settings | Adjust settings based on contamination type |
| Error Code Displayed | System malfunction | Refer to user manual | Reset the device or contact support |
Frequently Asked Questions
What is the optimal temperature for cleaning with the YR05217?
The optimal temperature for cleaning with the YR05217 depends on the type of contaminants. Generally, a range of 50°C to 70°C is effective for most applications, but it is crucial to evaluate based on specific cleaning needs.
How can I ensure consistent cleaning results with the YR05217?
To ensure consistent results, always calibrate your cleaning settings based on the level and type of contamination. Regular maintenance and ensuring the ultrasonic cleaner is properly filled with the correct cleaning solution are also essential.
What types of cleaning solutions are compatible with the YR05217?
The YR05217 is compatible with a wide range of cleaning solutions, including water-based detergents, solvents, and specialized ultrasonic cleaning solutions. It’s important to select solutions that are suitable for the materials being cleaned.
How do I read the display on the YR05217?
The display on the YR05217 shows the current temperature and the operational time set for cleaning. Make sure to check these values before starting the cleaning process to ensure they align with the desired outcomes.
Can I use the YR05217 for sensitive materials?
Yes, the YR05217 can be used for sensitive materials, but it is essential to select the appropriate settings to avoid damage. Testing a small area or less valuable items first is a good practice.
What maintenance is required for the YR05217?
Regular maintenance includes cleaning the tank after use, checking for wear and tear on the components, and ensuring that the ultrasonic transducers are functioning correctly. Following the manufacturer's guidelines will prolong the lifespan of the device.
How does the YR05217 compare with other models?
The YR05217 offers a larger capacity and higher ultrasonic and heating power compared to previous models, making it suitable for more demanding cleaning tasks. It is particularly effective in professional and industrial settings.
