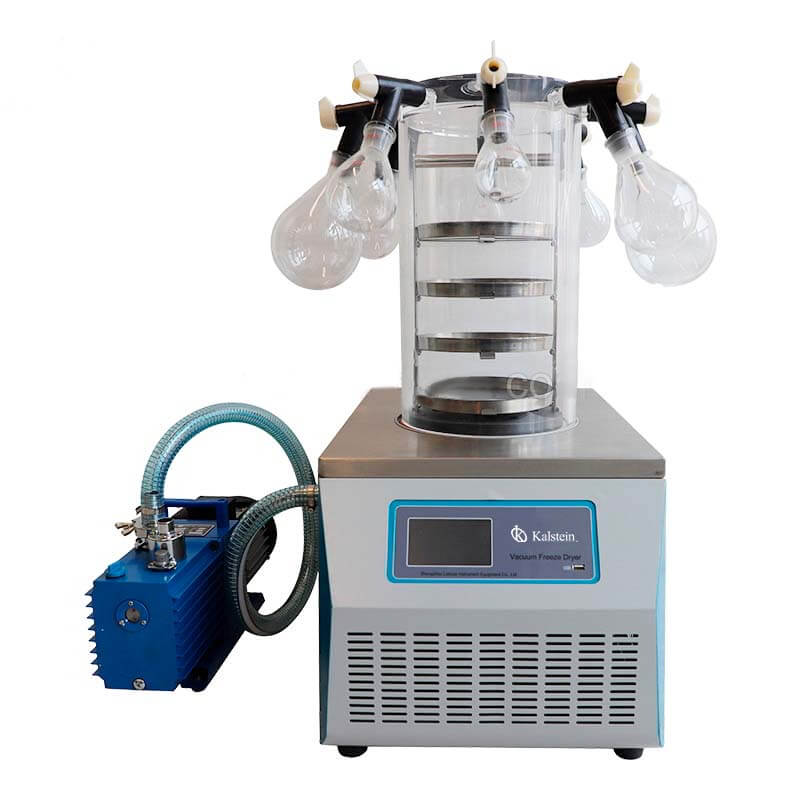

Understanding the Operating Principle and Scientific Foundation of the YR05188 Freeze Dryer
The YR05188 freeze dryer is a versatile and essential apparatus for laboratory experiments focused on freeze-drying processes. This article explores the scientific fundamentals behind its operation, helping users understand the principles that govern its functionality and effective use.
The Scientific Principles of Freeze Drying
Freeze drying, or lyophilization, is primarily based on the principle of sublimation, where ice transitions directly from a solid to a vapor state without passing through the liquid phase. This method preserves biological and chemical properties of samples by removing moisture under vacuum conditions.
In the YR05188 model, a sample is first frozen at a low temperature. The vacuum system then lowers the ambient pressure to allow for sublimation, which is carefully controlled to maintain sample integrity. The result is a dry product that can be rehydrated while retaining its original characteristics.
Key Components and Their Functions
The YR05188 features several critical components that work synergistically to ensure optimal freeze-drying conditions:
- Condenser: It cools the vapor produced from sublimation, facilitating its conversion back to a solid state. The condenser temperature can reach as low as -55°C, essential for effective moisture removal.
- Vacuum System: It creates and maintains a low-pressure environment, which is crucial for the sublimation process. This system ensures that the drying process occurs efficiently and quickly.
- Control Interface: The YR05188 is equipped with an LCD display that provides real-time feedback on operating parameters, allowing users to monitor and adjust conditions as needed.
Temperature and Pressure Relationships
The success of freeze drying with the YR05188 heavily depends on understanding the relationship between temperature and pressure. The phase diagram of water illustrates the conditions under which freezing, melting, and sublimation occur. By keeping the pressure low during the drying phase, ice sublimates directly, preventing the degradation of sensitive materials.
For optimal operation, the YR05188 operates in a vacuum with a pressure lower than 10 Pa, allowing even high moisture content samples to dry without compromising their integrity.
Operational Advantages of the YR05188
The design of the YR05188 offers multiple advantages, making it suitable for various applications across sectors:
- Versatility: The YR05188 can accommodate different types of samples, including pharmaceuticals, food products, and biological specimens.
- Efficient Energy Consumption: The low-noise compressor and efficient design ensure energy conservation while maintaining high performance.
- Long-Term Storage: Freeze-dried products are easier to store and transport. The removal of moisture significantly extends shelf life.
Recommended Practices for Operation
To maximize the efficiency of the YR05188 freeze dryer, users should follow these recommended practices:
- Always pre-cool the condenser before loading samples to ensure efficient moisture capture.
- Regularly calibrate the pressure and temperature settings to maintain optimal operational conditions.
- Utilize optional nitrogen valves if working with air-sensitive materials to prevent oxidation during drying processes.
Technical Specifications of the YR05188
| Parameter | Specification |
|---|---|
| Model | YR05188 |
| Lyophilization Area | 0.12㎡ |
| Condenser Capacity | 3-4 L/24h |
| Condenser Temperature | -55 °C (optional -80 °C) |
| Vacuum Degree | < 10 Pa |
| Tray Diameter | Ф200mm, 4 layers |
| Bulk Capacity | 1.2 L, 10 mm thickness |
| Vial Capacity (Φ12mm) | 920 pieces |
| Vial Capacity (Φ16mm) | 480 pieces |
| Vial Capacity (Φ22mm) | 260 pieces |
| Collector | with 8 ports |
| Flask Sizes | 1000 ml, 500 ml, 250 ml, 100 ml |
| Cooling Method | Air, with air currents, ambient temperature ≤25 °C |
| Voltage | 220 V, 50 Hz; 110 V, 50 Hz; 110 V, 60 Hz |
| Power | 700W |
| Dimensions | 460×625×(370+465) mm |
| Host Weight | 41 kg |
Frequently Asked Questions
What is the principle of operation for the YR05188 freeze dryer?
The YR05188 operates primarily on the principle of sublimation, where frozen water in a sample transitions directly into vapor without becoming liquid. This process is facilitated by low-pressure conditions achieved through a vacuum system.
How do I ensure optimal performance of the YR05188?
To maintain optimal performance, ensure that the condenser is pre-cooled before use, regularly calibrate pressure and temperature settings, and utilize optional nitrogen valves when necessary to handle sensitive materials.
What types of samples can be processed in the YR05188?
The YR05188 is versatile and can freeze-dry a variety of samples, including pharmaceuticals, biological specimens, and food products, making it suitable for diverse laboratory applications.
What are the energy requirements for the YR05188?
The YR05188 operates on a voltage of either 220 V or 110 V, depending on the configuration, with a power consumption of 700W, making it efficient for laboratory use.
How does the vacuum system in the YR05188 work?
The vacuum system in the YR05188 reduces ambient pressure to lower than 10 Pa, allowing for effective sublimation of ice from samples, which is a critical factor in the freeze-drying process.
Are there any optional features for the YR05188?
Yes, the YR05188 has several optional features including a nitrogen valve for air-sensitive samples, an eutectic point testing device, and a communication interface for data connectivity.
What is the expected lifespan of the YR05188 freeze dryer?
The expected lifespan of the YR05188 is typically extensive when maintained properly. Regular service intervals and monitoring of operational parameters can extend its functional life significantly.
